System Memory - DFI 865PE-ALE User Manual

2
Hardware Installation
Warning:
. .
.
.
.
.
.
.
Electrostatic discharge (ESD) can damage your system board,
processor, disk drives, add-in boards, and other components. Perform
the upgrade instruction procedures described at an ESD workstation
only. If such a station is not available, you can provide some ESD
protection by wearing an antistatic wrist strap and attaching it to a
metal part of the system chassis. If a wrist strap is unavailable,
establish and maintain contact with the system chassis throughout
any procedures requiring ESD protection.

2.2 System Memory

The system board supports DDR SDRAM DIMM. Double Data
Rate SDRAM (DDR SDRAM) is a type of SDRAM that doubles the
data rate through reading and writing at both the rising and falling
edge of each clock. This effectively doubles the speed of operation
therefore doubling the speed of data transfer.

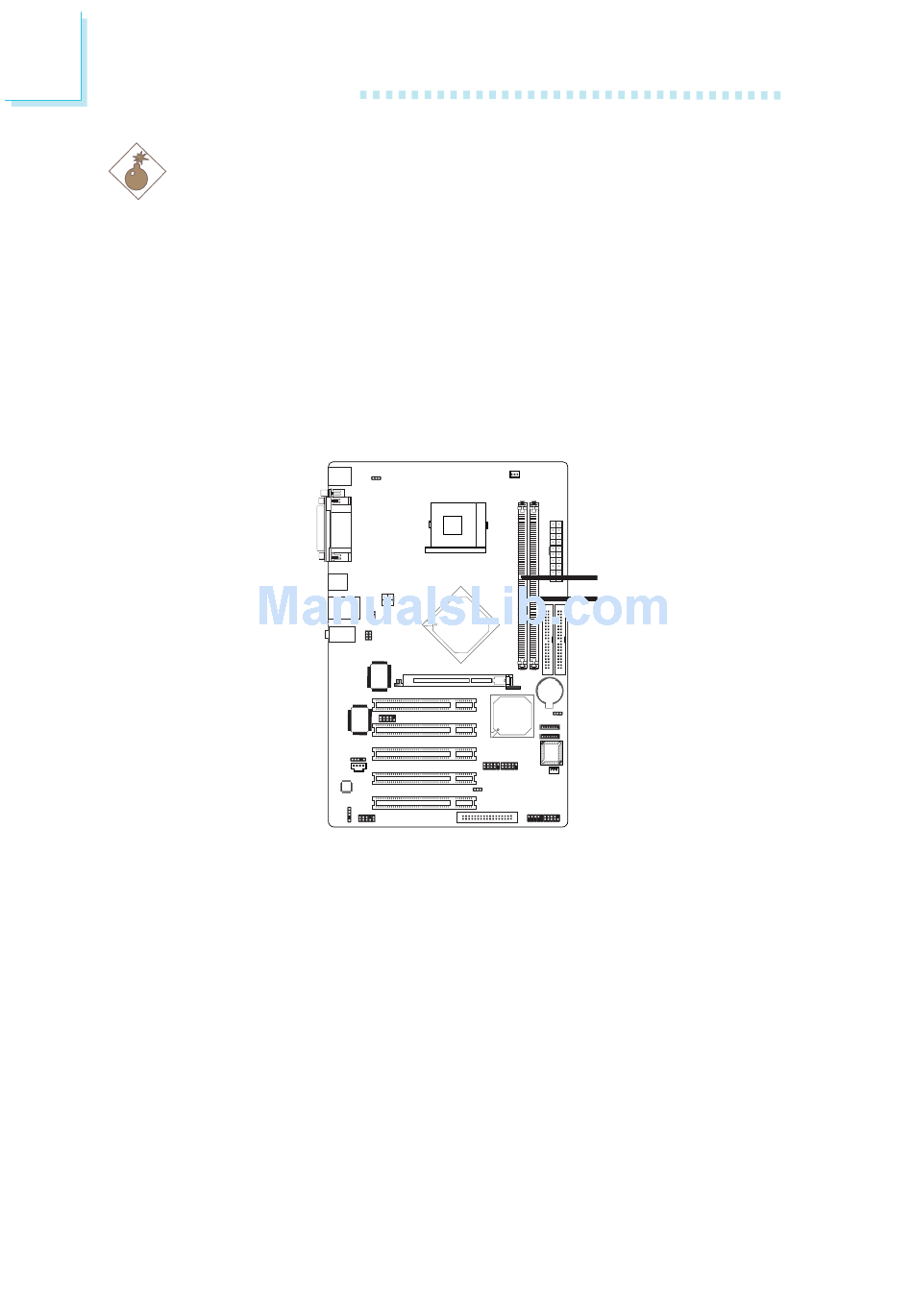

The two DDR DIMM sockets are divided into two channels and
support the following memory interfaces.
Single Channel (SC)
Data will be accessed in chunks of 64 bits (8B) from the
memory channels.
16
DDR 1
DDR 2
