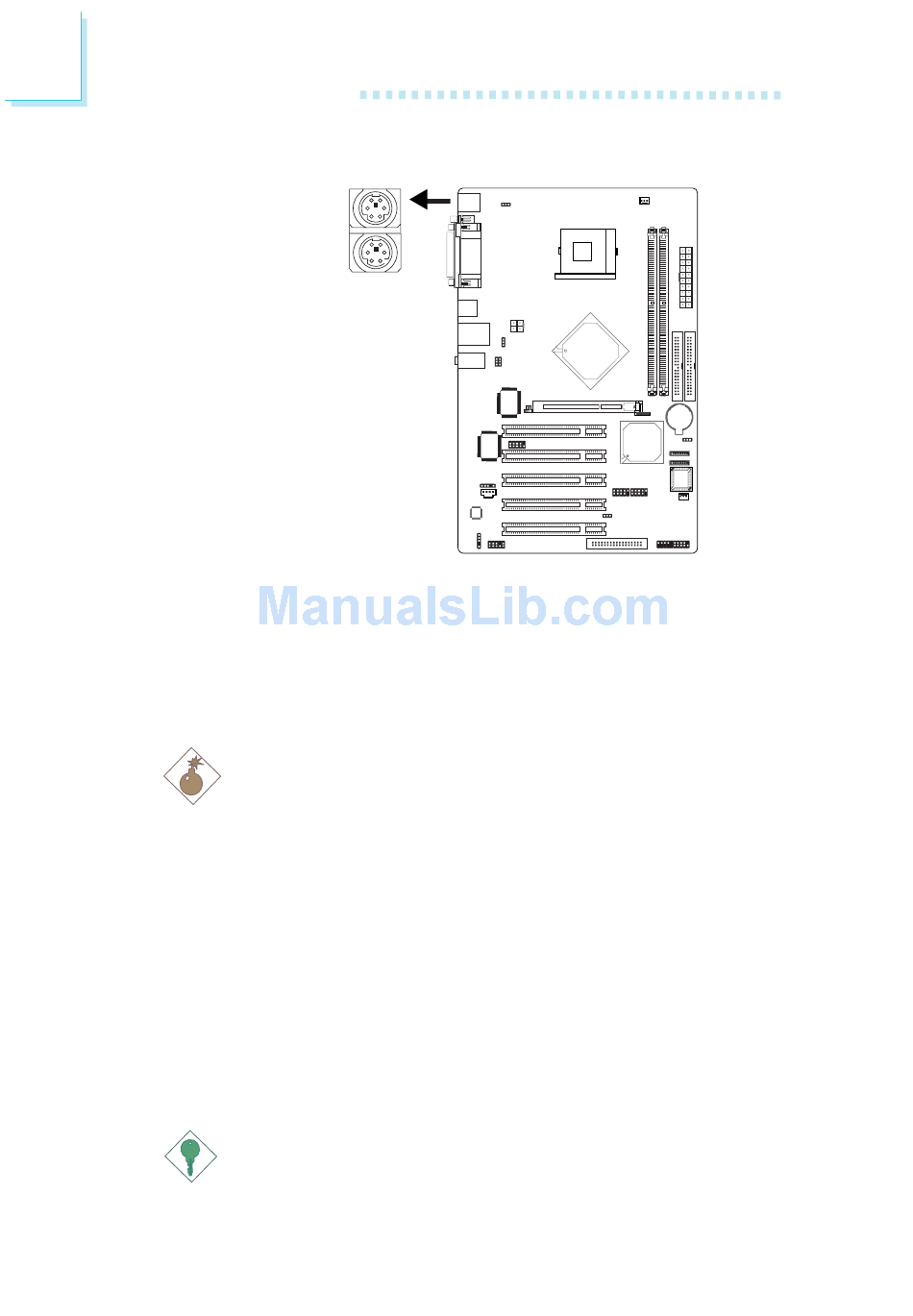

2.5.1 PS/2 Mouse and PS/2 Keyboard Ports
The system board is equipped with an onboard PS/2 mouse
(Green) and PS/2 keyboard (Purple) ports - both at location CN1
of the system board. The PS/2 mouse port uses IRQ12. If a mouse
is not connected to this port, the system will reserve IRQ12 for
other expansion cards.
.
.
.
.
.
.
Wake-On-PS/2 Keyboard/Mouse
The Wake-On-Keyboard/Mouse function allows you to use the
keyboard or mouse to power-on the system. To use this function:
•
BIOS Setting:
Configure the PS/2 keyboard/mouse wake up function in the
Power Management Setup submenu of the BIOS. Refer to
chapter 3 for more information.
30
PS/2 Mouse
PS/2 Keyboard
Warning:
.
.
Make sure to turn off your computer prior to connecting or
disconnecting a mouse or keyboard. Failure to do so may
damage the system board.
Important:
The 5VSB power source of your power supply must support
≥ 720mA.
