Perlick Signature Series Installation Manual page 9

Bearing in
door top hinge
bracket
Door bottom bracket
Orientation
BOTTOM VIEW

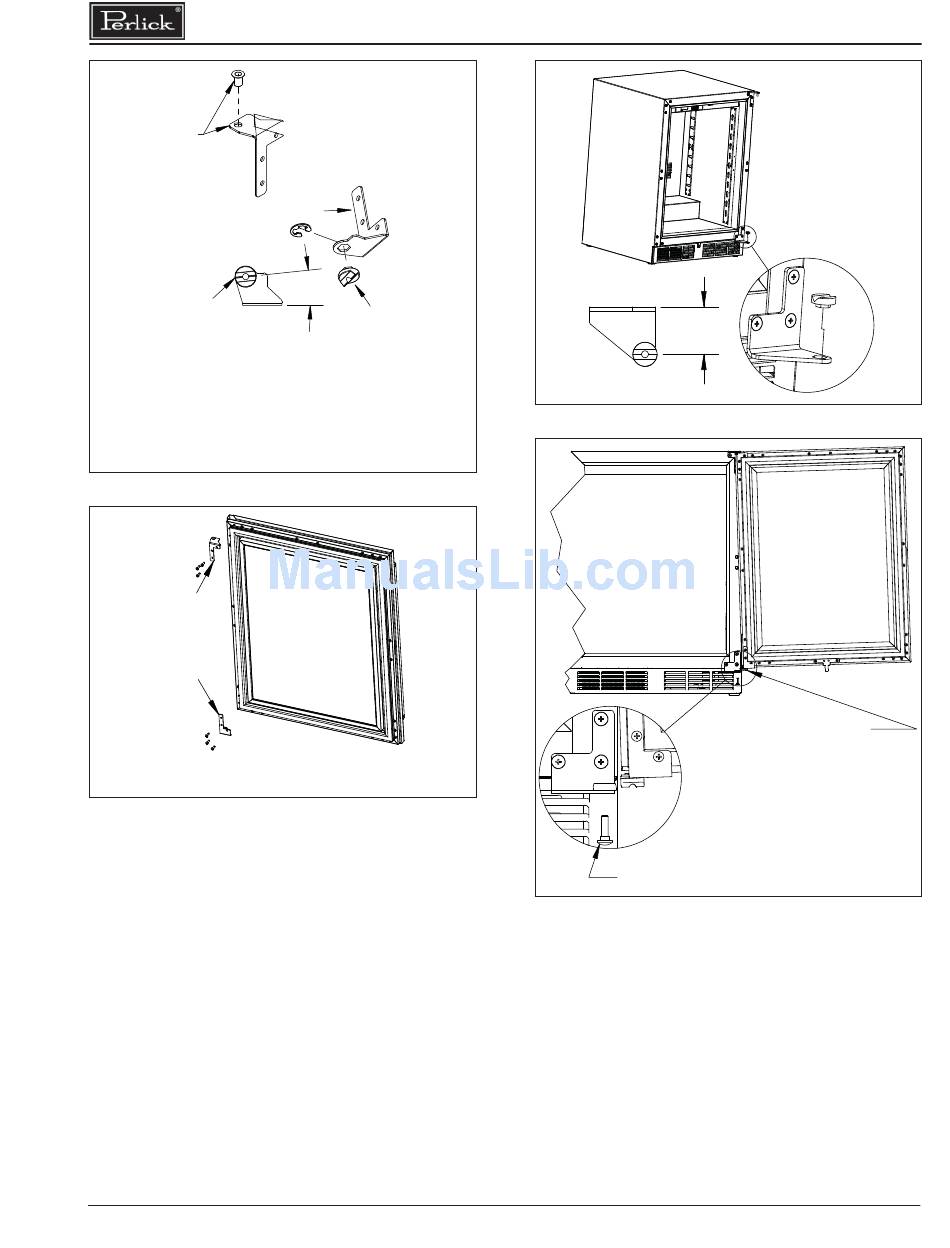

Figure 11. Bearing and V-Block
Top hinge
and screws
Bottom hinge
and screws
Figure 12. Door Hinges
13. Lift door assembly and insert top pin into
bearing. Move door toward cabinet and align
V-blocks (Figure 14).
14. Insert and tighten lower hinge pin to complete
assembly.
Printed in USA
6°
V-block
Signature Series Installation Manual
V-block parallel
to cabinet
TOP VIEW
Figure 13. Installing V-Block
Insert and tighten hinge pin
Figure 14. Installing Door
9
Insert top pin
into bearing
0213
