Perlick Signature Series Installation Manual page 8

5. Using the screws removed in step 3, install
the top and bottom hinge brackets from kit
(Figure 7).

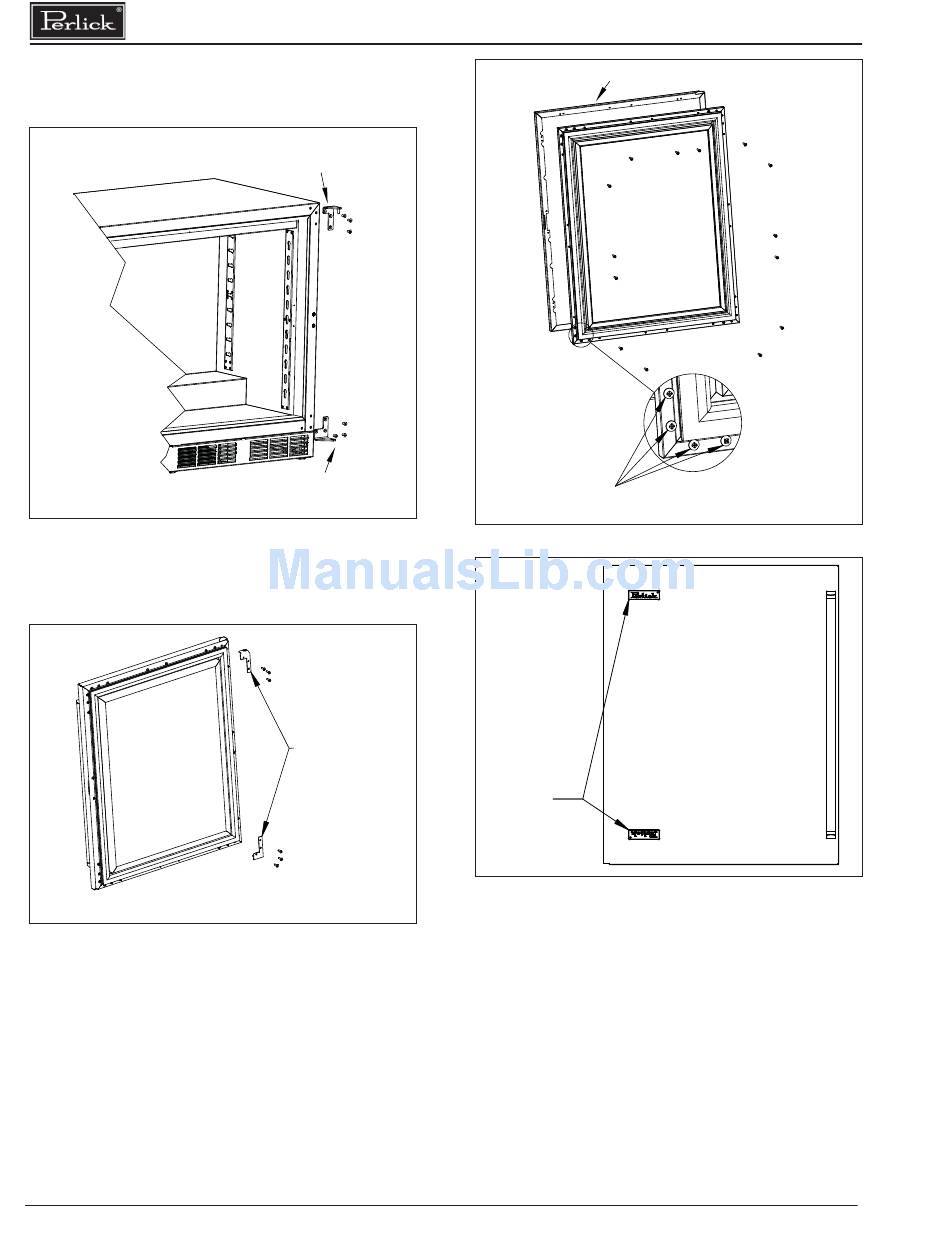

Figure 7. Hinge Installation
6. Remove the top and bottom door hinge
brackets and the push plunger brackets
(Figure 8). Retain the screws for later use.
Figure 8. Door Brackets
7. Remove the front panel from the door assembly
by removing the inner mounting screws, 4 per
side, from the perimeter of the door assembly
(Figure 9). Rotate the front panel 180°. The
top becomes the bottom. Reattach using the
same screws and mounting holes.
8. Remove the Perlick nameplate from the door
front using plastic putty knife (Figure 10).
Install new Perlick nameplate included in kit.
Printed in USA
Hinge brackets
and mounting
screws
Hinge brackets
and mounting
screws
Hinge brackets
and mounting
screws
8
Signature Series Installation Manual
Front panel
Corner screws need not be
removed to remove front panel
Figure 9. Removing Front Panel
Nameplate
Figure 10. Nameplate
9. Insert bearing into door top hinge bracket
(Figure 11).
10. Insert V-block into door bottom hinge bracket
and attach with e-clip (Figure 11). Note the
orientation of the V-block.
11. Attach the top and bottom door hinges and
push plunger using screws removed in step
6 (Figure 12).
12. Place lower V-block into lower cabinet hinge
with notch parallel to cabinet (Figure 13).
0213
