Perlick Signature Series Installation Manual page 6

NOTE: Improper shelf/drawer installation may not
actuate slide mechanism.
Toe Plate Installation
Once the unit is secured in place, install the
louvered toe plate.
Secure the toe plate by snapping the latch into
the latch catch on the unit (Figure 3).
The toe plate must be
CAUTION
removed to service the
unit. The fl oor cannot interfere with removal.
The louvered sections must not be covered or
obstructed. Obstructions could prevent
proper air circulation which may damage the
unit.
NOTE: To achieve maximum performance, interior
louver openings and fan guard openings should
never be obstructed.
Latch
Strike
Latch

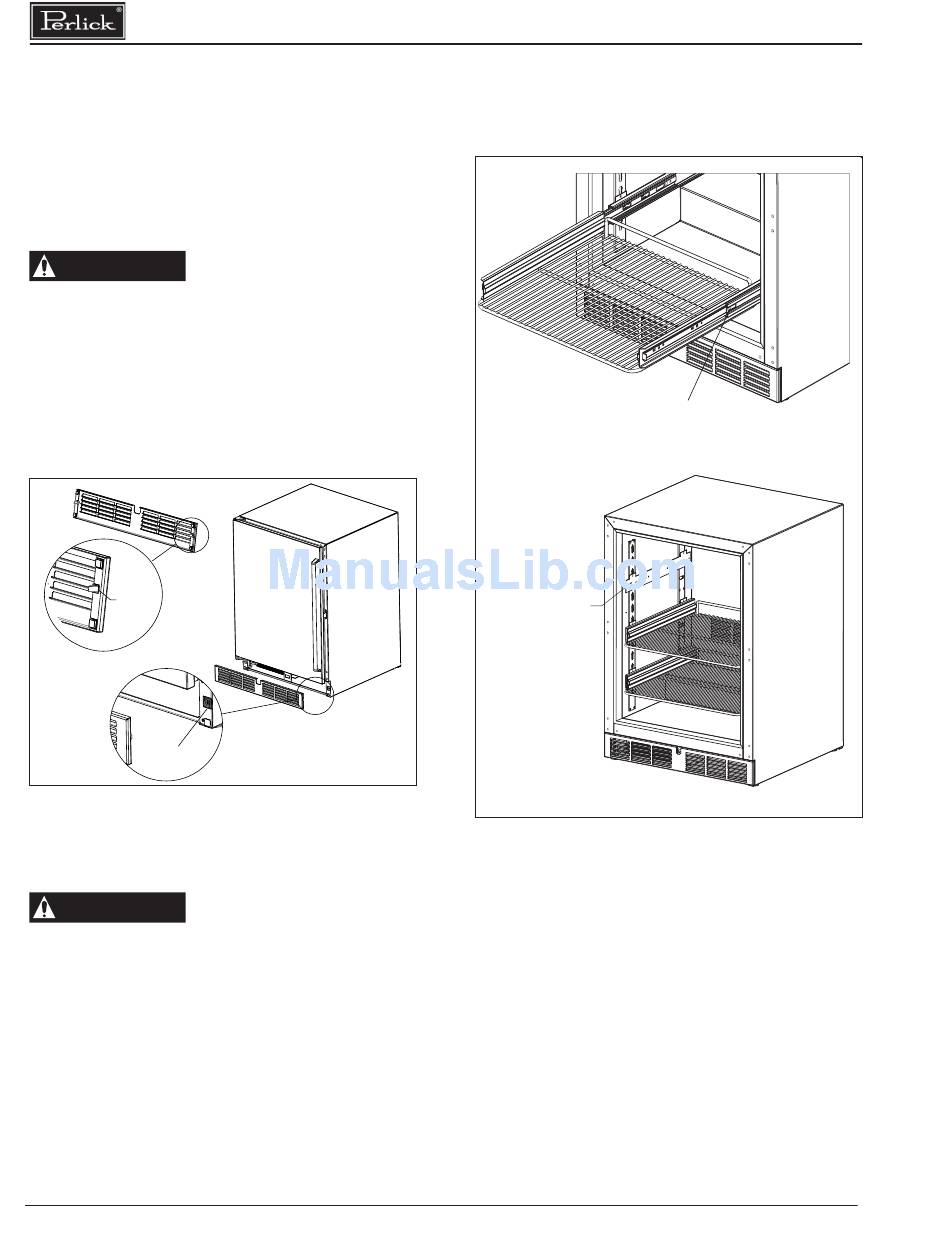

Figure 3. Toe Plate Installation
Shelving/Drawers Adjustment
See Figure 4.
Completely empty shelf or
CAUTION
drawer before removing.
1. Pull the shelf/drawer out to its furthest
position. Locate the tabs in the middle of both
extenders. Lift one tab up while pushing the
opposite tab down, and pull shelf/drawer out.
2. Reposition each bracket separately. Grasp
the middle of the bracket, pull the front end
up and out, then forward to remove it.
3. Place bracket at desired location. Push the
bracket rear hook into the rear mounting slot,
then set front of the bracket in the front slot.
Printed in USA
Signature Series Installation Manual
4. Repeat for other brackets.
5. Push extenders completely into brackets.
Align the shelf/drawer grooves with the
extenders and slide completely into the unit.
Lift one tab on extender UP while
pushing tab on opposite extender DOWN
and pull out to remove.
To remove brackets,
remove shelf, lift front
of bracket to disengage
the front key slot, then
pull forward to disengage
the rear key slot.
Figure 4. Shelving/Drawer Adjustment
Door Options
Perlick residential units offer a variety of door
panel design alternatives; solid stainless steel,
solid wood overlay, glass with stainless steel trim
and glass with wood overlay trim.
Solid stainless steel and stainless steel glass
doors are shipped from the factory with decorative
stainless steel panels and handles in place on
the unit.
Solid wood overlay and glass wood overlay doors
are designed to accept a decorative front panel to
match surrounding cabinetry and door handles.
The panel and door handles are supplied by the
customer.
