Optional Equipment - Perlick Signature Series Installation Manual

Handle Installation
Handle mounting on wood
CAUTION
overlay door should be
mounted on overlay panel only (not the door)
to avoid damage to the factory door.
1. Handle must be attached to overlay before
mounting overlay onto door. Mark rear of wood
overlay panel with handle fastening locations.
2. Drill through wood overlay panel at marked
locations taking care not to damage the wood
overlay panel.
3. Countersink screw heads so screw heads are
fl ush with back side of panel. Attach handle to
overlay panel.
Proper wood working
CAUTION
materials and equipment
should be used to avoid damage or errors in
workmanship.
Door Lock Installation
N O T E : C o n t a c t t h e f a c t o r y o r v i s i t
www.perlick.com/residential for full size lock
installation wood overlay panel layouts. Once on
the web site, select "Service and Support" from
the top menu bar and click on "Lock Installation".
Take care in choosing the correct template for
your specifi c model.
When installing to wood overlay, perform lock
installation before mounting wood overlay to
door.
1. See Figure 15. Attach mounting bracket to
wood overlay.
2. Insert lock body and attach with nut.
Wood Overlay Installation
Before beginning installation, check all components
for proper fi t and fi nish.
Scan the QR code to the
right with your smart
phone to watch a How-
To video on how to
install Wood Overlay
panels onto Perlick
doors, otherwise, follow
these instructions.
Printed in USA

OPTIONAL EQUIPMENT

Lock body
thick.
The solid wood overlay panel should not
weigh more than 10 lbs.
The glass wood overlay panel should not
weight more than 10 lbs.
N O T E : C o n t a c t t h e f a c t o r y o r v i s i t
www.perlick.com/residential for full size wood
overlay panel layouts. Once on the web site,
select "Service and Support" from the top menu
bar and click on "Wood Overlay Templates". Take
care in choosing the correct template for your
specifi c model.
NOTE: The optional lock and handle must be
installed to the overlay PRIOR to mounting the
wood overlay to the door.
1. With the unit secured in position, open the
2. Loosely attach four corners of overlay panel to
3. Check for overall wood overlay panel fit,
10
Signature Series Installation Manual
Mounting bracket
Nut

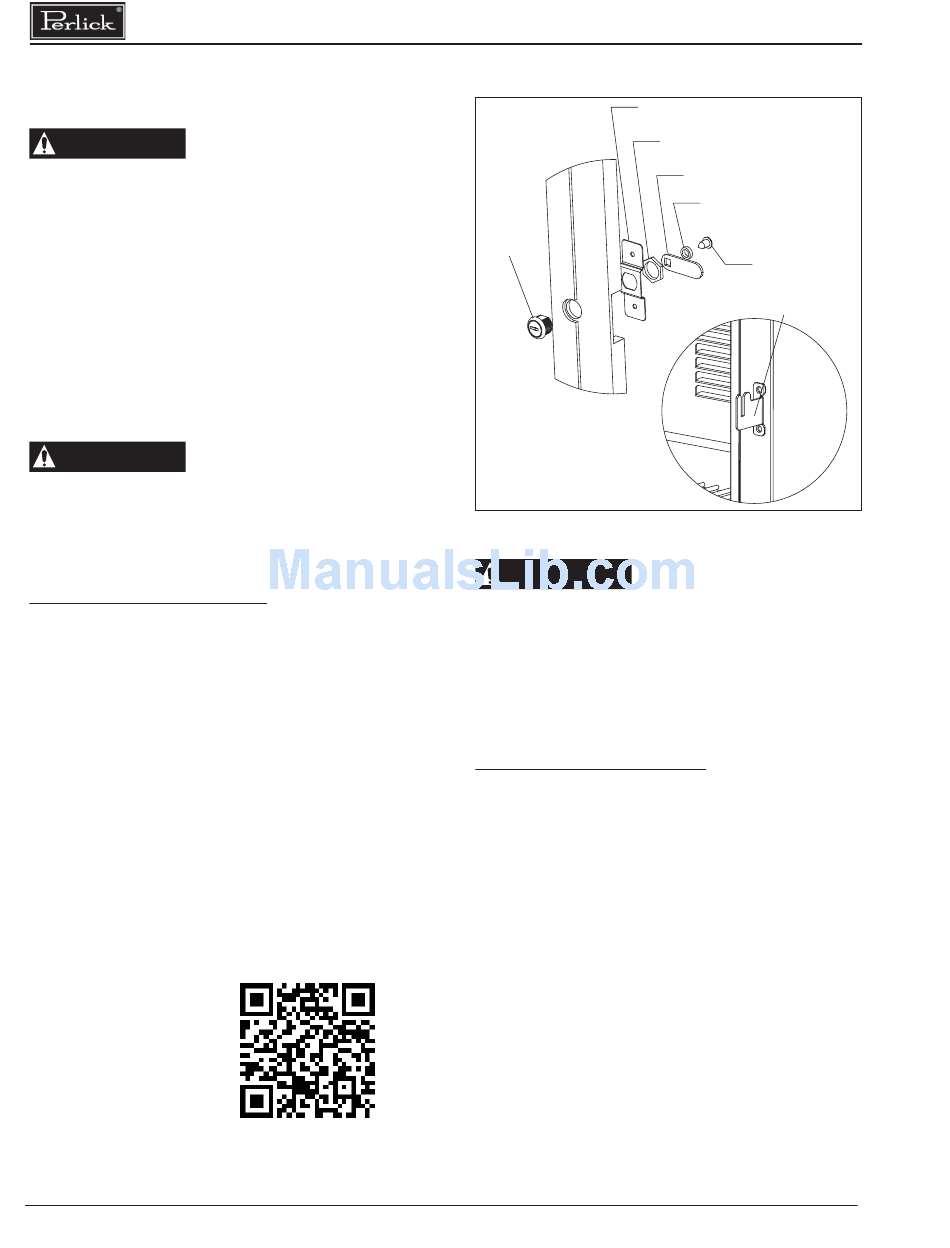

Figure 15. Installing Door Lock
All overlay doors require a
CAUTION
trim panel of at least 3/4"
door and make sure panel pre-drilled holes
align with door frame holes.
the door using #10 x 1" wood screws, installed
through the door frame from the rear.
position and function. Make minor adjustments
as necessary. When panel is properly aligned,
Lock strike
Lockwasher
Screw
Lock bracket
