V300 Series
IP Phone
Firmware v1.00
Edition 3, 11/2008
DEFAULT LOGIN DETAILS
IP Address:
Username:
Password:
CONTENTS
ENGLISH
РУССКИЙ
www.zyxel.com

QUICK START GUIDE

http://192.168.5.1
admin
1234
3
139
Copyright
2008 ZyXEL Communications Corporation
C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZyXEL Communications V300

Summary of Contents for ZyXEL Communications V300

  • Page 1: Quick Start Guide

    V300 Series QUICK START GUIDE IP Phone Firmware v1.00 Edition 3, 11/2008 DEFAULT LOGIN DETAILS IP Address: http://192.168.5.1 Username: admin Password: 1234 CONTENTS ENGLISH РУССКИЙ www.zyxel.com Copyright 2008 ZyXEL Communications Corporation...

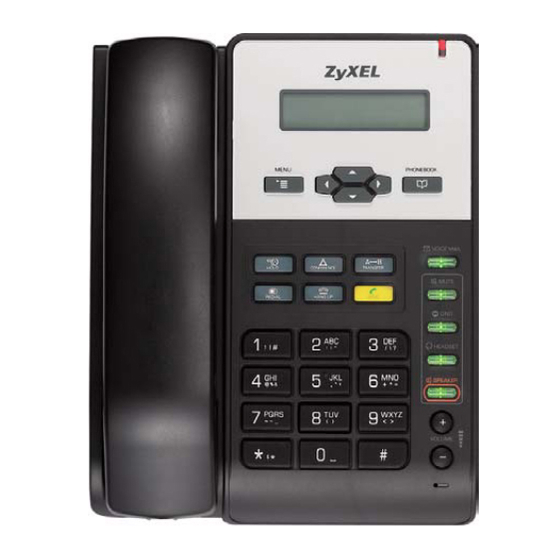

  • Page 3 This Quick Start Guide covers the following models: • V300: IP Phone. • V301: IP Phone with Power over Ethernet (PoE). This Quick Start Guide shows you how to set up and use your V300. It includes the following sections: •...

  • Page 4: Hardware And Connections

    Hardware and Connections...
  • Page 5 SIP account you want to use to make calls. PHONEBOOK Use this to display the list of contacts stored in the V300. If there is no contact stored in the V300, the message “Phonebook is empty” displays.
  • Page 6 Making Hardware Connections...
  • Page 7 PoE. 2. PC (optional): Use an Ethernet cable to connect your computer to the PC port on the V300 to access your network through the V300, or to configure the V300 using the web configurator (see your User’s Guide for information on using the web configurator).
  • Page 8 V301 Only: Power over Ethernet (Optional) Power over Ethernet (PoE) is the ability to provide power to your V301 via an 8-pin CAT 5 Ethernet cable, eliminating the need for a nearby power source. A PoE injector (not included) is also needed to supply the Ethernet cable with power.

  • Page 9: Initial Configuration

    Set Up Your Voice Account The phone does not need to be connected to a computer to do this. However, if you want to configure your V300 using a computer, see your User’s Guide for information. When entering information, use the # key to cycle between uppercase (ABC), lowercase (abc), symbol (;:”) and number (123)
  • Page 10 Automatically on page 13. Entering Letters, Numbers and Symbols When you enter information into the V300 (when setting up PPPoE, for example) you may need to enter different kinds of characters. The alphanumeric keypad has four input modes: Numeric, Uppercase Alphabet, Lowercase Alphabet, and Symbol.
  • Page 11 ENGLISH Set Up PPPoE 1. If you were given a username and 4. Setting password, press in the Adv PPPoE(Off) Setting menu and press 2. Press to enable PPPoE. 1. PPPoE: 3. Scroll down to Username (press 2). 2. Username 4.
  • Page 12 Set Up a Static IP Address 1. If you have an IP address to use, 4. Setting press in the Adv Setting menu. StaticIP (Off) 2. Press to access the menu. 1. Static IP 3. Press again to activate Static IP. 1.
  • Page 13 ENGLISH Get an IP Address Automatically The V300 is set to get an IP address automatically by default. 1. If you have neither a username and 4. Setting password nor an IP address to use, DHCP(Off) press in the Adv Setting menu.
  • Page 14 4. Make sure the SIP account is 1. SIP1 Active active. When the SIP account is active, the V300 tries to register the account on the network. If the menu that displays shows On, then your SIP account is already active - press and skip on to step 5.
  • Page 15 5 Reg Addr This is the IP address of the server your VoIP service provider uses to register the V300. If your VoIP service provider did not give you a specific SIP register server address, enter the SIP Serv address again.
  • Page 16 The lower line of the LCD displays your SIP number (“827610”, in this example) if it has registered successfully. 7. See section for how to test your V300’s configuration by making a call. If your SIP account does not register successfully (No Reg is still displayed in the main screen) or you cannot make a call, check your connections and re-enter your SIP settings.

  • Page 17: Phone Operation

    ENGLISH Phone Operation This section describes how to use your V300’s basic telephone functions. MAKING A CALL Pick up the handset. The LCD screen displays Line 1 Dial:. Check that you can hear a dial tone. Enter the number you want to call.

  • Page 18: Ending A Call

    • If you are using the internal speakerphone, press the SPEAKER key. • If you are using an external headset, press the HEADSET key. For more information on the V300’s telephone functions, see the hardware chapter in your User’s Guide. Viewing a Product’s Certification(s) 1.
