Windhager VarioWIN Quick Manual

Quick guide

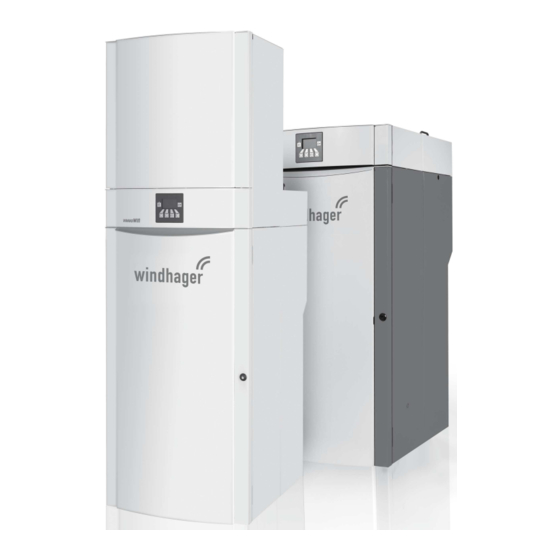

VarioWIN pellet central heating boiler
InfoWINplus

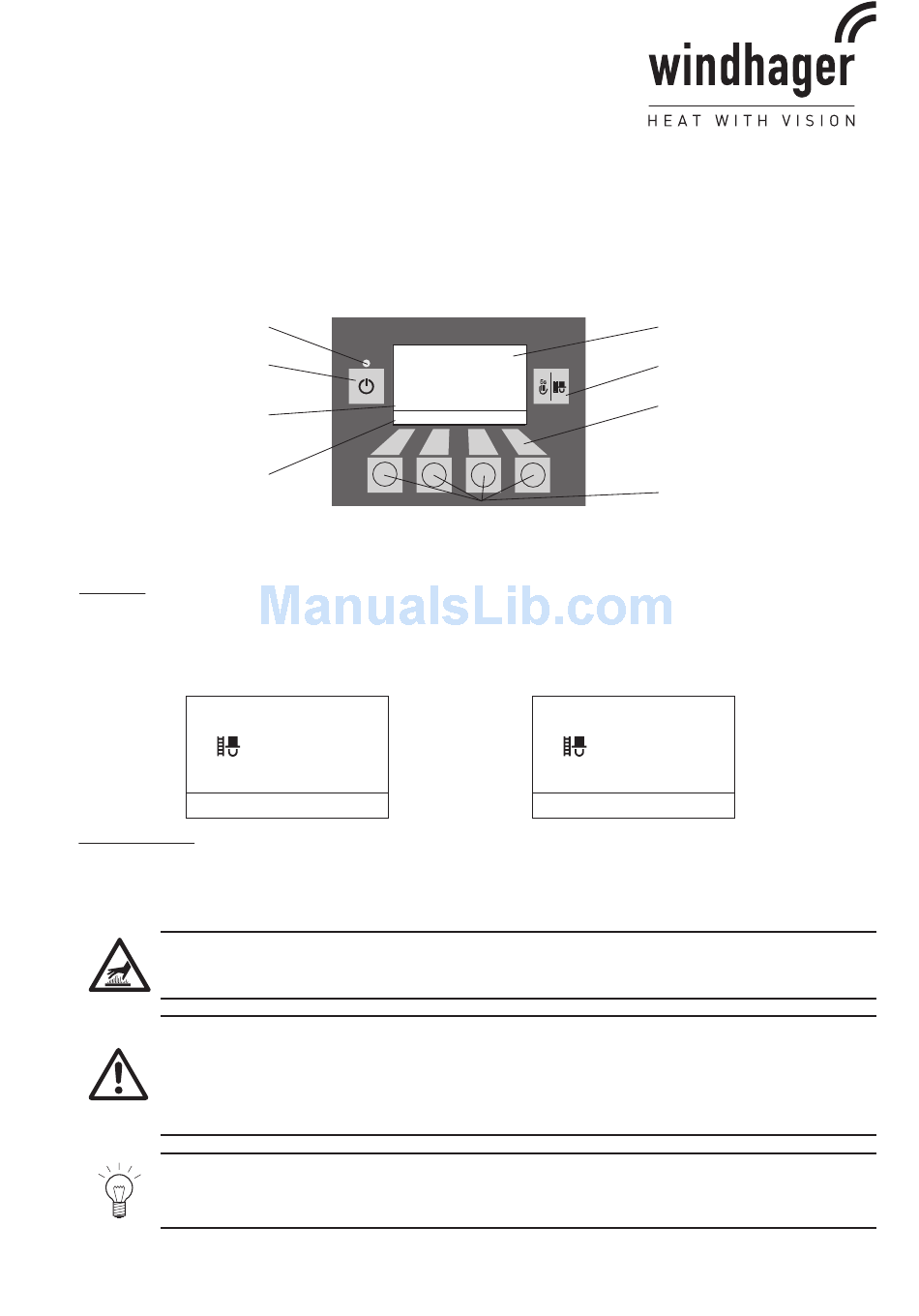

The lighting/display is initially switched on for 10 min. by briefly pressing a button. The corresponding function is
then started by pressing the button again.
A brief explanation of the most important functions of the operating unit:
Signal lamp (LED)
„Operation" – green
ON/OFF button
Operating phases are displayed
here, including Standby, Burner
OFF, etc.
Menu line

Chimney sweeper function

Starting: Briefly press the Manual operation / chimney sweeper funktion button (the lighting/display is switched
on), press the button again briefly, the boiler temperature is set to about 60 °C for 45 min.
Pressing the corresponding menu button enables the boiler to be operated with 30 % (= part load) or 100 % output.
The operating time is reset to 45 min. when the Manual operation / chimney sweeper function button is pressed
again.
Chimney sweeper func.
Power 100%
(Symbol flashes)
(Operating phases)
30%
Ending function: Press the Cancel button or automatically after about 45 minutes.
Removing ash and cleaning boiler and burner
Warning of hot surface: risk of burns!
Before touching these surfaces, you must switch off the boiler and let it cool.
Attention!
Do not open the combustion chamber door during operation. Always switch the boiler off first with
the ON/OFF button and wait until burnout mode has finished.
Risk of fire if ash hasn't cooled! Store ash in lockable and non-combustible container on non-
combustible base for at least 48 hours.
Note!
The ash may be loaded with heavy metals. Heavy metals may affect soil fertility. Ash is not there-
fore suitable as a fertiliser and should be disposed of with residual waste.
07/2012 092948/02
Boiler temperature
Standby
Info
45 min
42
°C
Cancel 100%
38
°C
5s
Menu
RESET
Chimney sweeper func.
Power 30%
(Symbol flashes)
(Operating phases)
30% Cancel 100%
Full-text display
(illuminated display)
Manual operation / flue cleaning
function
Assignment of buttons to
their specific function
Menu buttons
45 min
42
°C
