Hamlet DEFRA Installation And User Manual page 9

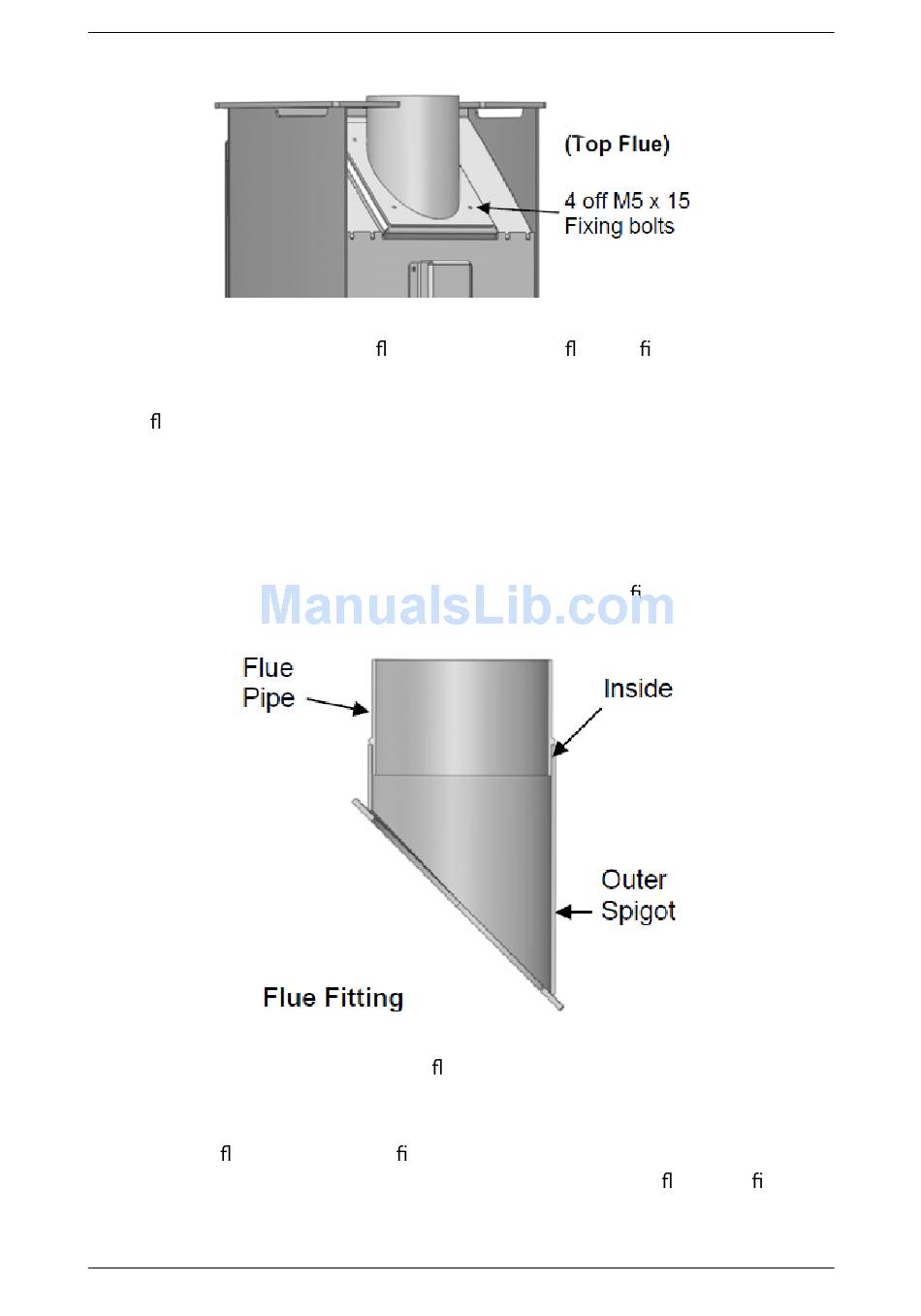

Figure 2: Fitting the ue outlet for a top ue con guration.
The ue pipe assembly is secured in place with four M5 bolts (supplied). Tighten
bolts diagonally and evenly to ensure full compression of the gasket but do not
over tighten.
Place appliance on the hearth and make sure that it is level and does not rock.
Connect the chimney ensuring all joints are sealed with re cement.
Figure 3: Fitting the ue pipe inside the spigot.
Note : The ue pipe must be tted inside the outlet spigot. Failure to do so
could result in the spillage of condensation running down the ue, (see gure 3)
