Messoa HCR176 Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

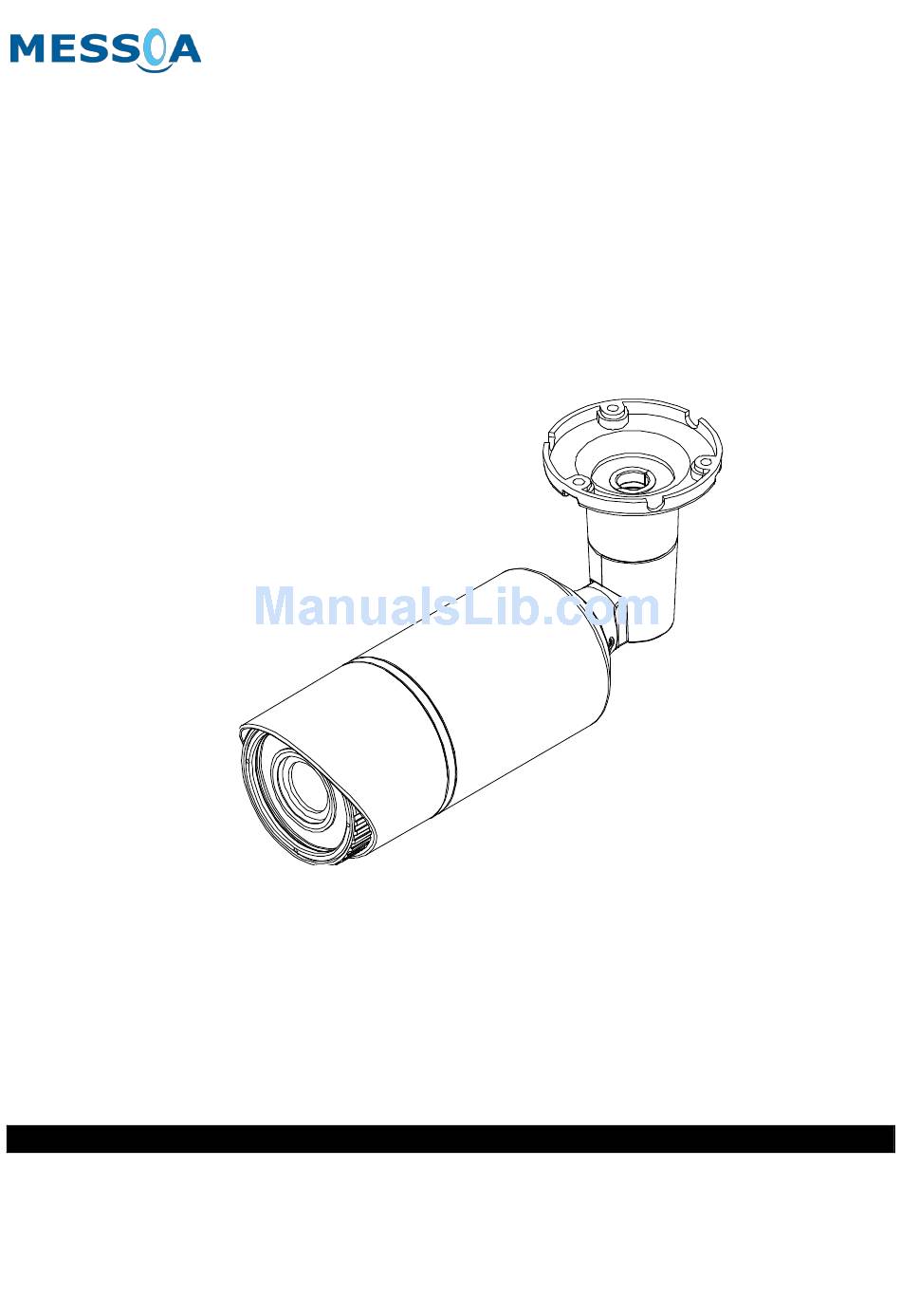

AHD 1080P Outdoor Bullet Camera

Quick Start Guide

A.1
Before attempting to connect or operate this product, please read these instructions carefully and save this
manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCR176 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Messoa HCR176

Summary of Contents for Messoa HCR176

  • Page 1: Quick Start Guide

    AHD 1080P Outdoor Bullet Camera Quick Start Guide Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.

  • Page 2: Fcc Compliance Statement

    Important Safety Information FCC Compliance Statement The equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. The limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 3: Table Of Contents

    Contents 1. Introduction ..............................3 1.1 Before You Begin.............................3 1.2 Unpack Everything ..........................3 1.3 Dimensions .............................3 1.4 Names of Camera Parts ..........................4 1.5 Routine Maintenance..........................4 2. Installation ................................5 3. OSD Settings..............................6 3.1 Lens ................................6 3.2 Exposure ..............................6 3.3 Backlight..............................7 3.4 White BAL ...............................7 3.5 Day &...

  • Page 4: Introduction

    1. Introduction The AHD 1080P outdoor bullet camera is ideal for indoor & outdoor installation. They provide flexible installation on a ceiling or wall even at an angle. 1.1 Before You Begin Please read this manual carefully before you install the bullet camera. Keep this manual for future reference. 1.2 Unpack Everything Check that the items received match those listed on the order form and packing slip.

  • Page 5: Names Of Camera Parts

    1.4 Names of Camera Parts Figure 1-2: Camera Connections BNC Video Connector Power Connector (DC12V/AC24V) AHD to CVBS Output Switching Button 1.5 Routine Maintenance Please use a soft and dry cloth to remove any fingerprint or dust to clean the housing. For more stubborn stains, use a cloth dampened with a small quantity of neutral detergent to wipe dry.

  • Page 6: Installation

    2. Installation 1. Mark 3 holes at the suitable position and insert the supplied anchors into the holes. Figure 2-1: Mounting the Bracket 2. Connect the camera power/video cable and external power/video cable together. Figure 2-2 Cable Connection 3. Adjust the camera to get a suitable position/angle, then tighten the screws with the screws provided and finish the installation.

  • Page 7: Osd Settings

    3. OSD Settings The AHD 1080P outdoor bullet camera provides COC function and users are able to control camera menu directly from AHD DVR by clicking buttons 3.1 Lens The DC LENS settings allow you to configure lens mode and IRIS speed. In the DC submenu, you can set the MODE as OUTDOOR or INDOOR, and adjust IRIS SPEED from 0 to 15.

  • Page 8: Backlight

    D-WDR: You can set the D-WDR as OFF, ON or AUTO. If ON is selected, you can adjust the level from 0 to 8. DEFOG: You can set the DEFOG as OFF or AUTO. In the AUTO submenu, position, size, and the defog gradation (0 to 2) are configurable.

  • Page 9: Special

    D&N AUTO 1. D → N (AGC) D&N EXT ------I--200 2. D → N (DELAY) I-------- 3 1. D → N (DELAY) 3. N → D (AGC) I-------- 3 ---I----- 80 1. BURST 2. N → D (DELAY) 4. N → D (DELAY) I-------- 3 I-------- 3 2.

  • Page 10: Adjust

    Set the DISPLAY status as INV, MOSAIC, COLOR, or OFF, and press the up/down/left/right button to define the position and size of the area. Set color and transparency for the privacy areas. Language: OSD support multiple languages. Options include ENG, CHN1, CHN2, GER, FRA, ITA, SPA, POL, RUS, POR, NED, TUR, KOR, JPN, HEB and ARB.
  • Page 11 Storage Humidity 70% max Mechanism 3 Axis 78.5 x 120.2 x 265.4 mm (3.1" x 4.29" x 10.45”) Dimension Weight 1050g (2.31 lb) approx. Protection Class IP66 HCR176-N5-MES Ordering Information HCR176-P5-MES Note: Product specifications are subject to change without prior notice.
