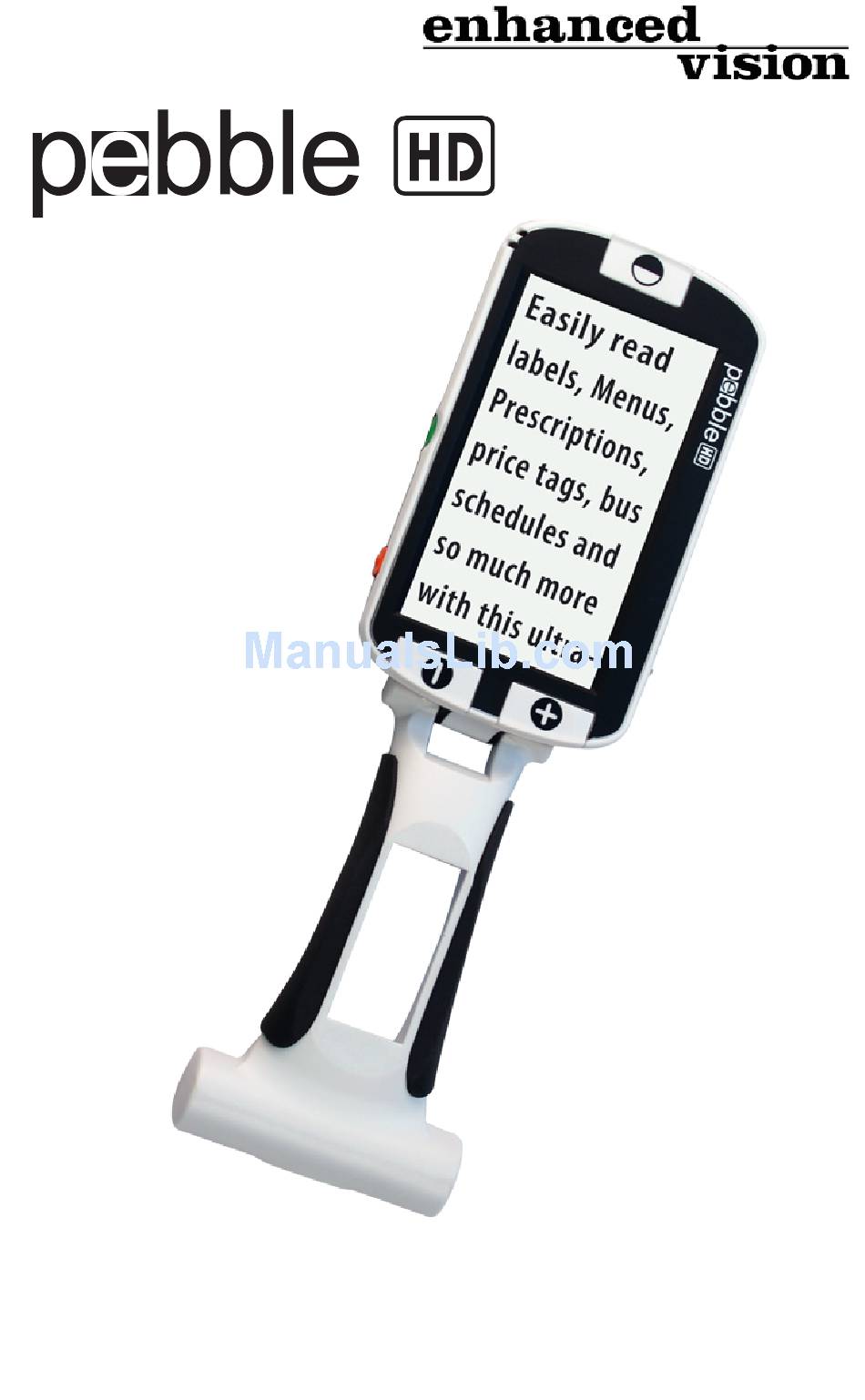

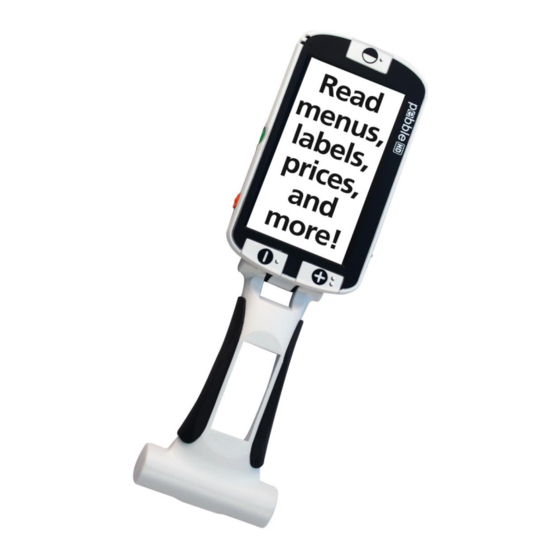

  • Page 1 Screen Size 4.3” Users Manual...
  • Page 2 Small enough to fit in your pocket or purse, the Pebble HD is the ideal companion to provide magnification, on the go. With the Pebble HD, you can easily read bank...
  • Page 3 FCC COMPLIANCE NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Table Of Contents

    Accessories ......8-9 Chapter 3: Using the Pebble HD Chapter 3: Using the Pebble HD Connecting the Power supply .
  • Page 5 Chapter 8: Other Enhanced Vision Products Chapter 8: Other Enhanced Vision Products Other Enhanced Vision Products ... . 35-37 Other Enhanced Vision Products ..35-37...

  • Page 6: Chapter 1: Safety Precautions

    Please refer all service to an authorized repair facility. Do not use the Pebble HD in, near, or around water. The Pebble HD is not designed to offer protection against contact with liquids of any kind.

  • Page 7: Chapter 1 Safety Precautions

    Pebble HD comes with a convenient carrying case for transport. To prevent the unit from being accidentally dropped and damaged, always return the Pebble HD to the carrying case while not in use. This product is intended to be used as a portable device.
  • Page 8 Pebble HD. In addition to this users guide, you’ll find the Pebble HD. In addition to this users guide, you’ll find the following items inside the box:...

  • Page 9: Chapter 2 Package Contents & Controls

    (International) (Domestic) Chapter 2 Package Contents & Controls...
  • Page 10 We highly recommend that you plug partially charged. We highly recommend that you plug your Pebble HD into wall power in order to fully charge your Pebble HD into wall power in order to fully charge the integrated battery prior to using the device for the the integrated battery prior to using the device for the first time.
  • Page 11 3.) You may now proceed to plug this into an available 3.) You may now proceed to plug this into an available outlet and begin to charge your Pebble HD magnifier. To outlet and begin to charge your Pebble HD magnifier. To...

  • Page 12: Charging The Battery

    AC Adaptor/power supply. mode after connecting the AC Adaptor/power supply. Note - If the battery is completely drained the Pebble HD will Note - If the battery is completely drained the Pebble HD will not turn on while charging (nor have any indicator lights) –...

  • Page 13: Chapter 3 Using The Pebble Hd

    LED indicator light: Black Background = Blinking Note: When your Pebble HD battery is getting low (Approximately 15 minutes before shutoff) a battery icon will be displayed for 2 seconds in 5 minute intervals. A ‘chime’ sound will be heard (if Text Voice Prompts is enabled) when the battery icon is displayed first time (Not each time).

  • Page 14: Turning The Power On/Off

    LCD display. Figure 1 appear on the LCD display. To turn off the Pebble HD, press and hold the [POWER] To turn off the Pebble HD, press and hold the [POWER] button again for 2 seconds or more. A short, confirmation button again for 2 seconds or more.

  • Page 15: Adjusting The Image Size

    Figure 3 the LCD. There are 5 ‘fixed’ zoom levels on the Pebble HD. Pressing and Holding the [+] or [-] SIZE button for more than 1 second activates a ‘continuous zoom’ mode. Chapter 3 Using the Pebble HD...

  • Page 16: Freezing An Image ( Snapshot Function )

    Chapter 3 Using the Pebble HD Chapter 3 Using the Pebble HD...
  • Page 17 ‘chime’ sound and the message “Saving” will be displayed (and announced if ‘Text Voice Messages’ is enabled) and the Pebble HD will return to normal operation mode. Recalling a Saved Snapshot Once you have a saved snapshot image you can ‘recall’ it and view it.
  • Page 18 PC. the instructions to upload your saved images to the PC. 1) Plug the USB cable into the Pebble HD (See Figure 1) and the 1) Plug the USB cable into the Pebble HD (See Figure 1) and the opposite end into the PC.

  • Page 19: Turning Led On/Off

    The time and date will also be announced (‘Clock Voice Messages’ must be enabled**) ** This feature of the Pebble HD will initially support the following languages: English, French and German. When additional language support for this feature is available a Firmware update will be needed (See Page 20).
  • Page 20 Firmware Update Firmware Update To keep your Pebble HD up to date visit our software To keep your Pebble HD up to date visit our software support page at: support page at: http://www.enhancedvision.com/support/software.html...
  • Page 21 Adjusting the Handle The Pebble HD features a unique adjustable handle, which can rotate, allowing you to easily magnify a wide variety of objects in various positions. Refer to the illustration below for more information on how the handle can be positioned according to your needs.
  • Page 22 (See Figures 2a & 2b) (See Figures 2a & 2b) Figure 2a Figure 2b Figure 2a Figure 2b Chapter 3 Using the Pebble HD Chapter 3 Using the Pebble HD...
  • Page 23 Open the handle at a slight angle, 180 or 210 for hands-free or desktop use. Adjusting the handle in this position is convenient when both hands are needed to perform other tasks. (See Figures 4a, 4b & 4c) Figure 4a Figure 4b Figure 4c Chapter 3 Using the Pebble HD...
  • Page 24 Adjusting LCD Brightness: Adjusting LCD Brightness: Your Pebble HD is set to the brightest level (5) on the LCD Your Pebble HD is set to the brightest level (5) on the LCD display when shipped from the factory. If desired, use the display when shipped from the factory.
  • Page 25 28 available. Use the following procedure to select between the 28 available color modes: 1) Enter the Pebble HD Menu by pressing the [MODE] and Red [FREEZE] buttons. 2) Rotate the [SCROLL Wheel] clockwise until Color Select is highlighted and press the [+] SIZE button.
  • Page 26 [+] SIZE button text/background combination and press the [+] SIZE button to select. The Pebble HD will now store this until changed. to select. The Pebble HD will now store this until changed. 5) Repeat steps 3 & 4 to change the pre-set Color Select 2 5) Repeat steps 3 &...
  • Page 27 Prompts The Pebble HD has four (4) distinct prompts that can be enabled/disabled individually in the Menu. 1. Press the [MODE] and Red [FREEZE] buttons to enter the Pebble HD Menu. 2. Rotate the [SCROLL Wheel] clockwise until ‘Prompts’ is highlighted.
  • Page 28 Product Information will display the technical Product Information will display the technical information of the Pebble HD and also allows you to information of the Pebble HD and also allows you to restore the Pebble HD back to its factory settings.

  • Page 29: Troubleshooting

    Try selecting different viewing modes to improve image quality (page 16) Video image on LCD display is too bright/dark The Pebble HD is designed to be used in moderate lighting conditions, preferably indoors. Bright Amber lighting (or direct sunlight) may produce shadows and/or reduce visibility.
  • Page 30 It is normal for the Pebble HD to risk of fire or damage. It is normal for the Pebble HD to risk of fire or damage.

  • Page 31: Specifications

    Physical Dimensions: ~ 5.5”L x 3.1”W x 1.25” H (with handle closed for Pebble HD 4.3”) ~ 10.2”L x 3.1”W x 1”H (with handle fully extended for Pebble HD 4.3”) Weight: ~ 7.1 oz. for Pebble HD 4.3” Magnification Ranges: 4.5x, 5.5x, 7.9x, 9.5x, 13.5x (For Pebble HD 4.3”)
  • Page 32 Battery: 1x 3.7V Li-Ion rechargeable battery, 3100mAh (included in 1x 3.7V Li-Ion rechargeable battery, 3100mAh (included in 1x 3.7V Li-Ion rechargeable battery, 3100mAh (included in Pebble HD) Pebble HD) Pebble HD) Estimated Charge times (using rechargeable batteries): Estimated Charge times (using rechargeable batteries): Estimated Charge times (using rechargeable batteries): ~4 hours (standby mode), ~ 5.5 hours (live mode), ~ 9.5 hours...
