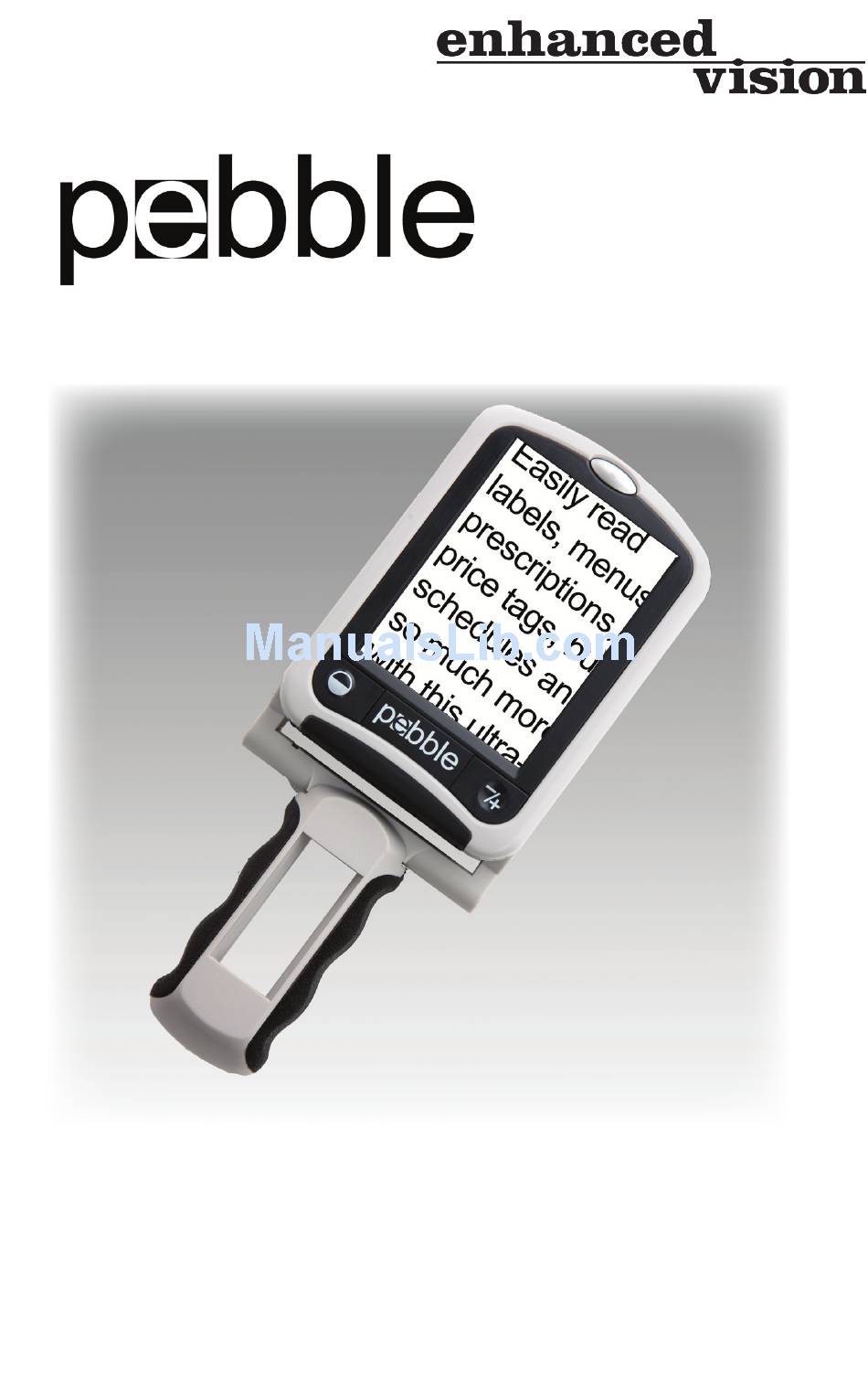

  • Page 1 Users Manual...

  • Page 2: About Your Pebble

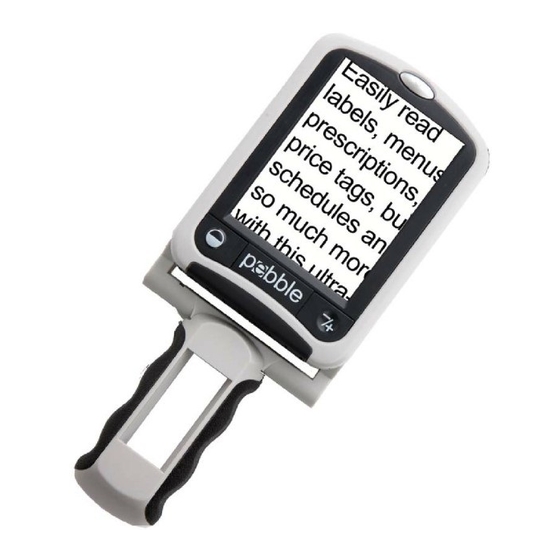

    About Your Pebble Congratulations on your purchase of the Pebble from Enhanced Vision. The Pebble is a handheld electronic video magnifier that you can take anywhere. Weighing less than 8 ounces, Pebble features a uniquely-designed folding handle and includes both near-viewing and table reading modes.
  • Page 3 FCC Compliance Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 This page intentionally left blank...

  • Page 5: Table Of Contents

    Table of Contents About Your Pebble.........Inside Cover Safety Precautions..........6-7 Package Contents & Controls......8-9 Using the Pebble..........10-17 Charging & Using Batteries........18-20 Tips for Using the Pebble........21 Advanced Features...........22-23 Troubleshooting..........24-25 Specifications...........26-27 Warranty............28-29 Other Enhanced Vision Products.......30-33 Contact Information..........33 Notes..............34-35...

  • Page 6: Safety Precautions

    Safety Precautions For your safety and to obtain the most benefit and life from the Pebble, please read these important safety precautions carefully. General guidelines for use: • Follow all warnings, cautions, and instructions marked on the product. • Do NOT attempt charging alkaline batteries with the Pebble.

  • Page 7: Safety Precautions

    Safety Precautions Transportation: • Pebble comes with a convenient carrying case for transport. To prevent the unit from being acci- dentally dropped and damaged, always return the Pebble to the carrying case while not in use. • This product is intended to be used as a portable device.

  • Page 8: Package Contents & Controls

    Package Contents & Controls Please refer to the illustrations on the next page to identify the package contents and controls of your Pebble. In addition to this users guide, you’ll find the following items inside the box: Pebble Wrist Strap (Lanyard) Carrying Case AC adaptor power supply (style may vary)

  • Page 9: Package Contents & Controls

    Package Contents & Controls...

  • Page 10: Using The Pebble

    Using the Pebble Power Options Your Pebble can be powered using: • The included AC adaptor/power supply • Rechargeable batteries (included) When using the Pebble for the first time, please power the unit using the included AC Adaptor/ power supply. This will ensure that the rechargeable batteries can fully charge, even while the Pebble is in operation.
  • Page 11 Using the Pebble Turning the Power On/Off Use the following procedure to turn the power of your Pebble On or Off: 1) Find the green, recessed POWER button located on the top side edge of your Pebble. (See Figure 1) Figure 1 2) Press and hold the POWER button to turn the Pebble on.
  • Page 12 Using the Pebble Selecting the Viewing mode: Use the following procedure to select the viewing mode of the image on the LCD display: 1) Find the MODE button located on the face of your Pebble (See Figure 1). Figure 1 2) Press the MODE button to continuously cycle through the 6 available viewing modes listed...
  • Page 13 Using the Pebble Freezing an Image (Snapshot function) If desired, you can take a temporary snapshot (freeze) an image on the display. You can also adjust the size and color modes after freezing an image. This feature is quite useful for reading price tags, prescriptions or other information that may need to be temporarily captured.
  • Page 14 Using the Pebble Adjusting LCD Brightness Your Pebble is designed to provide the brightest image possible on the LCD display when shipped from the factory. If desired, use the following procedure to manually adjust the brightness of the LCD display: 1) Find the small LCD brightness control slide switch located on the top side of your...
  • Page 15 Using the Pebble Adjusting the Handle The Pebble features a unique, adjustable handle that can both rotate and/or extend, allowing you to easily magnify a wide variety of objects in multiple settings. Refer to the illustration below for more information on how the handle can be positioned according to your needs.
  • Page 16 Using the Pebble Depending on your application, use the guidelines listed on the next two pages for more information on adjusting the handle for your particular magnification needs... Reading Position (fully closed) Close the handle completely into a folded position Adjusting the handle in this position is convenient for reading a book, pamphlet or other printed text.

  • Page 17: Using The Pebble

    Using the Pebble Writing Position (200˚ open) Open the handle completely until it is fully rotated. Hold the handle flush with your writing surface. The viewing screen will tilt upward leaving enough room to write. (See Figures 3a & 3b) Figure 3b Figure 3a Hands-Free/Desktop Position (30˚...

  • Page 18: Charging & Using Batteries

    Charging & Using Batteries Using Rechargeable Batteries Your Pebble includes two, rechargeable Nickel- Metal Hydride (NiMH) batteries that can be continuously charged inside the Pebble, even while the unit is in operation (see page 10). It is recommended to leave the unit connected with the included AC adaptor when the unit is not in use to maintain a continuous charge on the batteries.
  • Page 19 Charging & Using Batteries Opening & Closing the Battery Compartment 1) Close the handle and locate the battery compartment door (See Figure 1). LOCK UNLOCK Figure 1 2) Using your fingernail or small coin, press down and slide the latch downward to the “UNLOCK” position as shown.

  • Page 20: Charging & Using Batteries

    Charging & Using Batteries Battery Charging Procedure To charge the Nickel-Metal Hydride (NiMH) batteries inside your Pebble, simply connect the included AC adaptor/power supply as described on the bottom of page 10. You can continue to use the Pebble even while the batteries are being charged.

  • Page 21: Tips For Using The Pebble

    Tips for Using the Pebble Attaching the Wrist Strap (Lanyard) For added security, your Pebble includes a Wrist Strap (Lanyard) that can be attached, if desired. When using the Pebble in a portable setting, the included wrist strap will help to prevent your Pebble from accidently being dropped on the floor or other hard surface.

  • Page 22: Advanced Features

    Advanced Features Turning LED Lighting ON/OFF Your Pebble has built-in LED lighting to illuminate your reading material. By default, this lighting will turn ON automatically whenever the Pebble is powered on. It is also possible to turn OFF the built-in LED lighting, if desired. This may be useful when magnifying certain objects with a highly reflective surface, such as a glass medicine bottle or glossy photo.
  • Page 23 Advanced Features Static/Dynamic LED Modes There are two modes in which the built-in LED lighting of your Pebble can function, which can be set according to your own preferences: 1) Static LED Mode: In “static” mode, the built-in LED lighting of your Pebble maintains a constant intensity (brightness) to illuminate your reading material at all times.

  • Page 24: Troubleshooting

    Troubleshooting • No power to the unit • Can you power the unit using the included AC adaptor? (pages 10-11) • Is the power supply properly connected to a surge protector or an AC outlet (mains)? (page 10) • Are the correct batteries being used and do they need to be charged or replaced? (page 18-20) •...
  • Page 25 Troubleshooting • Batteries will not charge • Can you power the unit using the included AC adaptor? (pages 10-11) • Is the power supply properly connected to a surge protector or AC mains? (page 10) • Are the correct batteries being used and do they need to be charged or replaced? (page 18-20) •...

  • Page 26: Specifications

    Specifications Features: • Lightweight, portable design • ˚ adjustable handle • 6 user selectable viewing modes (Full Color, Black & White, Enhanced Positive, Enhanced Negative, Yellow on Blue, Yellow on Black) • 3 levels of magnification (5x, 7.5x, 10x)* • Image “Freeze”...

  • Page 27: Specifications

    Specifications Environment: • Operating Temperature : 32 ˚ – 122˚F (0˚ – 50˚C) • Storage temperature : -4 ˚ – 140˚F (-20˚ – 60˚C) Batteries: • 2 x 1.25V Nickel-Metal Hydride (NiMH) rechargeable batteries, Ultra-last rated, 2400 mAh (included in package) Estimated Charge times (using rechargeable batteries): ~3 hours maximum Estimated Usage Times (using rechargeable batteries):...

  • Page 28: Warranty

    Warranty Enhanced Vision Pebble Warranty Policy Enhanced Vision products are designed to give you the highest quality image, convenient features, ease of use and reliable service. The Pebble has been inspected and tested prior to shipping. Enhanced Vision warrants the Pebble against defects in material and workmanship under normal use for two years from the date of original purchase.

  • Page 29: Warranty

    Enhanced Vision representative or the Enhanced Vision warranty service center. If warranty service is required, please contact Enhanced Vision at (800) 440-9476 Monday through Friday, between 8 a.m. and 5 p.m. Pacific Standard Time (PST) to request a return authorization number.

  • Page 30: Other Enhanced Vision Products

    Other Enhanced Vision Products Jordy – Two Low Vision Systems in One! Head-worn system for distance, intermediate & near viewing. Four viewing modes for optimum visibility: Color, Black/White, Enhanced Positive and Enhanced Negative Magnification: 1X – 30X Jordy Docking Stand (optional)
  • Page 31 Other Enhanced Vision Products Merlin LCD – Easy to use! Merlin LCD is a video magnifier that pivots and swivels to the most comfortable viewing position. This product includes all the same features as the Merlin but with a sleek ergonomic design.
  • Page 32 Other Enhanced Vision Products Max - Powerful Magnifier A powerful, low-cost magnifier for reading. Connects to any TV in seconds. Available in either Full Color or Black & White versions. Magnification: 16X – 28X* *Maximum limit depends upon display size Acrobat –...

  • Page 33: Contact Information

    Carrying Cases Convenient cases for storage and transport of all Enhanced Vision products. Power Supplies Spare power supplies for your Enhanced Vision products. Contact information: Phone: (800) 440-9476 (US Office, toll free) Phone: (714) 465-3400 (US Office) Fax: (714) 374-1821 +44 (0)115 9442317 (UK Office) Web: www.enhancedvision.com...

  • Page 34: Notes

    Notes ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________...
  • Page 35 Notes ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________...
  • Page 36 For more information, please visit www.enhancevision.com. www.enhancedvision.com (800) 440-9476 (US Office, toll-free) +44 (0)115 9442317 (UK Office) Part # MAN-0700-00 October, 2009 Copyright © 2009 by Enhanced Vision. All rights reserved. Product specifications subject to change without prior notice.
