5360 IP Phone – User Guide

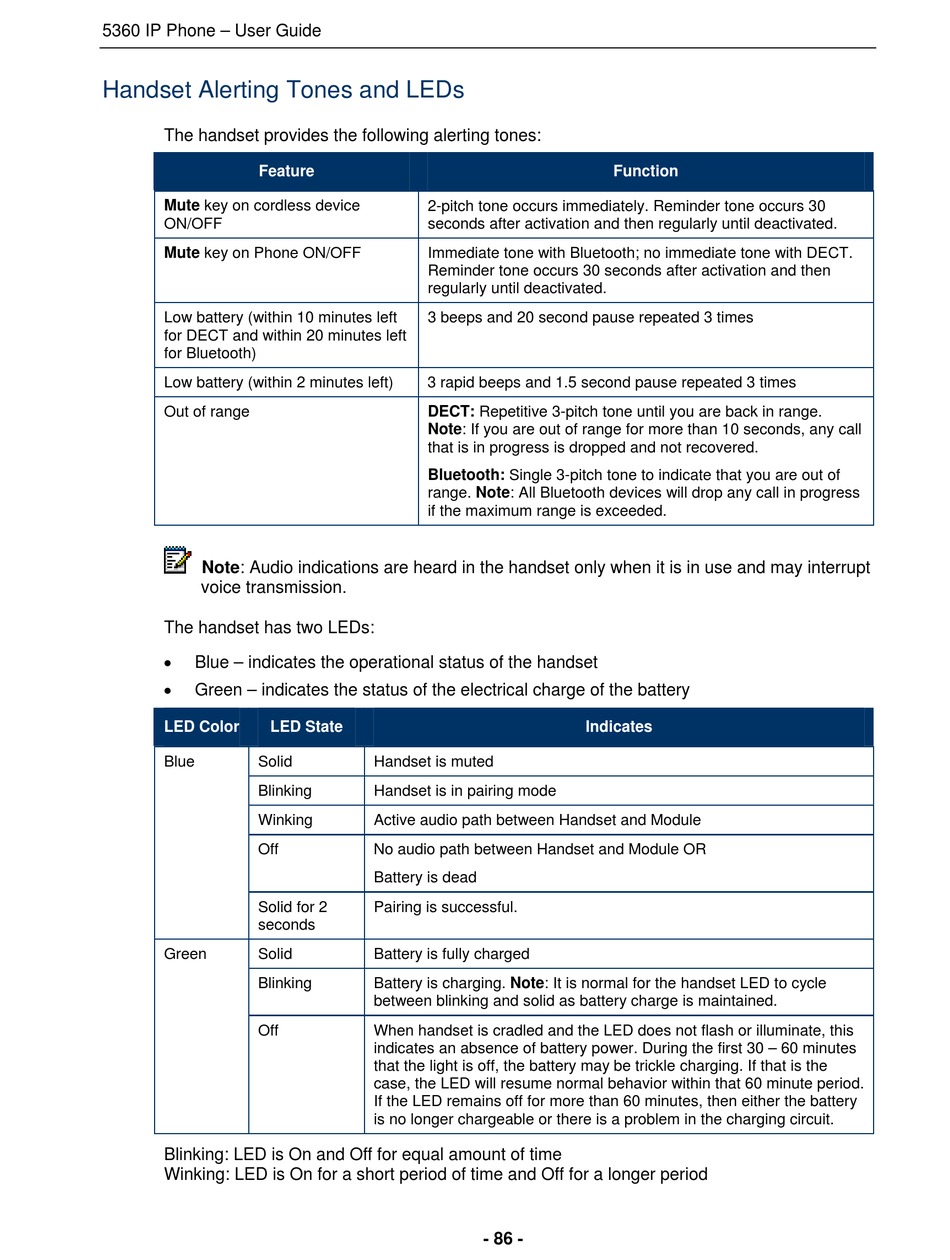

Handset Alerting Tones and LEDs

The handset provides the following alerting tones:
Feature
Mute key on cordless device
ON/OFF
Mute key on Phone ON/OFF
Low battery (within 10 minutes left
for DECT and within 20 minutes left
for Bluetooth)
Low battery (within 2 minutes left)
Out of range
Note: Audio indications are heard in the handset only when it is in use and may interrupt
voice transmission.
The handset has two LEDs:

Blue – indicates the operational status of the handset

Green – indicates the status of the electrical charge of the battery
LED Color LED State
Blue Solid
Blinking
Winking
Off
Solid for 2
seconds
Green Solid
Blinking
Off
Blinking: LED is On and Off for equal amount of time
Winking: LED is On for a short period of time and Off for a longer period
2-pitch tone occurs immediately. Reminder tone occurs 30
seconds after activation and then regularly until deactivated.
Immediate tone with Bluetooth; no immediate tone with DECT.
Reminder tone occurs 30 seconds after activation and then
regularly until deactivated.
3 beeps and 20 second pause repeated 3 times
3 rapid beeps and 1.5 second pause repeated 3 times
DECT: Repetitive 3-pitch tone until you are back in range.
Note: If you are out of range for more than 10 seconds, any call
that is in progress is dropped and not recovered.
Bluetooth: Single 3-pitch tone to indicate that you are out of
range. Note: All Bluetooth devices will drop any call in progress
if the maximum range is exceeded.
Handset is muted
Handset is in pairing mode
Active audio path between Handset and Module
No audio path between Handset and Module OR
Battery is dead
Pairing is successful.
Battery is fully charged
Battery is charging. Note: It is normal for the handset LED to cycle
between blinking and solid as battery charge is maintained.
When handset is cradled and the LED does not flash or illuminate, this
indicates an absence of battery power. During the first 30 – 60 minutes
that the light is off, the battery may be trickle charging. If that is the
case, the LED will resume normal behavior within that 60 minute period.
If the LED remains off for more than 60 minutes, then either the battery
is no longer chargeable or there is a problem in the charging circuit.
- 86 -
Function
Indicates
