Logo and Passwords

You can edit the logo that appears at the top of the OSD window. You can also edit the names and passwords
for the Administrator, Supervisor and 6 Users.
1. Edit the Logo and Passwords by choosing them from the Edit menu. See figures below.

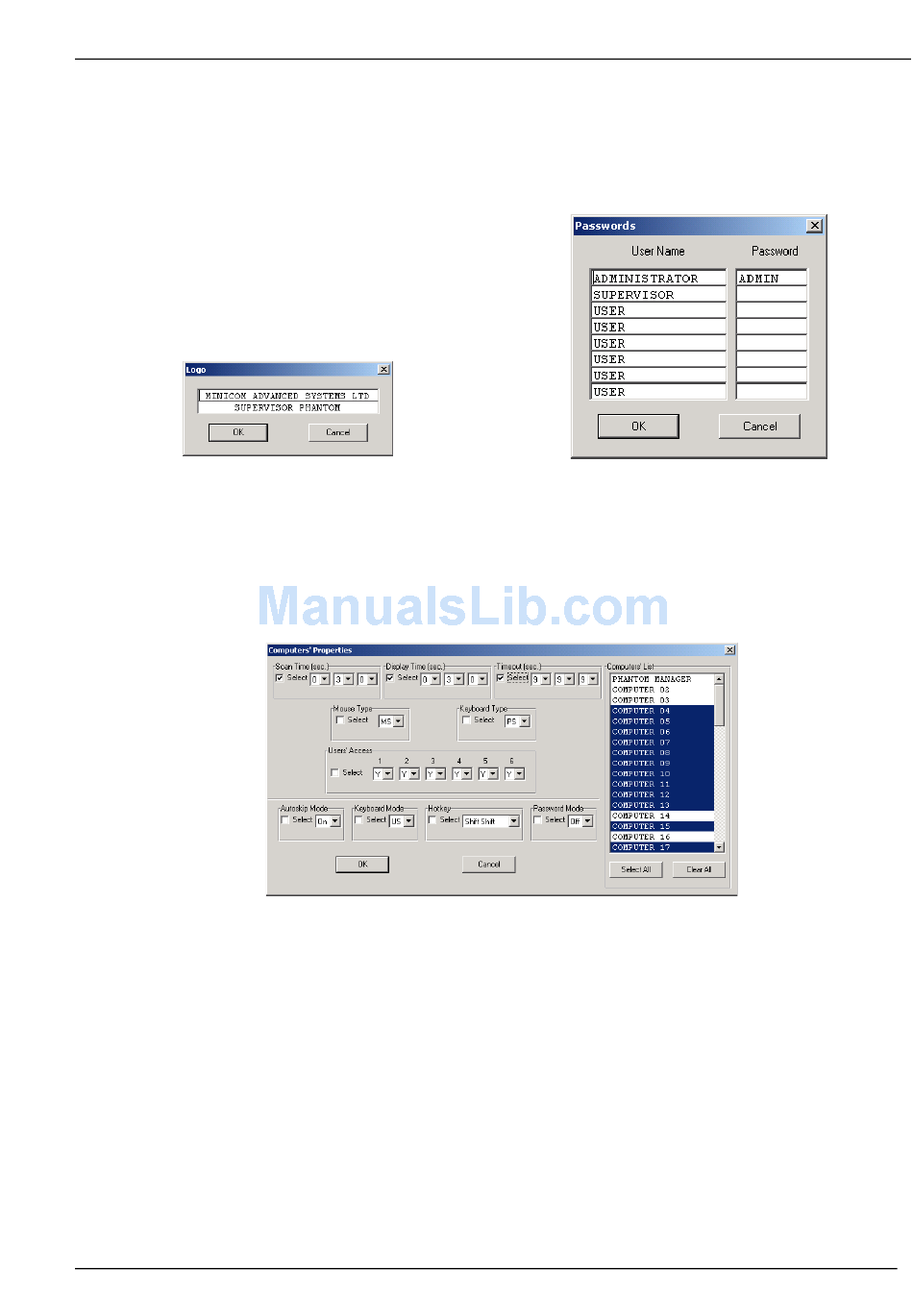

Figure 4-4 The logo
2. Make the desired changes.
3. Click OK.
Settings
Choose Settings from the Edit menu. The Computers' Properties box appears. See Figure 4-6.
Here you can edit all the data that can be edited in the OSD. This includes:
Scan times, Confirmation label display time, Timeout, mouse type, keyboard type, User access, password
mode, Autoskip mode, keyboard mode – Display hotkey.
To edit a setting:
1. Select the desired computer or group of computers.
2. Make the desired changes.
3. Check the Select box next to the changed setting.
4. Click OK.
The toolbar buttons
Figure 4-6 The Settings box
4-6
Figure 4-5 The names and passwords
