Installing and running the Control software

Note! The Phantom system must be fully connected BEFORE running the Control software. Failure to first
connect the system will lead to the software working in demo mode.
Start the Marketing & Documentation CD and choose Phantom Utilities Softpack. The Phantom Softpack
window appears.
To install the software choose Install Phantom RS232 Control Software. Once the software is installed, a
shortcut icon appears on the Desktop
To run the software double-click
Or choose Start / Programs / Phantom RS232 Control / Phantom RS232 Control.
The View menu
Computer screens
appear here
Shielded CAT5
FTP cable
To
System
Out port
POWER SYSTEM SERVICE
To Service
connector
RS232 Serial
cable
To computer's Serial port

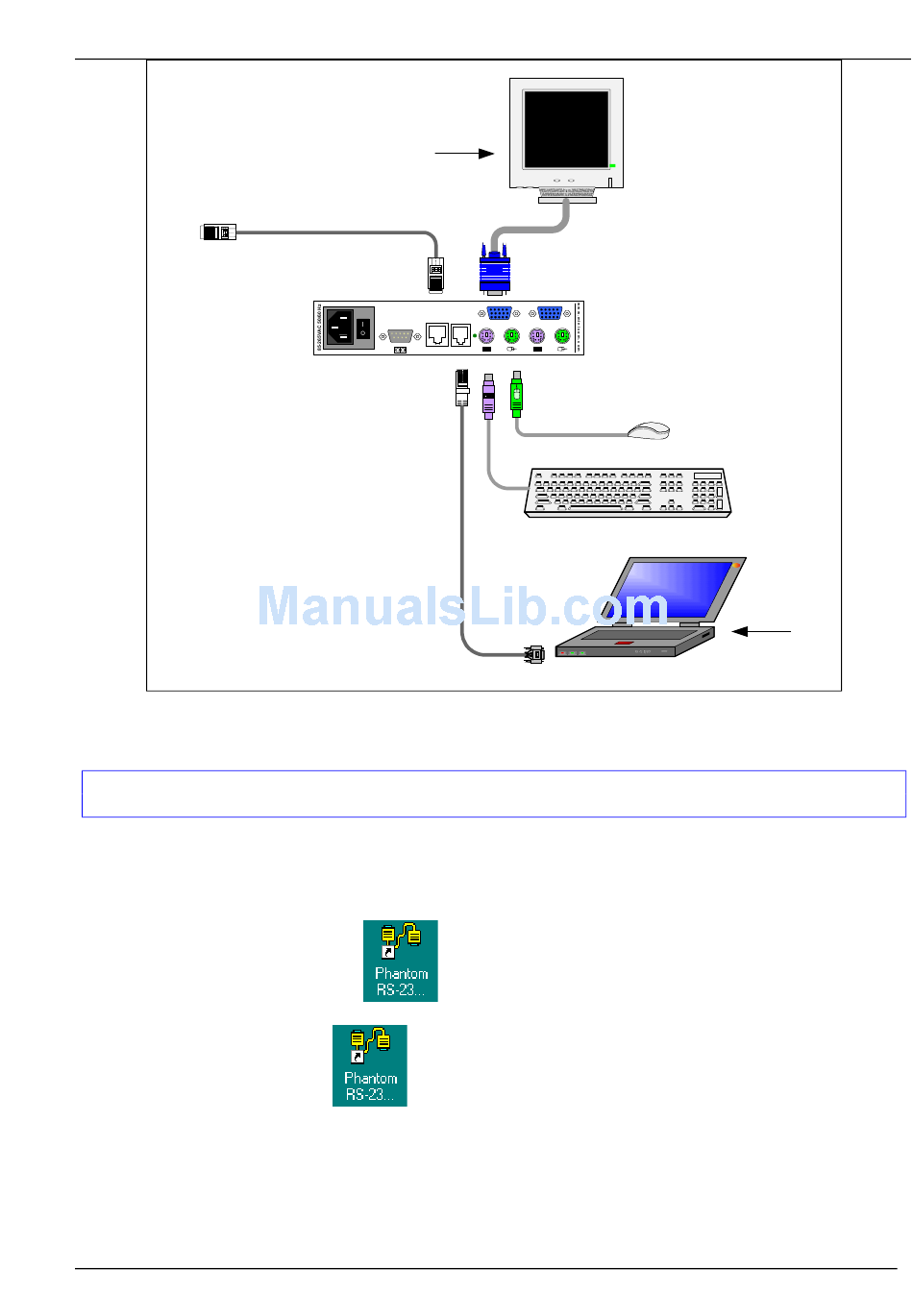

Figure 4-1 The UPM with the RS232 Serial cable
.
4-2
SD
P110
USER COMPUTER
Control software
installed here
