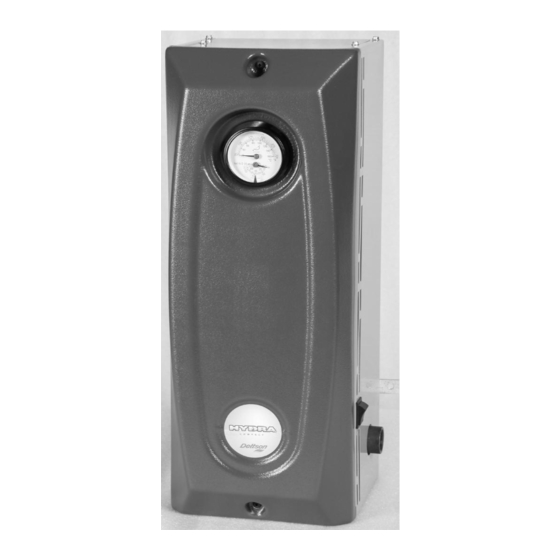

Dettson HYDRAC03-M2401M Installation Instructions And Homeowner's Manual
Electric boiler mechanical control
Hide thumbs
Also See for HYDRAC03-M2401M:
Table of Contents
Advertisement
Quick Links
Models:
HYDRAC03-M2401M
HYDRAC04-M2401M
HYDRAC05-M2401M
HYDRAC06-M2401M
HYDRAC07-M2401M
HYDRAC08-M2401M
HYDRAC09-M2401M
HYDRAC10-M2401M
HYDRAC11-M2401M
HYDRAC12-M2401M
Manufactured by:
Dettson Industries Inc
3400, Industrial Boulevard
Sherbrooke, Qc, Canada, J1L 1V8
www.dettson.ca
Attention
Do not tamper with the unit
or its controls.
qualified service technician.
Printed in Canada on 100% recycled paper

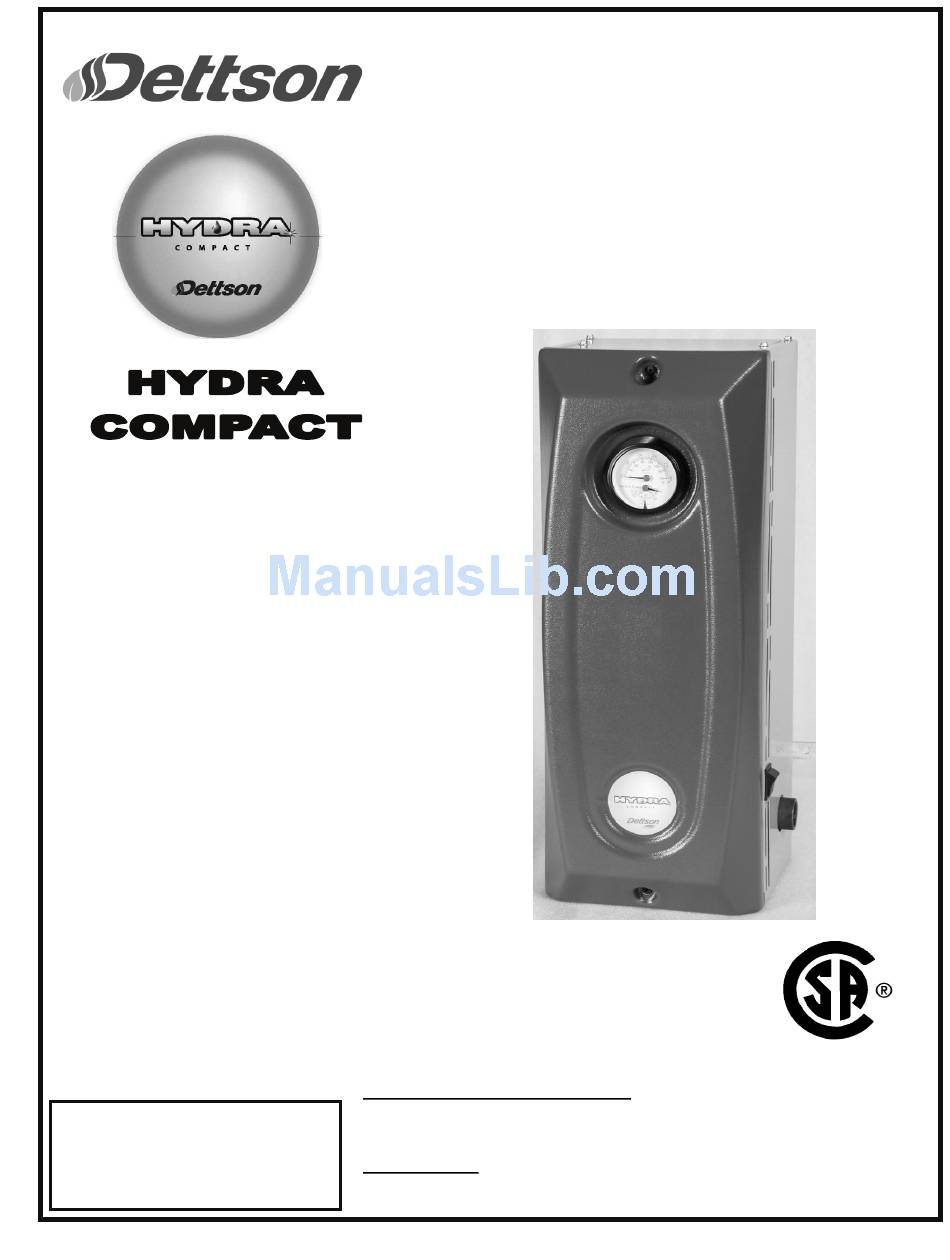

Installation Instructions
and Homeowner's Manual
INSTALLER / SERVICE TECHNICIAN :
Use the information in this manual for the installation / servicing of the
boiler and keep the document near the unit for future reference.
HOMEOWNER :
Call a
Please keep this manual near the boiler for future reference.
ELECTRIC BOILER
MECHANICAL CONTROL
2013-08-29
c
X40202 Rev. D
Advertisement
Table of Contents
Related Manuals for Dettson HYDRAC03-M2401M
Summary of Contents for Dettson HYDRAC03-M2401M
-
Page 1: Installation Instructions
HYDRAC07-M2401M HYDRAC08-M2401M HYDRAC09-M2401M HYDRAC10-M2401M HYDRAC11-M2401M HYDRAC12-M2401M Manufactured by: Dettson Industries Inc 3400, Industrial Boulevard Sherbrooke, Qc, Canada, J1L 1V8 www.dettson.ca INSTALLER / SERVICE TECHNICIAN : Attention Use the information in this manual for the installation / servicing of the boiler and keep the document near the unit for future reference. -
Page 2: Section 1 Installation
SECTION 1 INSTALLATION 1.1) DANGER, WARNING AND CAUTION 1.3) DELIVERY The words DANGER, WARNING and CAUTION are used to identify Upon delivery of the boiler, check the nameplate to be sure that the levels of seriousness of certain hazards. It is important that you you have received the model with the correct rating and proper understand their meaning. -
Page 3: Minimum Clearances To Combustible Materials
Figure 1 : Mounting configurations * If the boiler is in an enclosure, provide a door or a removable panel 1.5) CLEARANCES in front to access the control panel. 1.6) DISTRIBUTION SYSTEM The following clearances should be provided for the servicing of the unit: The proper functioning of your heating system is directly related to the quality of the plumbing installation. -
Page 4: Freeze Protection (When Required)
Figure 2 : Boiler components 1 expansion tank, pre-pressurized to 12 psi and of appropriate Freeze protection (when required) size; 1 or more automatic air purge valves; WARNING 1 or more circulating pumps of appropriate capacity. Only propylene glycol may be used in this CAUTION hydronic heating system, to prevent freezing. -
Page 5: Electric Power Supply
An air vent should be installed on the unit if installed upright Power supply to the unit can be made using copper or aluminum position, water connections at the bottom. In all other mounting wires. The wire size must be decided in accordance to unit power position, cork the hole with the ¼’’... -
Page 6: Section 2 Operation
SECTION 2 OPERATION Adjust the setpoint of the boiler on the aquastat. 2.1) ADJUSTMENTS AND START-UP Turn on the power, set the thermostat at 30C (85F). The circulator; The circulator should start as well as the electrical CAUTION elements in sequence with a 8 seconds delay; The boiler must be filled with water and all air The circulator stays on for as long as there is a call for heat purged from the system, before turning on the... -
Page 7: Section 5 Technical Data
SECTION 5 TECHNICAL DATA Table 2 Hydra Compact – Technical specifications 2.25 9.4 / 12.5 12 / 15.6 0.81 / 1.08 12.5 / 16.7 15.6 / 20.9 1.08 / 1.44 3.75 15.6 / 20.8 19.5 / 26 1.35 / 1.81 18.8 / 25.0 23.5 / 31.3 1.63 / 2.17... - Page 8 Figure 4 : Typical Diagram of a Single Zone Installation Figure 5 : Multizone Diagram with more than one Circulator...
- Page 9 Figure 6 : Multizone diagram with Motorized Valves Figure 7 : Electrical Diagram...
-
Page 10: Section 6 Remplacement Parts
SECTION 6 REMPLACEMENT PARTS Figure 8 : Exploded Vue B50121 Rev. D... -
Page 11: Parts List
