INSTRUCTION MANUAL
SCALE FUSELAGE AIRWOLF 470 SIZE
1. INTRODUCTION
Thank you for buying Roban Model products. The 450 size Airwolf scale fuselage is designed as an easy to use
product. Please read the manual carefully before assembling the model, and follow all precautions and
recommendations located within the manual. Be sure to retain the manual for future reference, routine
maintenance and tuning. The scale fuselage is designed for T-REX 450 Helicopter series use. You can easily put
it on your T-REX 450 for new clothing.
Important Note
Roban Model R/C Helicopters are advanced, high-performance devices, built incorporating the latest
technologies. They are not intended as toys, and improper use can potentially lead to serious injury, or even
fatal accidents. We implore you to read this manual thoroughly before operating these models. Safety should
be your utmost priority - not just your own, but also that of others and your surroundings when piloting Roban
Model products.
Liability Disclaimer:
The manufacturer and the seller cannot accept liability for the operation or misuse of this product. Roban Model
R/C helicopters are intended to be used exclusively by experienced adults in legally sanctioned flying fields. Once
sold, we cannot monitor or control the product's operation or usage.
Operation Guidelines:
Upon assembly of the scale fuselage, the weight and complexity of the structure will increase. To mitigate risk
of accidents and damages, we advise against attempting 3D flights.
Skill Requirements:
Advertisement
Related Manuals for Roban AIRWOLF
Summary of Contents for Roban AIRWOLF
- Page 1 SCALE FUSELAGE AIRWOLF 470 SIZE 1. INTRODUCTION Thank you for buying Roban Model products. The 450 size Airwolf scale fuselage is designed as an easy to use product. Please read the manual carefully before assembling the model, and follow all precautions and recommendations located within the manual.
- Page 2 The operation of R/C products necessitates a certain level of skill and familiarity. Any damages or dissatisfaction resulting from accidents, modifications, or operational mishaps are not covered under any warranty. Consequently, such products cannot be returned for repair or if you experience problems during operation or maintenance.
-
Page 3: Contents Of Kit
3. CONTENTS OF KIT Please check the contents of the kit prior to installation. - Page 4 Item Description Quantity L Lever 5pcs Ball links 6pcs Socket Head Cap Screw M2x18mm M2 Nut Socket Head Cap Screw M3x10mm 5pcs Pushrod 1.5x178mm 2pcs Pushrod 1.5x22mm Hex Set Screw M3x3mm 5pcs Spacer 22x6x2mm 2pcs...
- Page 5 Servo Holder Self Tapping Screw A2x8 2pcs Spacer set 52x12x3 6/2 8pcs EVA distancing spacer Socket Head Cap Screw M2x18mm 4pcs Washer M2 4pcs M2 Nut 4pcs Vertical tail fin Self Tapping Screw A2x10 Horizontal tail wings 2pcs Small vertical winglet 2pcs Self Tapping Screw A2x5mm 4pcs...
-
Page 6: Installation
4. INSTALLATION 4.1. Mount the balls with screw M2x5 onto the levers as shown below. Do not overtighten, the threads will wear out. 4.2. Mount the ball links to the rods and the levers to the ball links as shown. - Page 7 4.3. Assemble the front wheel unit according to the picture. 4.4. Install it into the fuselage as show using screws.
- Page 8 4.5. Lock in place with washer M3 and screw M3x10 as depicted. 4.6. The carbon rods 3x45 are the pivot axle, insert them partially but do not secure them yet. The preinstalled rod serves as the end position limiter.
- Page 9 4.7. Install the tail strut, then lock the rod in place with set screw. All adjustments can be done afterwards on the other end of the rods. 4.8. To ensure optimal performance and safety, please follow these instructions carefully when installing the levers, shafts, and retaining rings: Install the prepared components as shown in the accompanying diagrams, making sure to align them properly.
- Page 10 4.9. Remove the tail cap. 4.10. Install wooden spacers onto the mechanic, front and back.
- Page 11 4.11. Insert the mechanic into the fuselage as shown. 4.12. Insert the EVA rubber into the tail boom to prevent vibrations.
- Page 12 4.13. Install the tail rotor 4.14. Insert the mechanic (remove tail rotor first) into the fuselage, and screw the front section down as shown.
- Page 13 4.15. The screw down the tail section from below as shown. 4.16. Install the tail cap.
- Page 14 4.17. Lock the retract servo using screws M2x8 in place. 4.18. Mount the tail fin as shown with screws.
- Page 15 4.19. To properly install the tail wings, please follow these instructions carefully: Ensure that all other components are installed before gluing the tail wings. Use glue to secure the tail wings in place. We recommend using a slow-setting epoxy glue, as a quick-setting glue may not allow enough time for adjustment.
- Page 16 4.21. Mount the rocket launcher with screws as shown. 4.22. Use glue to securely attach the machine gun parts into the fuselage as shown on both sides.
- Page 17 4.23. Then use glue to attach the end plate on both sides. Match the painting of the fuselage! 4.24. Apply small amounts of slow-setting yellow glue to the area where the window will be installed. Carefully position the window into place, ensuring that it is properly aligned and seated securely. Allow sufficient time for the glue to dry completely before handling or operating the model.
-
Page 18: Spare Part List

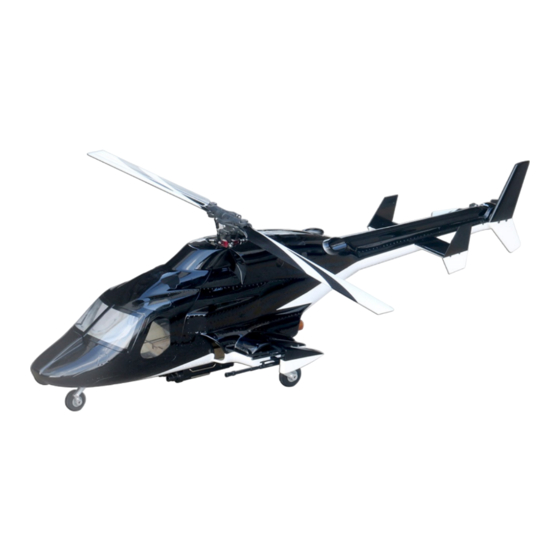

5. SPAREPART LIST 470 Airwolf AW470PJ001 470 飞狼前头 canopy 470 Airwolf AW470PJ002 470 飞狼前窗 front window 470 飞狼全套 70 Airwolf AW470PJ003 窗 all window 470 Airwolf AW470PJ004 470 飞狼机枪 side guns 470 Airwolf AW470PJ005 470 飞狼尾巴 tail cap 470 飞狼平垂... - Page 19 6. FULLY ASSEMBLED FUSELAGE Specifications: Length: 1006mm Height: 226mm Width: 385mm Weight: 710g Suitable for Align T-REX 470 and similar mechanics We wish you a lot of fun with the fuselage! Copyright 2024 – www.robanmodel.com...
