Summary of Contents for Endura TWC12M

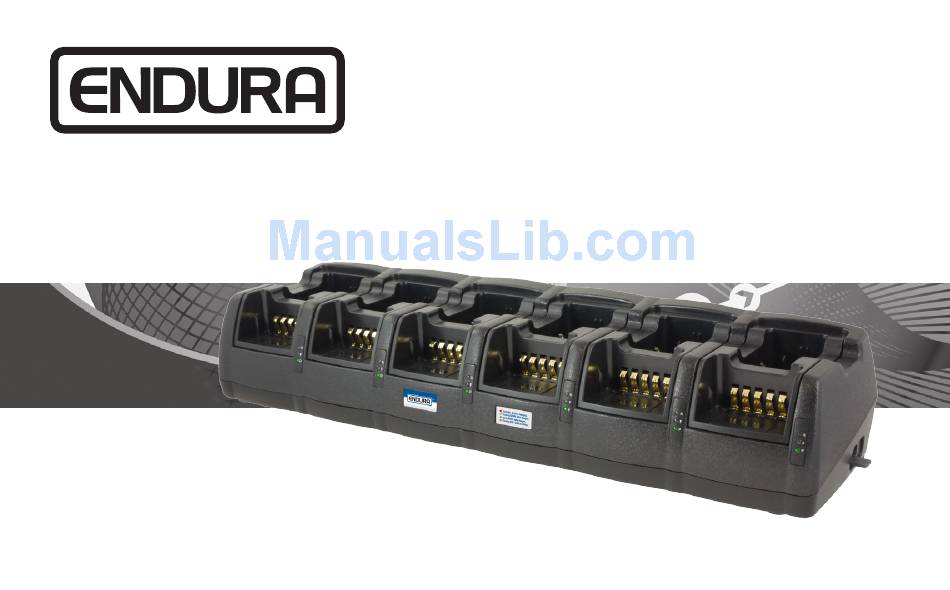

- Page 1 ™ Twelve Unit Rapid Charger FOR RECHARGEABLE LMR BATTERIES User Manual Model TWC12M...
-
Page 2: Table Of Contents
ENDURA™ TWC12M Table of Contents Topic Page Introduction Important Caution Features Replacing A Charging Pod Charging A Battery – 8 Battery Fault Conditions Warranty And Service Specifications... -
Page 3: Introduction
Using six replaceable pods, the TWC12M can charge twelve batteries at the same time and the batteries may be the same or different chemistries. Separate LEDs confirm the charge status of each battery. -
Page 4: Important
Important Read all Caution statements below and this User Manual before attempting to charge a battery. Always charge new batteries completely before initial use. Recycle batteries when they can no longer be used. Do not discard unwanted batteries in the trash or inciner- ate. - Page 5 Do not remove the charger’s housing or make any modification to the charger. Use only the power supply provided with the ENDURA TWC12M charger. If a replace- ment power supply is required, order part number TWC12M-PS. Use of other power supplies may damage the charger or batteries you may be attempting to charge.
-
Page 6: Features
ENDURA TWC12M Features DC power connection (see next page). TWC12M – rapid charger base. Charge status LEDs – for front and rear Power on/off switch (left side of unit). positions. Removable charging pod for two batteries Quick reference information for charge status (shown for first position only). -
Page 7: Features
ENDURA TWC12M Features (continued) DC power connection. TWC12M-PS - power supply for TWC12M (UL listed). DC plug from power supply. TWC6M-PC - power cord to connect TWC12M-PS with AC wall outlet. Note: DC power connection (7) is a custom design that securely holds the DC plug (8). -
Page 8: Replacing A Charging Pod
Insert the replacement charging pod into the charging base and secure with the locking screw. Do not over tighten the screw. Inspect the charging contacts to ensure they are clean and unobstructed. Connect the power supply to the TWC12M. You are now ready to charge a battery compatible with the charging pod. -
Page 9: Charging A Battery
Confirm that the charging pod and battery are compatible. Insert the DC plug from the power supply into the opening on the right side of TWC12M, connect the AC wall plug to a 120V outlet, and turn the power switch (left side) to the on position. - Page 10 Allow the charge status LED to go off before placing another bat- tery in the charging pod. The TWC12M is designed to operate at room temperatures between 15°C and 30°C (59° F – 86° F). Do not charge batteries at temperatures below 0°C (32° F) or above...
-
Page 11: Battery Fault Conditions
Fault Conditions When the F or R charge status LED flashes RED, a fault condition exists. There are three different flash patterns, each indicating a specific type of fault. The flash patterns and fault conditions are as follows: Flash Pattern Fault Type Flashes 1 Time Indicates charging complete, but battery is under charged. -
Page 12: Warranty And Service
Warranty And Service During Warranty The ENDURA TWC12M is made from high quality materials and designed to provide years of reliable service. The following warranty applies: Power Products Unlimited, Inc. (PPU) warrants this product to be free from defects in workmanship and materials for one-year from date of purchase by the end user. -
Page 13: Specifications
ENDURA TWC12M Specifications Dimensions 509 x 148 x 94 mm / 20.0 x 5.8 x 3.7 inches (W x L x H) Weight 1.63 kg / 3.6 lbs (Charger Only) Weight 0.86 kg / 1.9 lbs (Power Supply) Compatible Chemistries... - Page 14 Smart • Adaptable • Reliable © 2014 Power Products Unlimited, Inc. Power Products is a registered trademark of Power Products Unlimited, Inc. ENDURA and Smart • Adaptable • Reliable are trademarks of HT Mobile Products, Inc. All rights reserved.
