Installation Preparation; Hanging Bracket Installation - Intertek RSS52 Installation Manual

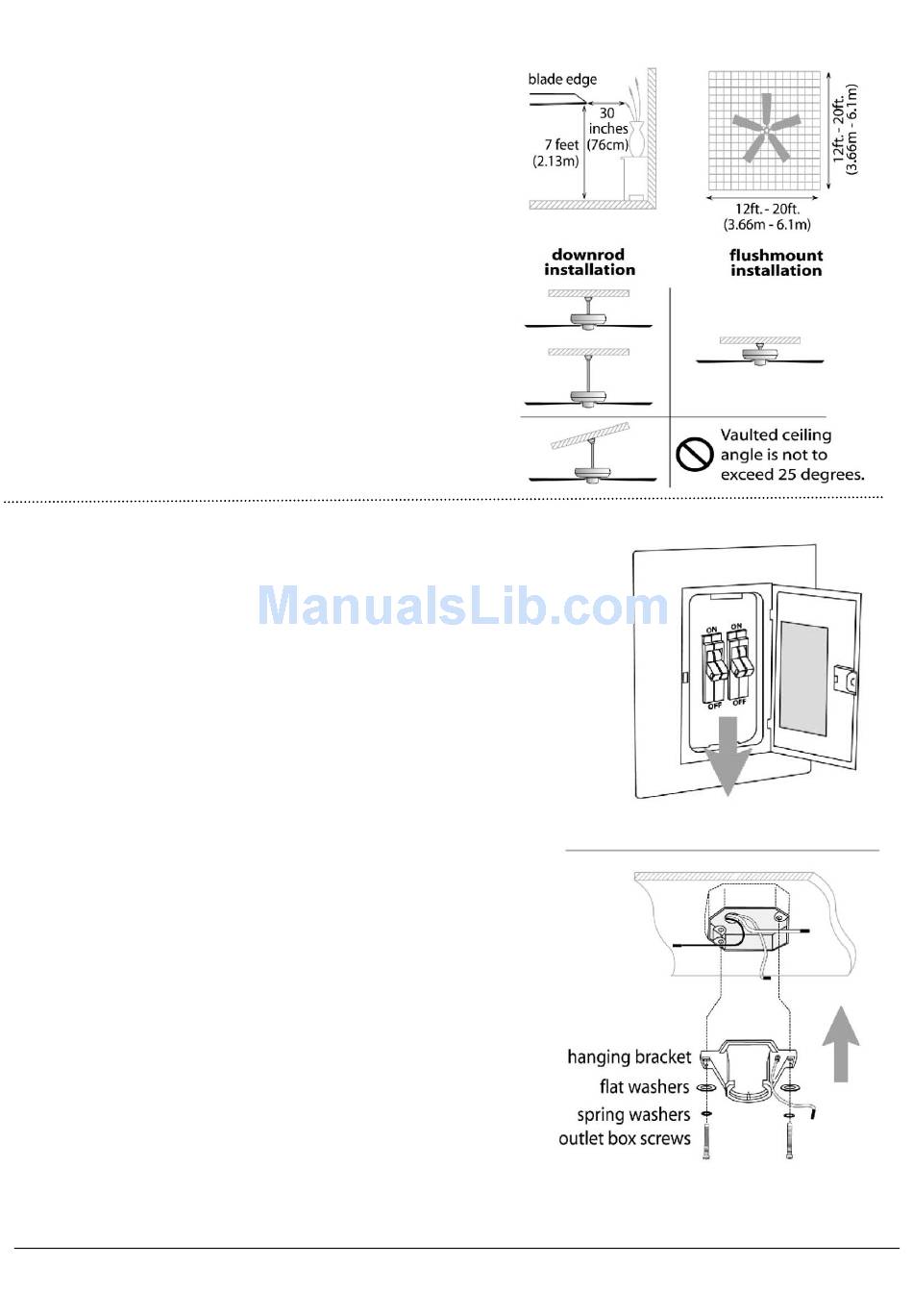

3. Installation
To prevent personal injury and damage, ensure that
the hanging location allows the blade a clearance
of 7ft.(2.13m) from the floor and 30in.(76cm) from
any wall or obstruction.
The fan is suitable for room sizes up to 400 square
feet (37.2square meters).
This fan can be mounted with a down rod
on a normal or vaulted ceiling. The hanging length
can be extended by purchasing a longer down rod
(0.625in/1.59cm diameter).
This fan can also be mounted using
Flush mount installation only on a normal ceiling.

4. Hanging Bracket Installation.

Turn off circuit breakers to current fixture from breaker panel
and be sure operating light switch is turned to the OFF position.
WARNING: Failure to disconnect power supply prior to
installation may result in serious injury.
Remove existing fixture.
WARNING: When using an existing outlet box, be sure the
outlet box is securely attached to the building structure and can
support the full weight of the fan. Ensure outlet box is cleanly
marked "Suitable for Fan Support. " If not, it must be replaced
with an approved outlet box. Failure to do so can result in
serious injury.
:
CAUTION Be sure outlet box is grounded properly and that a
ground wire (green or bare) is present.
Partially loosen screws in slotted holes of canopy. Remove
the other 2 screws (along with the star washers)--save for
later use. Twist canopy to remove hanging bracket.
Install hanging bracket to outlet box using original screws,
spring washers and flat washers provided with new or
original outlet box. If installing on a vaulted ceiling, face
opening of hanging bracket towards high point of ceiling.
Arrange electrical wiring around the back of the hanging
bracket and away from the hanging bracket opening.
:
Note It is very important that you use the proper hardware when
installing the hanging bracket as this will support the fan.
MODEL NO.:RSS52
Preparation.
Page
4
