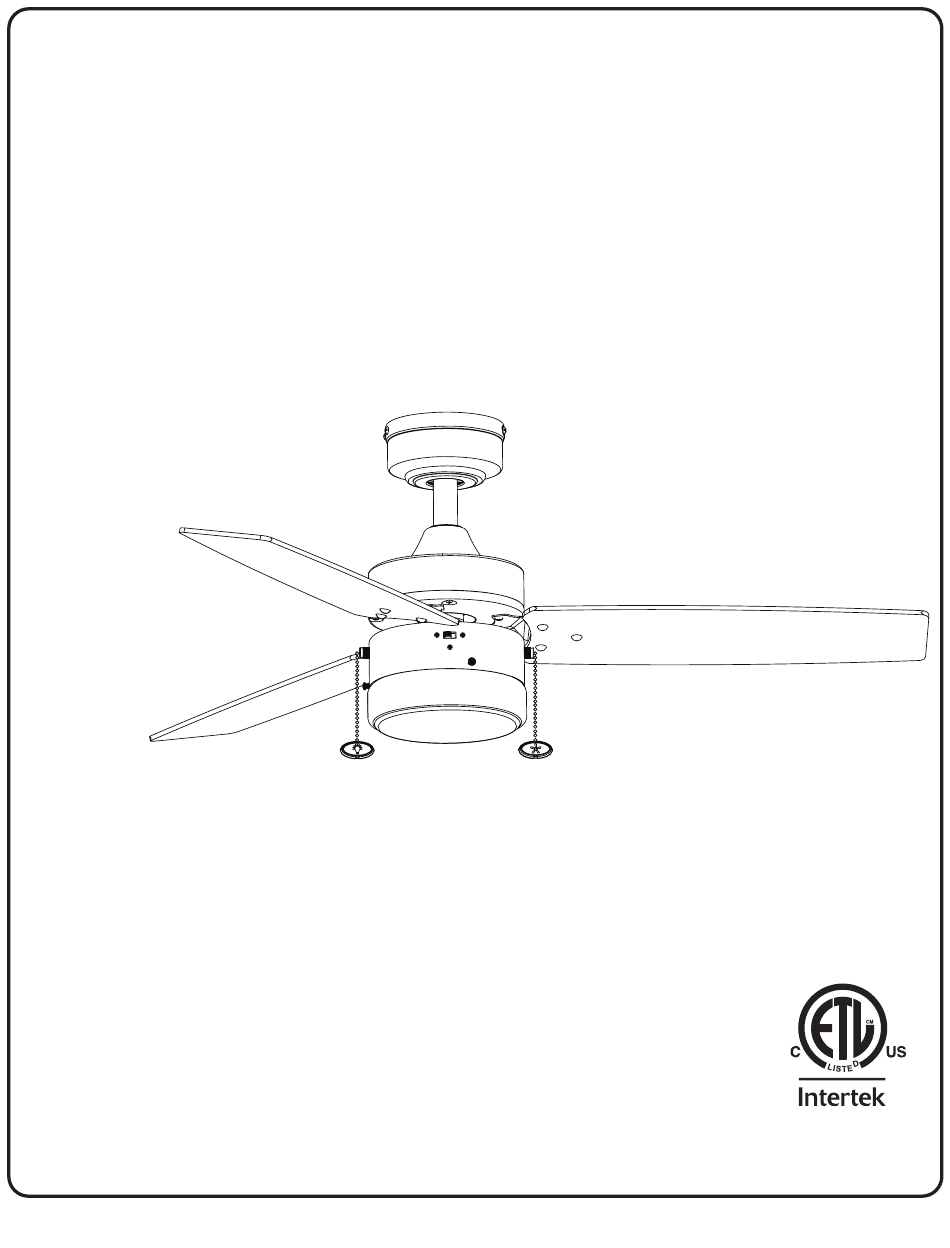

- Page 1 42” CEILING FAN Owner’s Manual Model #51014, 51015, 51478 To obtain service, please contact the Service Department: , 8 a.m.-5 p.m. Central, Monday-Friday. 1-877-706-3267 9587 • 022620...
-
Page 2: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: PACKAGE CONTENTS 1. Canopy 10. Motor Screw (x6) 2. Canopy Cover 11. Motor Assembly 3. Mounting Bracket Screw 12. Light Kit (x4) 13. Thumbscrew (x3) 4. -
Page 3: Mounting Options
DIMENSION REFERENCE A. 13.66 in. B. 8.65 in. C. 6.74 in. D. 5.12 in. MOUNTING OPTIONS Two Mounting Options Downrod Mount Angled Ceiling Mount (Up to 16 degrees) Choose one of the following mounting options: Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer downrod (not included). -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE FAN AND SAVE INSTRUCTIONS. CAUTION: All set screws of the fan must be checked and retightened where necessary before installation. To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the blades or cleaning fan. - Page 5 SAFETY INSTRUCTIONS WARNING: To avoid risk of electric shock, be sure to shut off power at the main fuse or circuit breaker box before installing or servicing this fixture. Turning off the electrical power by using the light switch is not sufficient to prevent electrical shock.
- Page 6 ASSEMBLY INSTRUCTIONS 1.Turn OFF the electrical power at the main fuse or circuit breaker. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. Mounting Bracket Screw 2. Remove the mounting bracket by removing the two mounting bracket screws from the round holes in the canopy.
- Page 7 ASSEMBLY INSTRUCTIONS 5. Insert the downrod into the yoke and reinstall the downrod pin and downrod clip. Then retighten the two set screws. Downrod Note: With wiring extending out of the downrod, Set Screw measure 8 inches of lead wire and cut the excess wire with Downrod Pin wire cutters (not included).
- Page 8 ASSEMBLY INSTRUCTIONS Braided Cable SECONDARY HANGING SYSTEM For installation in the United States: Building codes Brace in the U.S.A. do not require installation of a Secondary Hanging System. If desired, the braided cable can be cut and removed using wire cutters (sold separately). Skip to Step 10.
- Page 9 ASSEMBLY INSTRUCTIONS 10. Connect household supply and fan wires according to the diagram and these steps: Black (hot) Wire Connecter • Connect the Green wire from the downrod and mounting White (neutral) Bare/Green bracket to the Bare/Green (ground)supply wire. (ground) •...
- Page 10 ASSEMBLY INSTRUCTIONS Attach a blade assembly to the underside of motor assembly using previously removed motor screws. Blade Completely secure each blade assembly before moving to the next. Motor Motor Screw Assembly 15. Install the bulbs into the sockets of the light kit. Important: Make sure to allow the bulbs to cool before you replace them.
- Page 11 OPERATING INSTRUCTIONS 1. Using a ceiling fan will allow you to raise your thermostat setting in summer and lower your thermostat setting in winter without feeling a difference in your Reverse comfort. Switch In warmer weather, push the reverse switch left which will result in downward airflow creating a wind chill...
-
Page 12: Troubleshooting
TROUBLESHOOTING If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing difficulty in , 8 a.m.-5 p.m. -
Page 13: Limited Lifetime Warranty
To obtain service, please contact the Service Department: , 8 a.m.-5 p.m. Central, Monday-Friday. 1-877-706-3267 Model Name: 42” Ceiling Fan Model No: 51014 - Brushed Nickel 51015 - Espresso 51478 - Pewter Set forth below, the manufacturer, Hong Kong China Electric appliance Company (HKC) warrants the fan motor for this ceiling fan to be free from defects in workmanship and material for the life of the product.
