Positioning of wheelchair
• Position the wheelchair facing forwards (Fig. C).
Check whether the straps conform to the angles in Fig. D.
Rear view
Front attachment
point
Side view
Position of static or
retracting belts
Fig. D

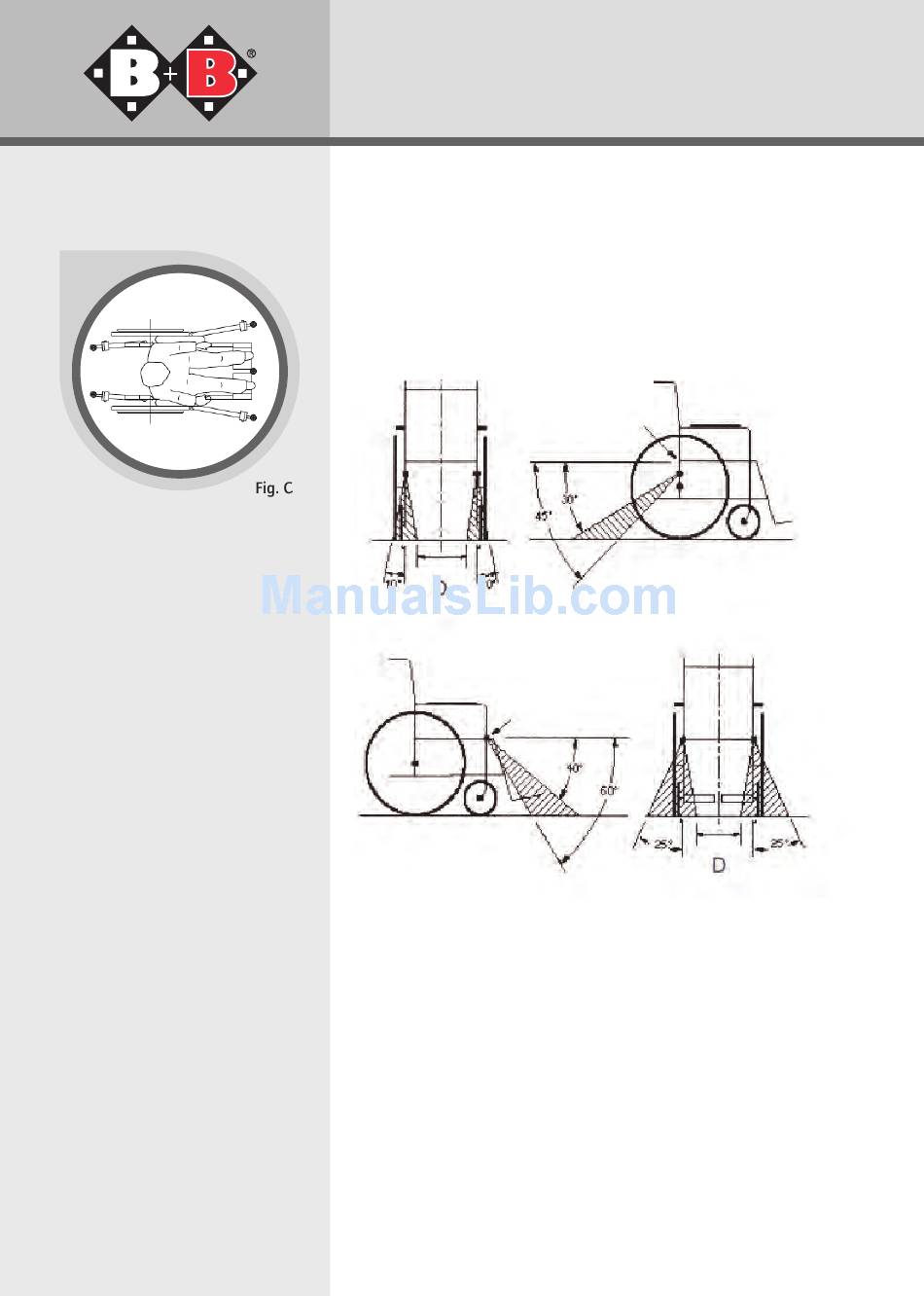

•Stipulated angles and positions of straps from wheelchair
to vehicle floor. Front straps should be arranged so that
the angle ensures optimum lateral stability
(D = 300mm).
•The hatched area indicates the range within which the
straps must be attached to the floor!
•Wheelchair must not be placed in front of an active
air-bag Deactivate air-bag or have it deactivated!
Rear attachment
point
Position of static or
retracting belts
Side view
