Avtech AVC153 User Manual

IR DOME CAMERA USER MANUAL
960H Ultra Resolution Series
It's recommended to use this camera with a DVR which supports 960H video recording.

PACKAGE CONTENT

1. Camera
2. User Manual

FEATURES

1. 1/3" H.R. Color CCD
2. 700 TVL superior image quality
3. Low light sensitivity of 0.1 Lux / F2.0, 0 Lux (IR ON)
4. Day and night features for 24-hour surveillance
5. IR effective range up to 15 meters

SPECIFICATIONS*

Model
Pick up Element
Number of Pixel
Resolution
Min. Illumination
IR LED
IR Effective Distance
S/N Ratio
Electronic Shutter
Lens
Lens Angle
Iris Mode
White Balance
Video Output
Operating Temperature
Power Source (10%)
Current Consumption (10%)
Dimension (mm)**
* The specifications are subject to change without notice.
** Dimensional Tolerance: ± 5mm
The product image may differ from the actual product.
Please read the instructions thoroughly before using the product.
98.3° (Diagonal) / 76.3° (Horizontal) / 56.2° (Vertical)

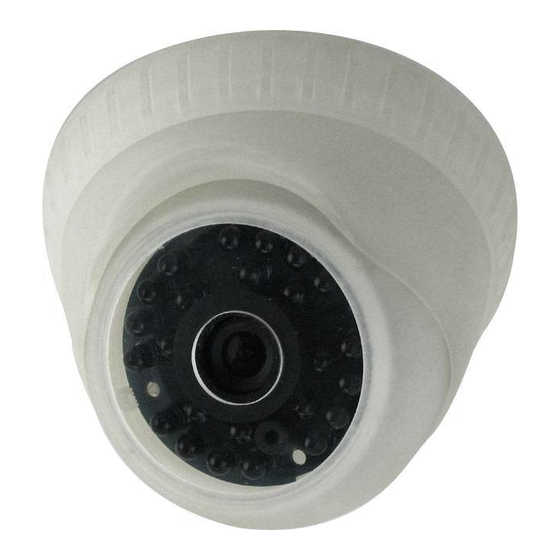

IR Dome Camera
1/3" HR color CCD image sensor
976(H) x 494(V) <NTSC> / 976(H) x 582(V) <PAL>
700 TVL
0.1 Lux / F2.0; 0 Lux (IR ON)
21 units
Up to 15 meters
More than 48dB (AGC off)
1/60 (1/50) to 1/100,000 sec.
f3.6 / F2.0
AES
ATW
1.0Vp-p composite, 75Ω
0°C~40°C
DC12V
70mA (IR OFF), 200mA (IR ON)
94.1(Ø) × 70.7 (H)
524Z
153_V0.9
