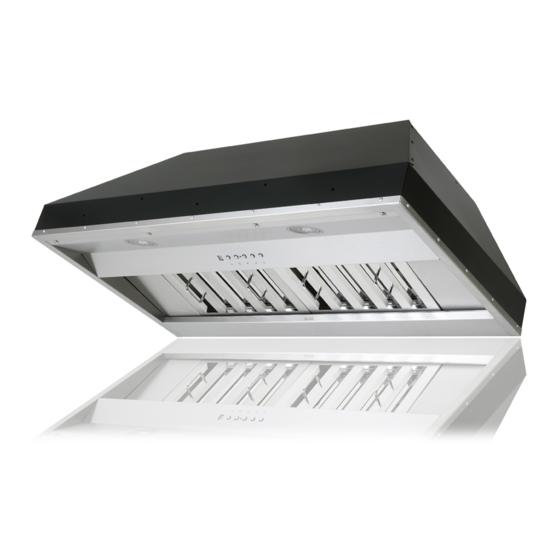

KOBE Range Hoods
Model No. IN2630SQB-700-2
PREMIUM IN26 SERIES
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IN2630SQB-700-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for KOBE IN2630SQB-700-2

  • Page 1 KOBE Range Hoods Model No. IN2630SQB-700-2 PREMIUM IN26 SERIES INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
  • Page 2 IMPORTANT READ THIS FIRST READ BEFORE INSTALLATION 1. Carefully check all contents of package(s). 2. Thoroughly inspect the unit for any shipping damages, cosmetic damages or defects. 3. Have a certified contractor/electrician test the unit before installation. IF THERE IS ANY PROBLEM: 1.
  • Page 3: Table Of Contents

    [ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE ....................3 INSTALLATION ......................... 4 OPERATING INSTRUCTIONS ....................9 MAINTENANCE ........................11 SPECIFICATIONS ........................12 MEASUREMENTS & DIAGRAMS .....................13 PARTS LIST ..........................14 CIRCUIT DIAGRAM ........................16 TROUBLE SHOOTING ......................17 WARRANTY ..........................18 WARRANTY INFORMATION FORM ..................20...
  • Page 4: Important Safety Instructions

    KOBE RANGE HOODS’ authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood.
  • Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
  • Page 6: Components Of Package

    COMPONENTS OF PACKAGE (Must keep all material for returns or refunds) Range Hood Box {A} KOBE Range Hood {H} Rectangular Exhaust Plate {B} Warranty Registration Card {I} Rectangular Exhaust Adapter {C} Quick Ref Guide {J} Power cord {D} Baffle Filters x 2 {K} 6”...
  • Page 7: Installation

    INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation Before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) - FOR BUILT-IN / INSERT - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36") C = Height of Counter Top to Wood Frame Bottom (Minimum 26"...
  • Page 8 Figure 1 Preparation Before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the  outside. Refer to Figure 1. A straight, short vent run will allow the hood to perform more ...
  • Page 9 For Rear Vent Options only: Figure 5 NOTE: The blower is pre-installed for top vent. If installing as rear vent, follow the steps below: 9. For Rear 6” round installation only: Remove the Rear Round Vent Cover and Rear Rectangular Vent Cover (Refer to Figure 4). Keep screws to attach Round Exhaust Plate to rear vent.
  • Page 10 Figure 9 Wiring to Power Supply SAFETY WARNING RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY QUALIFIED ELECTRICIAN IN ACCORDANCE WITH ALL APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
  • Page 11 Figure 12 Final Assembly 22. The oil tunnel is already installed into recess support near rear of hood. Refer to Figure 12. 23. Install baffle filters. Angle baffle filter toward back of hood ①. Push baffle filter up until almost level ②. Slide forward into recess behind the front of hood ③.
  • Page 12: Operating Instructions

    OPERATING INSTRUCTIONS Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. Button Control Power Control Light Control Decrease Fan ECO Mode Control Speed Increase Fan ECO Mode Icon Speed Power Control To turn the hood ON/OFF, press the power button once.
  • Page 13 ECO Mode Control ECO Mode is set to turn the fan on QuietMode™ setting for 10 minutes every hour to remove excess moisture, microscopic particles and odors for better kitchen air quality. ECO Mode is independent from the power control and delay shutoff. ECO Mode can be activated while fan is running on or off.
  • Page 14: Maintenance

    MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2.
  • Page 15: Specifications

    SPECIFICATIONS MODEL / SIZE IN2630SQB-700-2 / 30” COLOR Commercial Grade Stainless Steel CONSUMPTION / AMPERE 290W / 2.5A VOTLAGE 120V 60Hz NUMBER OF BLOWERS BLOWER TYPE: CENTRIFUGAL Single Horizontal Squirrel Cage EXHAUST Top: 6” Round 3-1/4” x 10” Rectangular Rear: 6”...
  • Page 16: Measurements & Diagrams

    MEASUREMENTS & DIAGRAMS  All ( ) are in millimeter.  All inch measurements are converted from millimeters. Inch measurements are estimated. MODEL NO: IN2630SQB-700-2 Side View Bottom View Back View Top View Front View...
  • Page 17: Parts List

    PART LIST MODEL NO: IN2630SQB-700-2 DESCRIPTION MODEL/SIZE PART NO. L1-0241-0001B Rectangular Exhaust Plate L1-0241-0002A Rectangular Vent Cover L1-0241-0001A Round Exhaust Plate L1-0241-0002B Rectangular Exhaust Adapter 10-2630B-700-2 Hood Casing IN2630SQB-700-2 L1-0402-6120-40V Motor Transformer L1-0404-6001-D Processor Board L1-0233-2630-A Blower Bracket L1-0401-0120-24 Capacitor x 1 pc...
  • Page 18 MODEL No.: IN2630SQB-700-2...
  • Page 19: Circuit Diagram

    CIRCUIT DIAGRAM MODEL NO.: IN2630SQB-700-2...
  • Page 20: Trouble Shooting

    TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the Installation, unit’s power is ON. Use a voltage meter to both motors check the power supply. and lights are The wire connection is not secure. Check and tighten wire connection.
  • Page 21: Warranty

    TWO-YEAR LIMITED LABOR WARRANTY ON KOBE PREMIUM SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion.
  • Page 22 5. Improper usage of the product such as commercially, outdoor or other usage other than its intended purpose which is residential indoor usage only. 6. Product is purchased from an unauthorized KOBE dealer. 7. Product is damaged due to negligence, misuse, abuse, accident.
  • Page 23: Warranty Information Form

    For warranty service or spare parts purchase in US, contact: KOBE Service Center Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880 ext. 103 Toll Free: 1-877-BUY-KOBE (289-5623) For warranty service or spare parts purchase in Canada, contact: Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880 ext. 103...
  • Page 24 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
