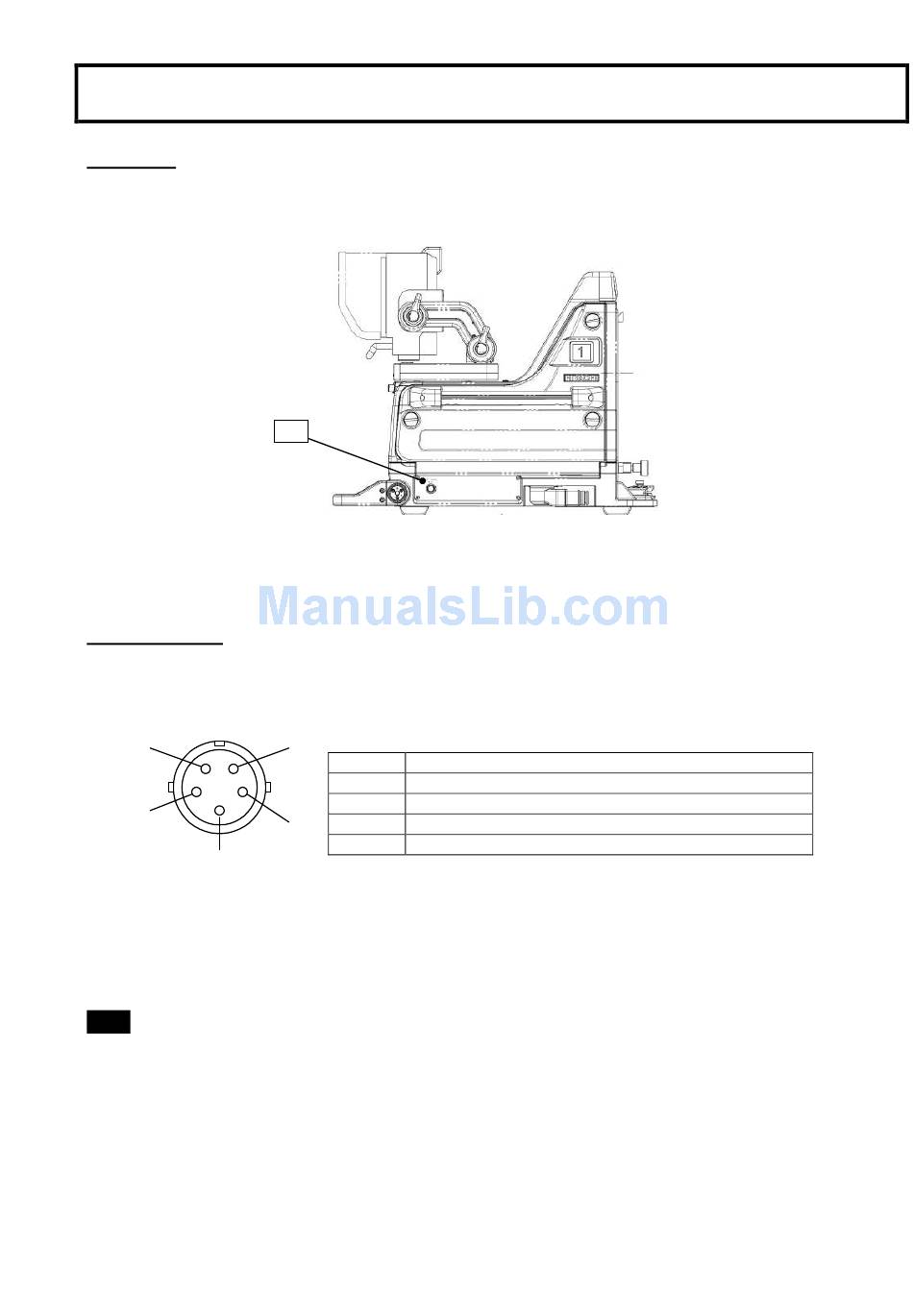

Application note: Connecting prompter power

Summary:
The prompter power connector is located on the fiber connector side.
This is a 5 pin socket with Power interlock.
How to connect:
Parts: 5 pin plug RM12BPE-5PH
Refer to Page 58 of the Operation manual for pin out details.
Connect as follows:
5
4
3
To switch 230V AC on, connect (direct link) Pin 5 to Pin 3.
*Please ensure all local and national Electrical Safety regulations are complied with when connecting
these power lines.
Note
If an over current fault is detected on the AC Power line, the Protective circuit in the CCU will shut down
power to the Camera Adaptor and Camera head.
Please avoid switching AC control line during live recording due to possible interference to the Video
signal from the camera.
C4
Hitachi code JMR0222
1
Pin 1
230V AC
Pin 2
GND AC
Pin 3
GND – Interlock
2
Pin 4
Tally out – To prompter tally input (open collector)
Pin 5
AC Control
To Prompter power input L*
To Prompter power input N*
59
