Table of Contents

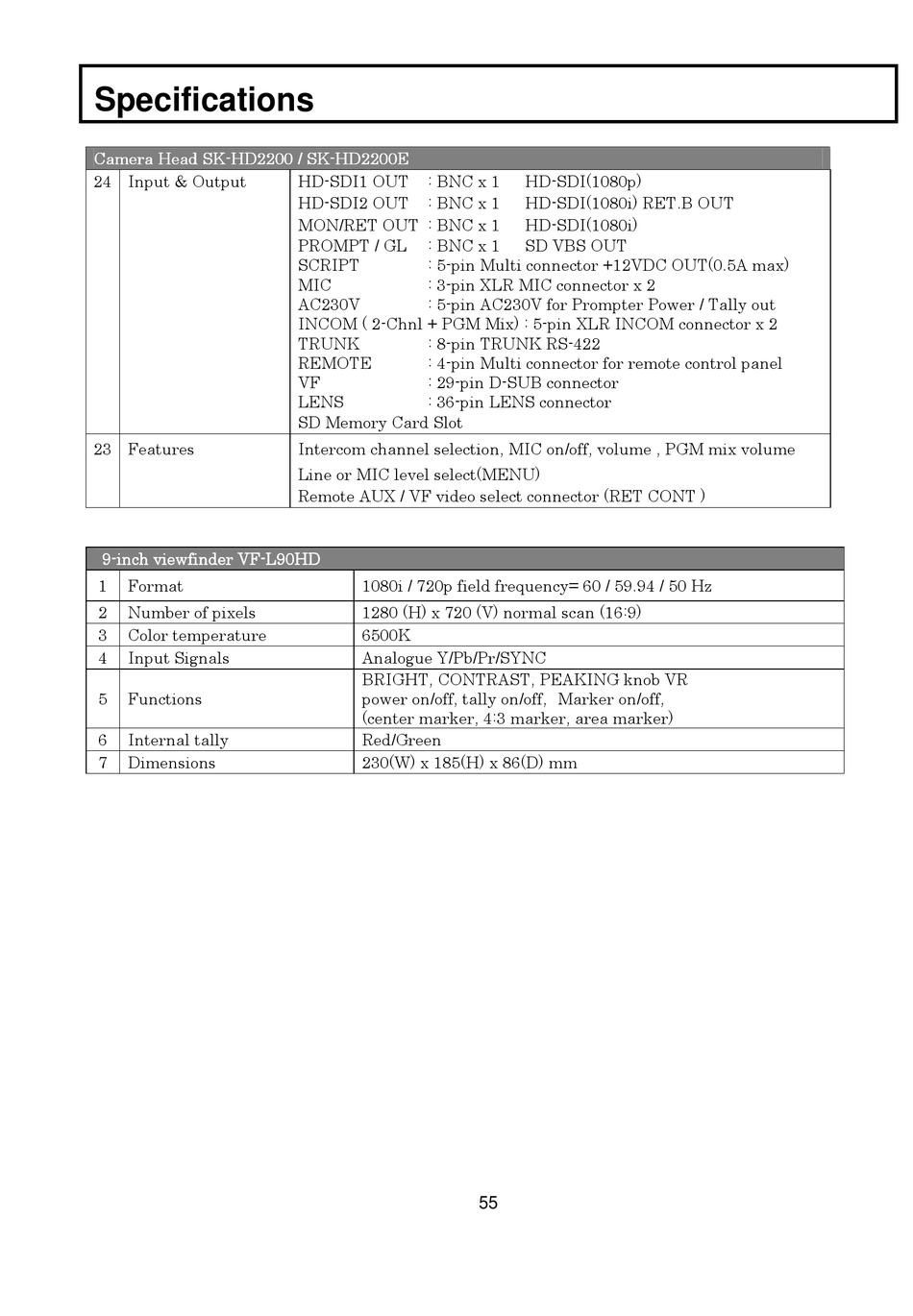

Specifications
Camera Head SK- - - - HD2
Camera Head SK
Camera Head SK
Camera Head SK
HD2
HD22 2 2 2 00
HD2
24 Input & Output
23 Features
9 9 9 9 - - - - in in in inch
ch viewfinder VF
ch ch
viewfinder VF
viewfinder VF- - - - L L L L 9 9 9 9 0 0 0 0 HD
viewfinder VF
1
Format
2
Number of pixels
3
Color temperature
4
Input Signals
5
Functions
6
Internal tally
7
Dimensions
00
00 / / / / SK
00
SK
SK- - - - HD2
SK
HD2
HD22 2 2 2 00
HD2
00E E E E
00
00
HD-SDI1 OUT
: BNC x 1
HD-SDI2 OUT
: BNC x 1
MON/RET OUT : BNC x 1
PROMPT / GL
: BNC x 1
SCRIPT
: 5-pin Multi connector +12VDC OUT(0.5A max)
MIC
: 3-pin XLR MIC connector x 2
AC230V
: 5-pin AC230V for Prompter Power / Tally out
INCOM ( 2-Chnl + PGM Mix) : 5-pin XLR INCOM connector x 2
TRUNK
: 8-pin TRUNK RS-422
REMOTE
: 4-pin Multi connector for remote control panel
VF
: 29-pin D-SUB connector
LENS
: 36-pin LENS connector
SD Memory Card Slot
Intercom channel selection, MIC on/off, volume , PGM mix volume
Line or MIC level select(MENU)
Remote AUX / VF video select connector (RET CONT )
HD
HD
HD
1080i / 720p field frequency= 60 / 59.94 / 50 Hz
1280 (H) x 720 (V) normal scan (16:9)
6500K
Analogue Y/Pb/Pr/SYNC
BRIGHT, CONTRAST, PEAKING knob VR
power on/off, tally on/off, Marker on/off,
(center marker, 4:3 marker, area marker)
Red/Green
230(W) x 185(H) x 86(D) mm
HD-SDI(1080p)
HD-SDI(1080i) RET.B OUT
HD-SDI(1080i)
SD VBS OUT
55
