Function menu

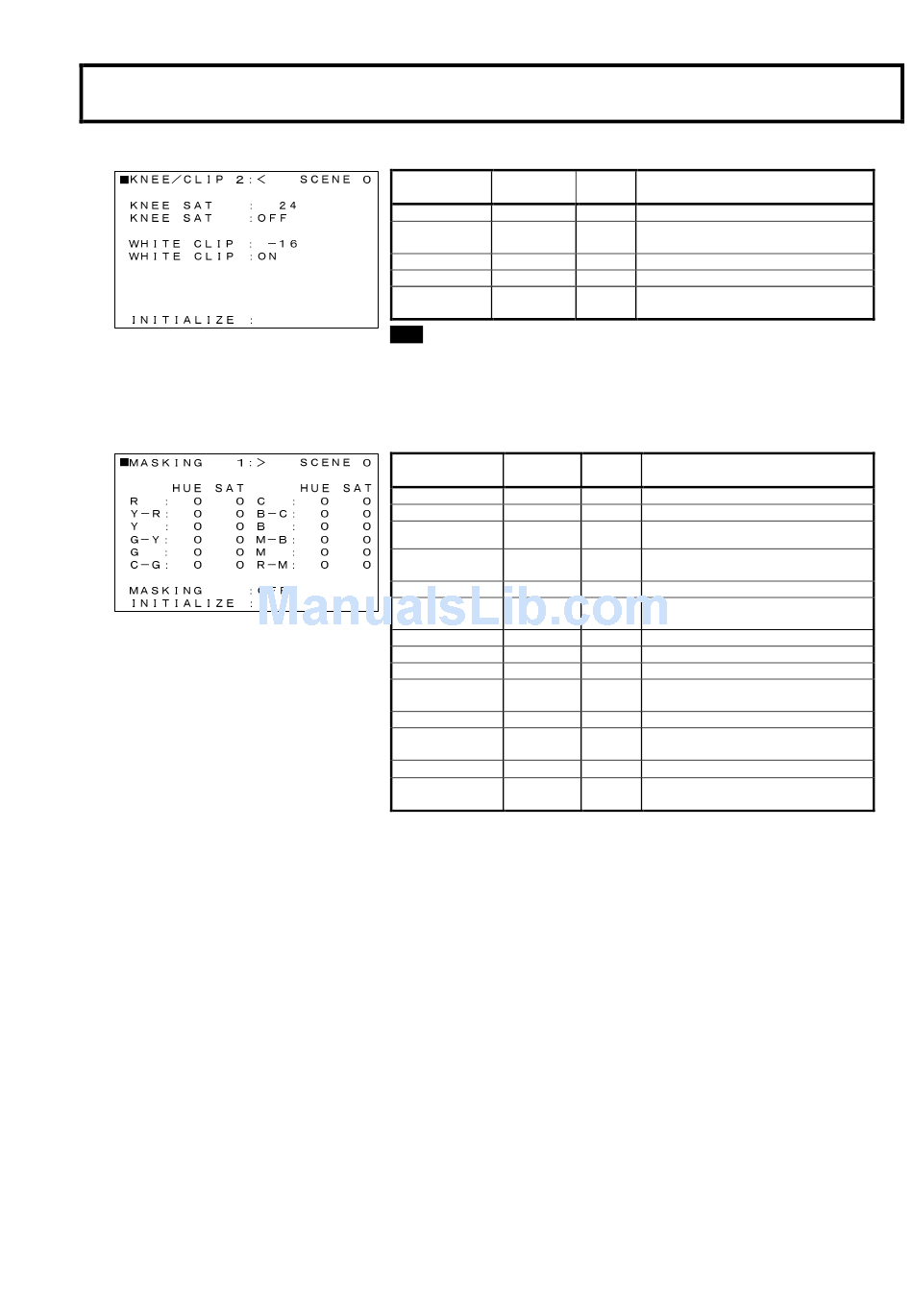

7.2.6 KNEE/CLIP 2 menu (COLOR SUB-MENU) & description.
7.2.7 MASKING 1 (COLOR SUB-MENU) & description.
Item
Setting
KNEE SAT
-128 to 127
KNEE SAT
ON,OFF
WHITE CLIP
-128 to 127
WHITE CLIP
ON,OFF
INITIALIZE
Note
Very bright portion of high light scene is reduced color saturation and changed
hue. This Knee Saturation compensates this effect and makes more natural
color reproduction.
Item
Setting
R HUE, SAT
-64 to +63
Y-R HUE, SAT
-64 to +63
Y HUE, SAT
-64 to +63
G-Y HUE, SAT
-64 to +63
G HUE, SAT
-64 to +63
C-G HUE, SAT
-64 to +63
C HUE, SAT
-64 to +63
B-C HUE, SAT
-64 to +63
B HUE, SAT
-64 to +63
M-B HUE, SAT
-64 to +63
M HUE, SAT
-64 to +63
R-M HUE, SAT
-64 to +63
MASKING
ON,OFF
INITIALIZIE
39
Initial
Description
setting
24
Adjust Knee Saturation. (*)
Knee Saturation function ON And
OFF
OFF
-16
Adjust White Clip level
ON
White Clip function ON and OFF
Press RIGHT and LEFT buttons to
- - - -
initialize KNEE/CLIP2 menu items.
Initial
Description
setting
0
Adjust Red hue, saturation
0
Adjust Yellow - Red hue, saturation
0
Adjust Yellow hue, saturation
0
Adjust Green - Yellow hue,
saturation
0
Adjust Green hue, saturation
0
Adjust Cyan - Green hue,
saturation
0
Adjust Cyan hue, saturation
0
Adjust Blue - Cyan hue, saturation
0
Adjust Blue saturation
0
Adjust Magenta - Blue hue,
saturation
0
Adjust Magenta hue, saturation
0
Adjust Red - Magenta hue,
saturation
ON
Masking ON and OFF
Press RIGHT and LEFT buttons to
- - - -
initialize MASKING1 menu items.
