1.4 VGA 15pin Connector

Pin No.
1.
2.
3.
4.
5.
6.
7.
8.

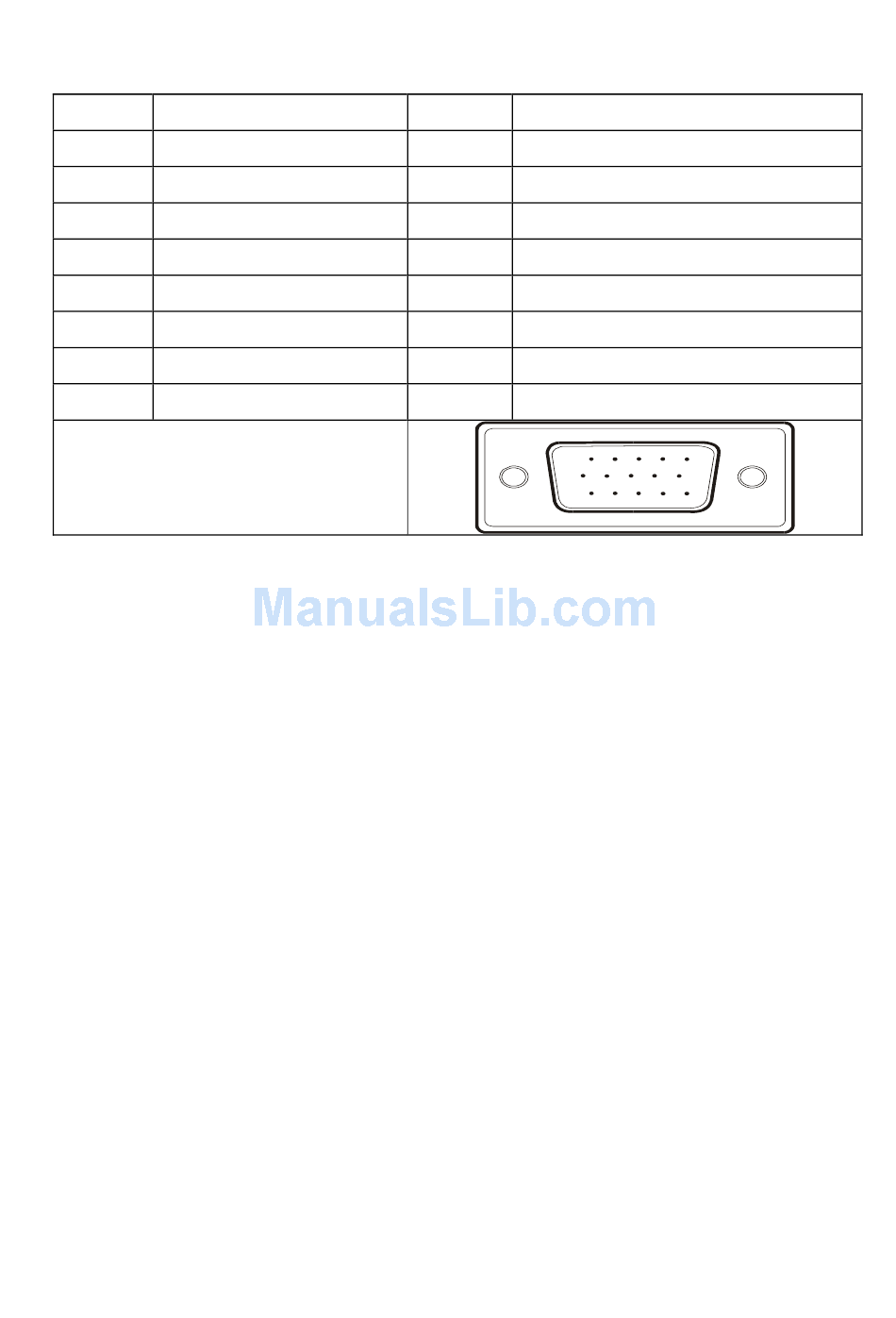

VGA Connector layout
Description
Red Input
Green Input
Blue Input
N/A
Connection detect
Red GND
Green GND
Blue GND
Pin No.
9.
10.
11.
12.
13.
14.
15.
1
6
11
6
Description
+5VDC
Logic GND
N/A
SDA- DDC-Serial Data
H Sync
V Sync
SCL- DDC-Serial Clock
5
10
15
AOCn941Splus
