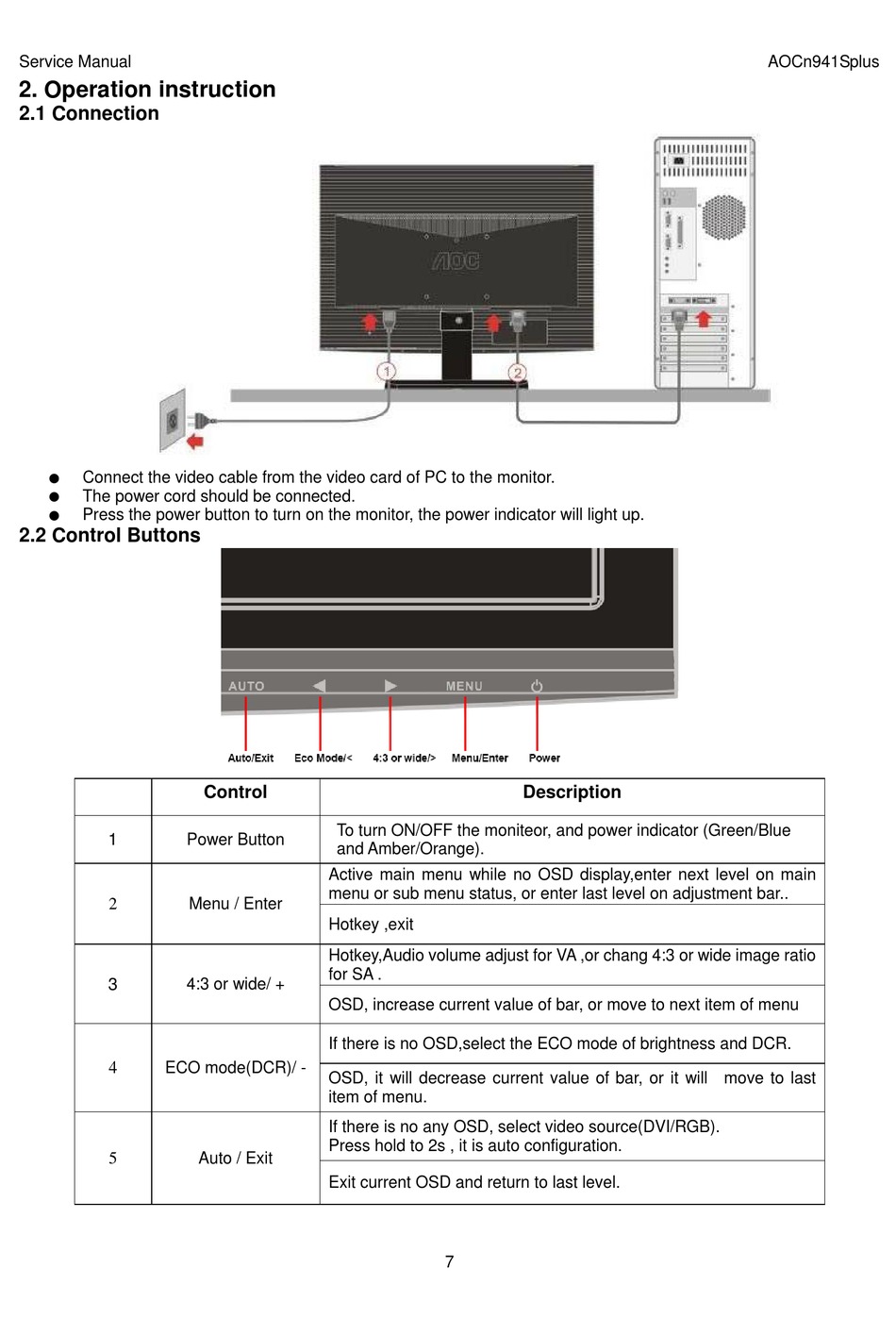

2. Operation instruction

2.1 Connection


Connect the video cable from the video card of PC to the monitor.

The power cord should be connected.

Press the power button to turn on the monitor, the power indicator will light up.

2.2 Control Buttons

1
2
3
4 ECO mode(DCR)/ -
5
Control
To turn ON/OFF the moniteor, and power indicator (Green/Blue
Power Button
and Amber/Orange).
Active main menu while no OSD display,enter next level on main
menu or sub menu status, or enter last level on adjustment bar..
Menu / Enter
Hotkey ,exit
Hotkey,Audio volume adjust for VA ,or chang 4:3 or wide image ratio
for SA .
4:3 or wide/ +
OSD, increase current value of bar, or move to next item of menu
If there is no OSD,select the ECO mode of brightness and DCR.
OSD, it will decrease current value of bar, or it will move to last
item of menu.
If there is no any OSD, select video source(DVI/RGB).
Press hold to 2s , it is auto configuration.
Auto / Exit
Exit current OSD and return to last level.
Description
7
AOCn941Splus
