Service Manual AOCn941Splus

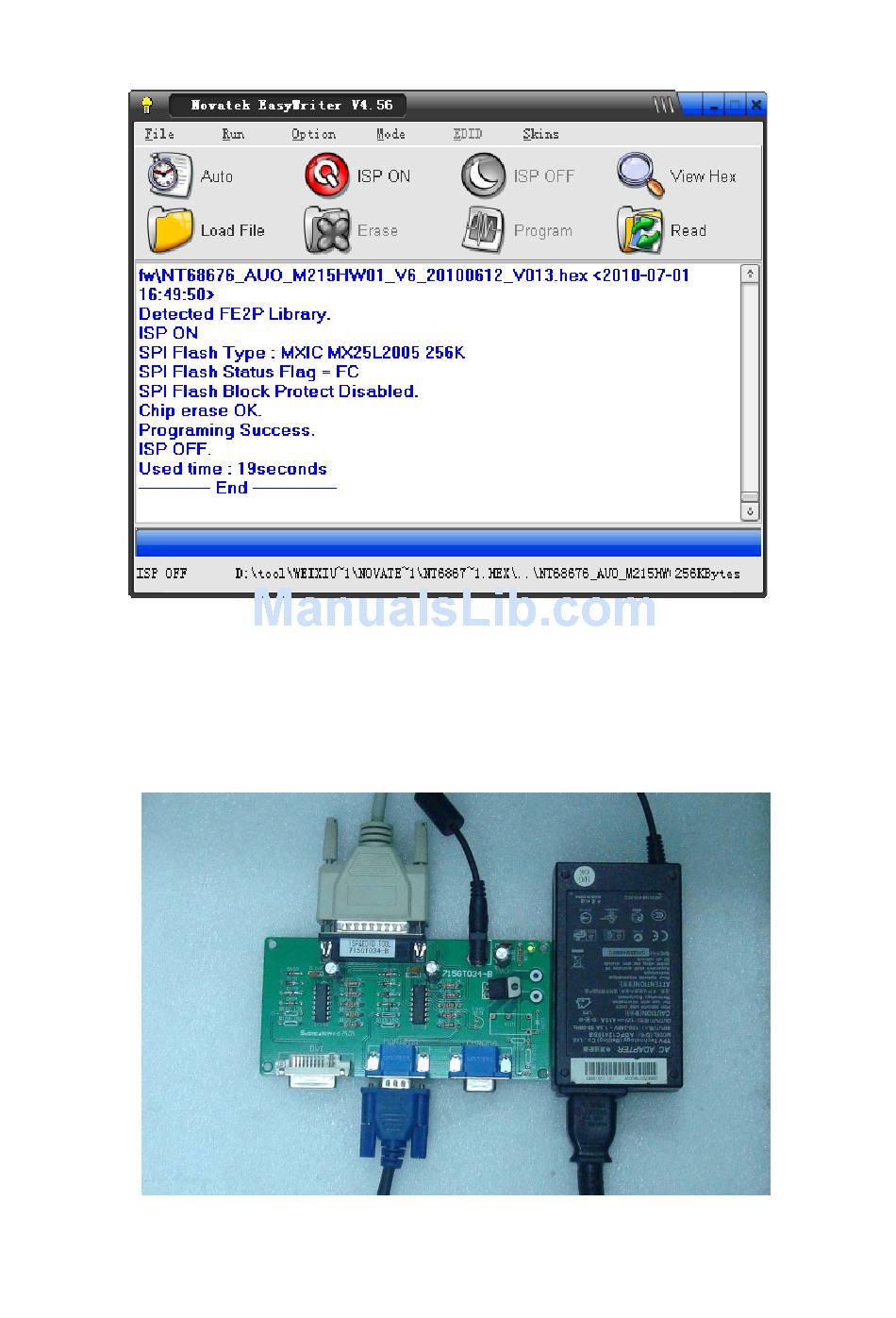

6.Click "Auto", Start writing software,Programing Success, The figures appears:

9.4 Writing DDC program step

After replacing the Main board and the Panel, Check if white-balance is within the specs ,then re-writing DDC is
necessary.
1. Prepared the PC with Windows XP system, DDC recording device (715GT034+12V)for figure below
2. Connect the DDC recording device and the PC through PC parallel port
3. setup "Port95nt" driver program to PC ,
4. select relevant program and run it, below figure will appear
5, Press "LoadFile", select EDID -model of product, and select input port;
6. key in SN,and other informatiom, key-press "Pragram" button;
43
