1 0 . G A M E / M I D I p o r t c o n n e c t o r ( 1 6 - 1 p i n G A M E 1 ) 1 0 . 1 0 . G A M E / M I D I p o r t c o n n e c t o r ( 1 6 - 1 p i n G A M E 1 ) G A M E / M I D I p o r t c o n n e c t o r ( 1 6 - 1 p i n G A M E 1 ) G A M E / M I D I p o r t c o n n e c t o r ( 1 6 - 1 p i n G A M E 1 )
1 0 . 1 0 . G A M E / M I D I p o r t c o n n e c t o r ( 1 6 - 1 p i n G A M E 1 )

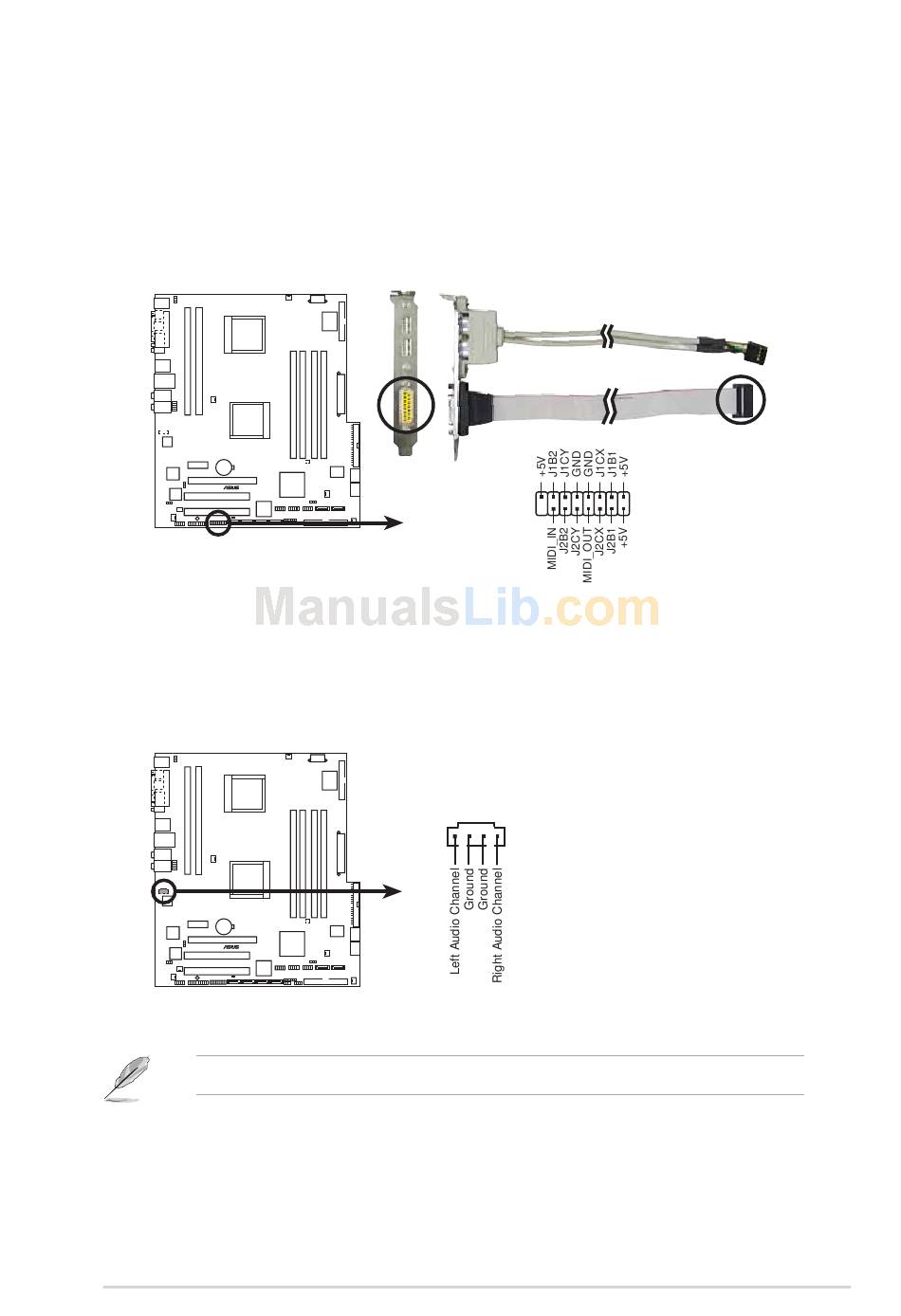

This connector is for a GAME/MIDI port. Connect the GAME cable from
the USB/GAME port module to this connector, then install the module
to a slot opening at the back of the system chassis. The GAME/MIDI
port connects a joystick or game pad for playing games, and MIDI
devices for playing or editing audio files.
®
K8N-DL
K8N-DL Game connector
1 1 . 1 1 . I n t e r n a l a u d i o c o n n e c t o r ( 4 - p i n C D 1 ) I n t e r n a l a u d i o c o n n e c t o r ( 4 - p i n C D 1 )
1 1 . I n t e r n a l a u d i o c o n n e c t o r ( 4 - p i n C D 1 ) 1 1 . 1 1 . I n t e r n a l a u d i o c o n n e c t o r ( 4 - p i n C D 1 ) I n t e r n a l a u d i o c o n n e c t o r ( 4 - p i n C D 1 )
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM.
® K8N-DL
K8N-DL Internal audio connector
The function of this connector is disabled in 8-channel mode.
A S U S T W 5 1 0 - E 2 A S U S T W 5 1 0 - E 2 A S U S T W 5 1 0 - E 2 A S U S T W 5 1 0 - E 2 A S U S T W 5 1 0 - E 2
GAME1
CD1
(Black)
4 - 1 3 4 - 1 3 4 - 1 3 4 - 1 3 4 - 1 3
