You need to remove the front panel assembly before you can remove
the floppy disk drive. Refer to section "2.5.1 Removing the front panel
assembly" for instructions.

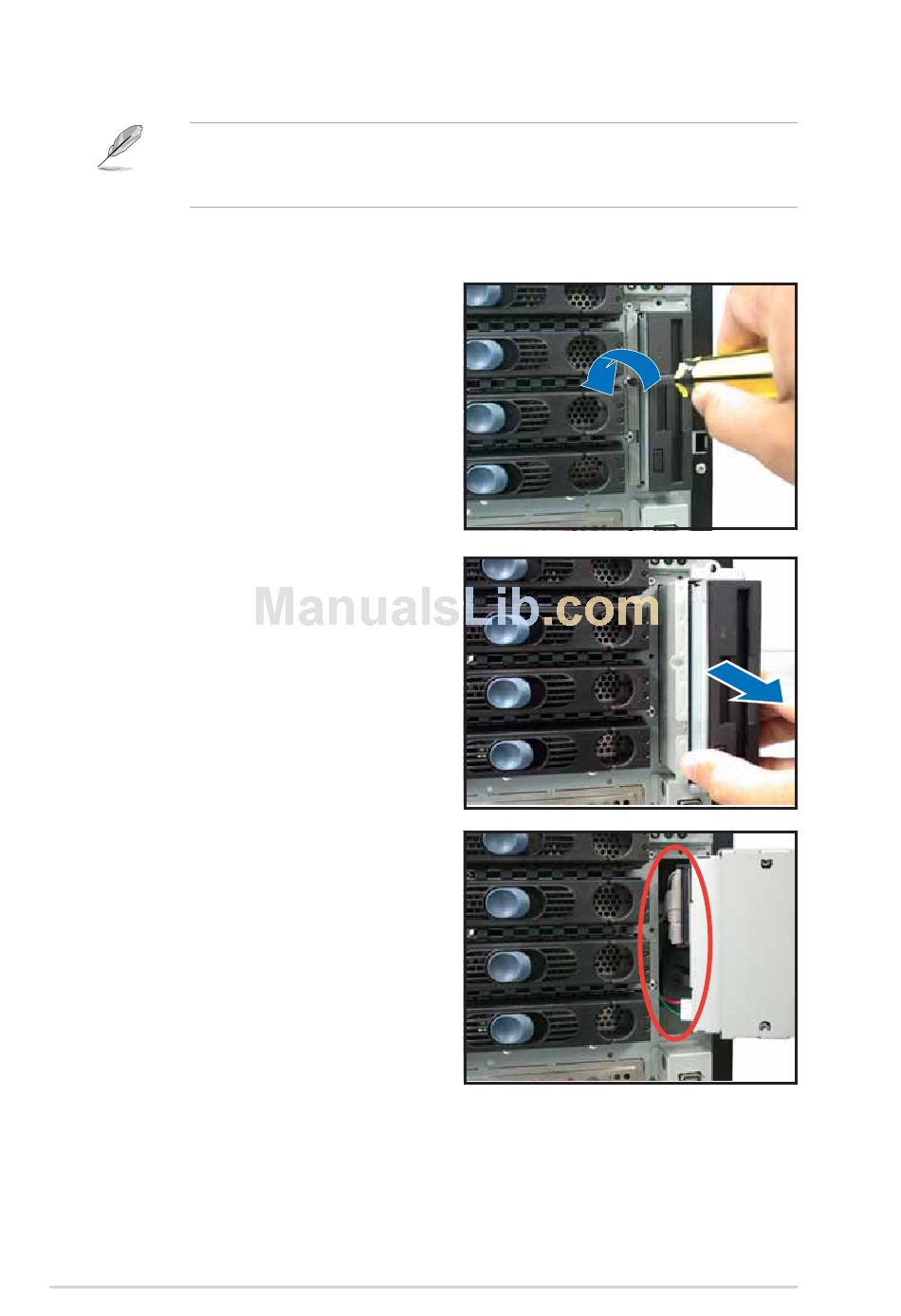

To remove the floppy disk drive:
1.
Remove the screw that
secures the drive to the
chassis.
2.
Carefully pull out the drive
from the chassis until you see
the cables connected to the
drive.
3.
Disconnect the floppy disk
cable and power cable from
the drive to completely release
the drive.
