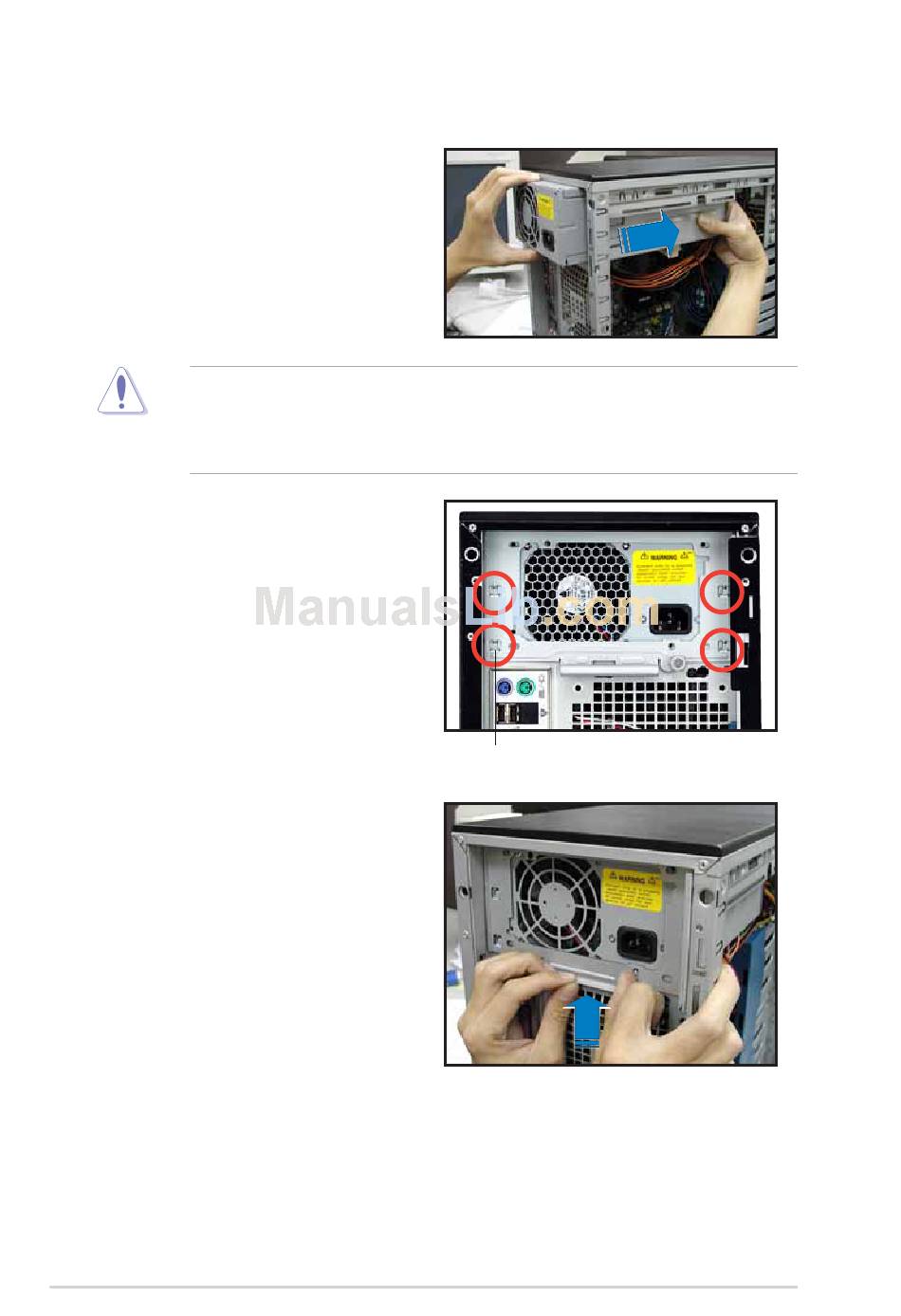

To install a power supply unit:
1. Firmly hold the power supply
unit and insert it into the
power supply cage.
2. Push the power supply unit all
the way in until its outer end
aligns with the rear panel.
Be careful with the power supply cables when inserting the power supply
module into the cage. Due to space constraints, the cables may get
entangled with the installed components or other cables, causing the
cables to break!
3. Place the metal plate flat on
the outer end of the power
supply module, flushed to the
top of the chassis, while
matching the four hooks with
their corresponding holes on
the rear panel.
4. Hold the metal plate bar and
push it upward to lock the
hooks to their holes. At the
same time, you may also push
the top of the metal plate to
fit it completely.
5. Secure the metal plate with
the thumb screw.
2 - 4 4 2 - 4 4 2 - 4 4 2 - 4 4 2 - 4 4
H o o k m a t c h e d t o a h o l e H o o k m a t c h e d t o a h o l e
H o o k m a t c h e d t o a h o l e H o o k m a t c h e d t o a h o l e H o o k m a t c h e d t o a h o l e
C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p
