Installing an HDD dummy cover

Installing an HDD dummy cover
Installing an HDD dummy cover Installing an HDD dummy cover Installing an HDD dummy cover
The HDD dummy covers come pre-installed on the front panel bezel. In
case you removed the covers, follow these steps to re-install them.
To install an HDD dummy cover:

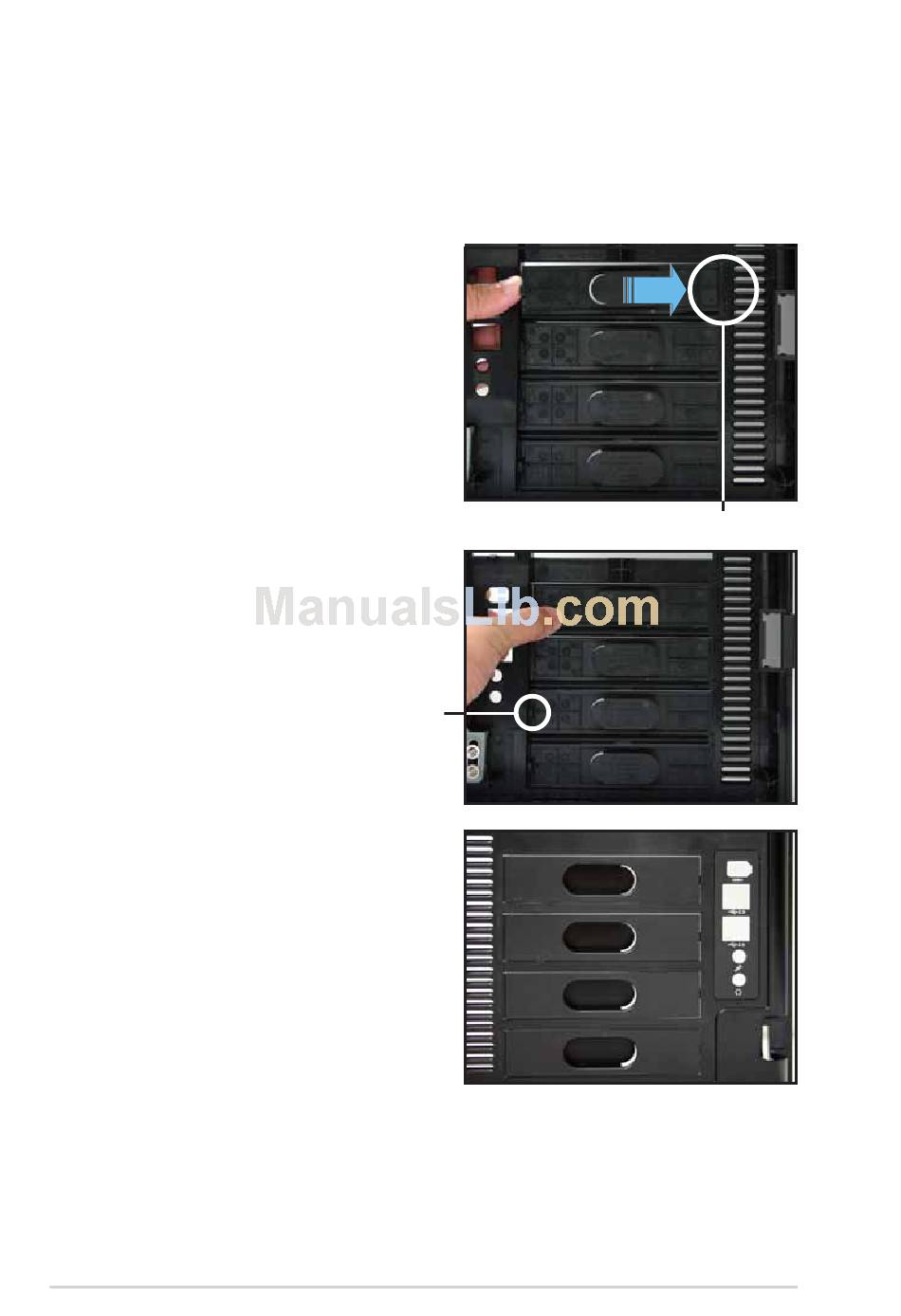

1. From the inside of the front
panel assembly, insert the flat
end of a dummy cover into the
slot as shown. The end with the
hook tab should be close to the
front panel LEDs.
2. Press the dummy cover into the
slot opening until the hook tab
clicks in place.
3. When installed, the dummy cover
appears as shown.
2 - 2 2 2 - 2 2 2 - 2 2 2 - 2 2 2 - 2 2
H o o k t a b H o o k t a b H o o k t a b H o o k t a b H o o k t a b
C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p
F l a t e n d F l a t e n d F l a t e n d F l a t e n d F l a t e n d
