2.10.3 SATA backplane

2.10.3 2.10.3 SATA backplane SATA backplane SATA backplane
2.10.3 2.10.3 SATA backplane
To remove the SATA backplane:
1. Remove the HDD blower case. Refer to section "2.10.2 HDD fan" for
instructions.
2. Disconnect all cables from the
SATA backplane.
When disconnecting a cable,
hold and firmly pull the cable
plug. DO NOT pull the cable
itself. Doing so may damage
the cable!

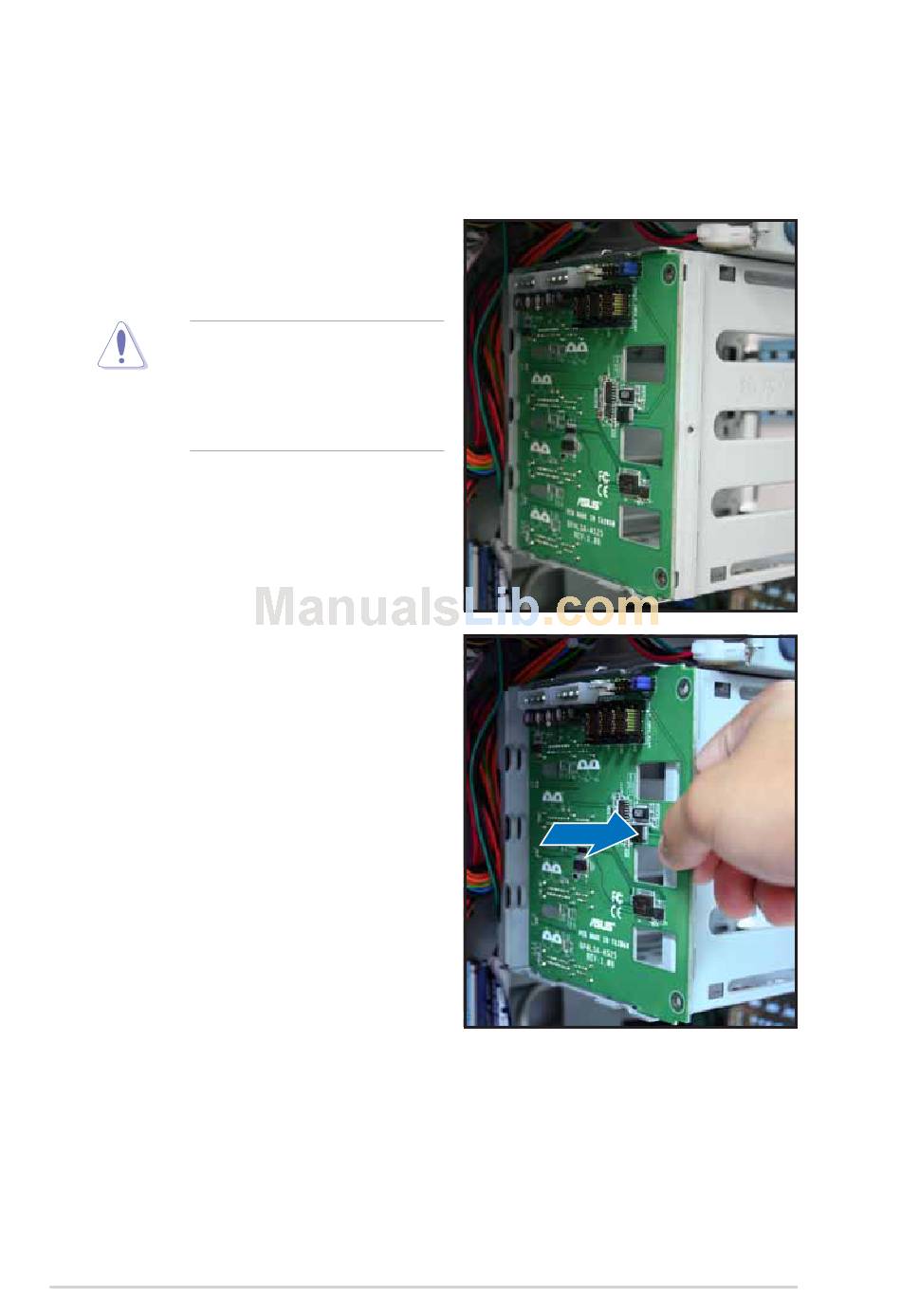

3. From the inner edge, push the
backplane outward so that the
outer edge protrudes slightly
from the slot.
4. From the outer edge, firmly hold
the backplane and carefully slide
it out.
