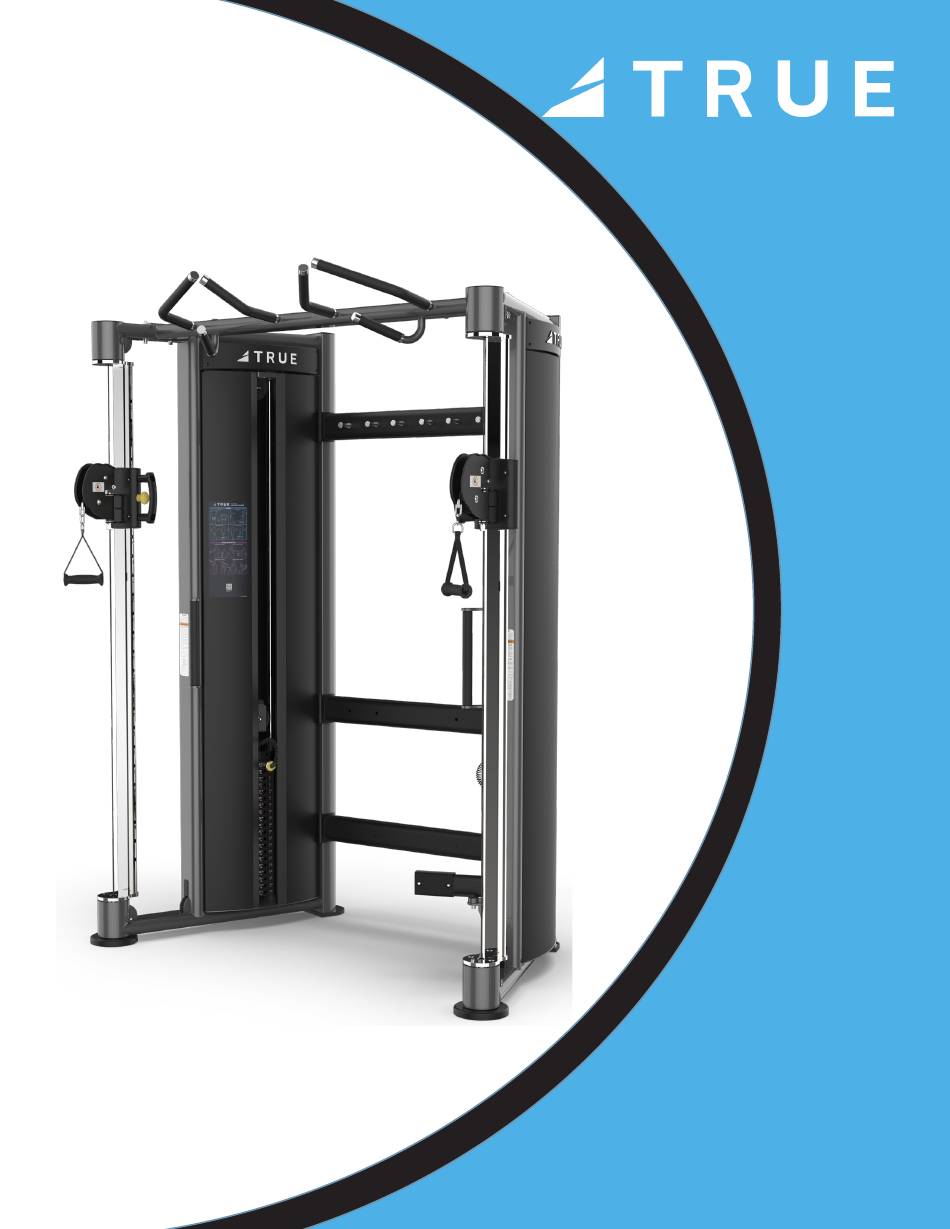

  • Page 1 FT-900 Functional Trainer OWNER’S MANUAL Model # FT-900 Revision 040519...
  • Page 2 Технические характеристики, особенности и программного обеспечения могут быть изменены без предварительного уведомления. Для получения самой последней на сегодняшний день руководство по эксплуатации пожалуйста, посетите www.truefitness.com .Для документов на другие языки, пожалуйста, посетите www.truefitness.com/resources/document-library/ Page # 2 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 3 The proud manufacturing tradition of quality and the culture of innovation at TRUE have given rise to a full line of extraordinary cardio and strength equipment. As a result, people all over the world are benefiting from the TRUE experience.

  • Page 4: Table Of Contents

    CHAPTER 4: CUSTOMER SERVICE ..........................35 • CONTACTING SERVICE: ......................35 • CONTACTING SALES: .......................35 • REPORTING FREIGHT OR PARTS DAMAGE: ..............36 CHAPTER 5: WARRANTY INFORMATION: ......................37 Page # 4 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 5: Chapter 1: Safety Instructions

    9. If the machine appears damaged or inoperable, contact a facility staff member to place an “OUT OF ORDER, DO NOT USE” sign on the machine until it is repaired. Only use TRUE supplied replacement components to service this machine.
  • Page 6 3. Install this piece of equipment on a solid level surface that does not deviate more than 1/8” over a 10’ distance (or as defined and required by local building and architectural codes.) 4. TRUE strongly recommends that all equipment be anchored to the floor to prevent movement and increase stability.
  • Page 7 • Frames and Lifting Arms: Inspect weekly for integrity and function. Replace any component at first signs of wear. Use only TRUE supplied components. 4. Replace any warning label at the first sign of wear. Labels and the facility safety sign may be obtained from TRUE.
  • Page 8 Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your TRUE dealer or TRUE Fitness Technology at (800)883-8783 or service@truefitness.com. Page # 8 of 39...

  • Page 9: Commerical Maintenance Schedule

    CLEAN: Guide rods and lubricate with a teflon lubricant if equipped. CLEAN: Upholstery LUBRICATE: Pivot bearings and linear bearings. REPLACE: Cables if equipped. Page # 9 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 10: Chapter 2: Assembly Guide

    For standard 310 lb. stack it is 27.53 lb/ft2 ( 134.42 kg/m2) COMPLIANCES: This equipment complies with all fitness product standards. For a complete list of compliances, please visit www. TrueFitness.com. Page # 10 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 11: Required Tools

    CHAPTER 2: ASSEMBLY GUIDE REQUIRED TOOLS: Ratchet Handle Socket Head Hex Bit Sockets Open Ended wrench Allen wrench (supplied) Rubber Mallet Step Ladder LABELS: Page # 11 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 12: Pre-Assembly Checklist

    One box holds the hardware and the XFT90-FSD202 LEFT FRT REAR other box holds the top caps. SHROUD FT90-FSD204X FRONT LEFT SHROUD W PROCEDURE Page # 12 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 13 XFT90-GRD101 GUIDE ROD XFT90-TPL100X TOP CAP ASSEMBLY XFT90-FSD201 FRT RT REAR SHROUD FT90-FSD203X FRONT RIGHT SHROUD W PROCEDURE LABEL Page # 13 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 14: Assembly Steps

    SH SCREW, 3/8”-16, 3/4” and right upright assemblies. C 754C 3/8” FLAT WASHER 13/16 OD X .07 THK C 749SS 3/8 MED SPLIT LOCKWASHER S.S. Page # 14 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 15 C 754C 3/8” FLAT WASHER 13/16 OD X .07THK C 749SS 3/8 MED SPLIT LOCKWASHER S.S. XFT90-CBR200X CONNECTING FRAME CROSS BAR ASSEMBLY Page # 15 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 16 C 754C 3/8” FLAT WASHER 13/16 OD X .07 THK XFT90-CBR300X CHIN BAR X ASSY C 766A NYLON LOCK NUT 3/8- 16 X 17/64 Page # 16 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 17 TOP PLATE PLY HSG ASSY the weight stacks on the left and right upright assemblies. Note: The weight plate boxes are four weight plates per box. Page # 17 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 18 NYLON LOCKNUT 3/8- and right upright assemblies. 16 X 17/64 XFT90-GRD200 GUIDE ROD BRACKET C 754C 3/8” FLAT WASHER 13/16 OD X .07 THK Page # 18 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 19 16 X 17/64 PULLEY 89MM DIA Note: This assembly step applies to the left and 2000PL500 right upright assemblies. Page # 19 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 20 PULLEY 89MM DIA 2000PL500 Note: This assembly step applies to the left and C 761ASS 3/8-16 X 1-3/4 BHCS SS right upright assemblies. Page # 20 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 21 Route the cable as shown below. Note: Use the provided pull string to route the cable through the top of the left and right upright assemblies. Page # 21 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 22 Strength FT-900 CHAPTER 2: ASSEMBLY GUIDE REQUIRED ASSEMBLY STEPS: Step 9 (Cable Routing): Route the cable as shown below. Page # 22 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 23 Strength FT-900 CHAPTER 2: ASSEMBLY GUIDE REQUIRED ASSEMBLY STEPS: Step 10 (Cable Routing): Route the cable as shown below. Page # 23 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 24 Route the cable as shown below. Note: Use the provided pull string to route the cable through the bottom of the left and right upright assemblies. Page # 24 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 25 REQUIRED ASSEMBLY STEPS: Step 12 (Cable Routing): Insert the cable end into the bolt identified below and then secure the bolt to the pulley housing. Page # 25 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 26 Description Quantity C 631 SHCS 3/8-16 X 3 Note: This assembly step applies to the left and SM-2000PL500 PULLEY 89MM DIA right upright assemblies. Page # 26 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 27 C 754C 3/8” FLAT WASHER and right upright assemblies. 13/16 OD X .07THK C 766A NYLON LOCKNUT 3/8-16 X 17/64 SM-2000PL500 PULLEY 89MM DIA Page # 27 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 28 Note: This assembly step applies to the left and FT90-FSD204X FRONT LEFT right upright assemblies. SHROUD W PROCEDURE LABEL C 992 SHCS #10-32 x 1/2’ Page # 28 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 29 XFT90-FCV101 UPRIGHT COVER hardware. C 992 SHCS #10-32 x 1/2’ Note: This assembly step applies to the left and right upright assemblies. Page # 29 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 30 FT900 XFT90-0003 SELECTOR PIN Note: This assembly step applies to the XFT90-0004 PLUG left and right upright assemblies. B1110A HANDLE NYLON STRAP - BLACK Page # 30 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 31: Chapter 3: Care & Maintenance

    The following items are critical to the safety of users and maintenance staff as well as ensuring the optimum performance of the machines. These inspections should be performed each day before the equipment is subject to use. TRUE Fitness is not responsible for performing or scheduling regular maintenance or inspections.

  • Page 32: Other Scheduled Preventive Maintenance

    CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Fitness Warranty. Never pour or spray liquids on any part of the equipment. Allow the equipment to dry completely before using.

  • Page 33: Cable Inspection & Maintenance

    If any of these conditions are apparent, the machine should immediately be taken out of service and repaired. Be sure to use only cables supplied by TRUE Fitness. DO NOT use cables that have fittings attached with hand- crimp tools.
  • Page 34 Ensure that the snap-link opens and closes easily and is fully engaged when closed. Replace the snap-link as needed. Page # 34 of 39 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com Truefitness.com / 800.426.6570 / 636.272.7100...

  • Page 35: Chapter 4: Customer Service

    HOURS OF OPERATION: 8:30 A.M. - 5:00 P.M. CST E-MAIL: service@truefitness.com CONTACTING SALES: Interested in TRUE products? Please contact us with any sales or product inquires so that we may direct you to the appropriate sales representative to answer your questions. TRUE FITNESS HOME OFFICE 865 HOFF ROAD ST.

  • Page 36: Reporting Freight Or Parts Damage

    Obvious damage to external packaging / internal product. Please refuse the shipment and it will be returned to TRUE Fitness by the carrier. Contact the TRUE Fitness customer support team by calling 800.883.8783 or sales support team by calling 800.426.6570 Monday-Friday during normal hours of operation to notify us that the shipment has been refused.

  • Page 37: Chapter 5: Warranty Information

    Hours of operation 8:30am - 5:00 pm CST workmanship for a 10 years. The frame is warranted for labor and freight (for parts shipped from TRUE) for one year from date of purchase. * This limited warranty on structural frame does not include paint or coatings.
  • Page 38 Product, this Limited Warranty will be void unless the written authorization The FT-900 comes with one serial number on the base of the of TRUE is first obtained). machine. Please write down your serial number below and keep 5.
  • Page 39 If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to TRUE Fitness within 30 days from the date of equipment installation.
