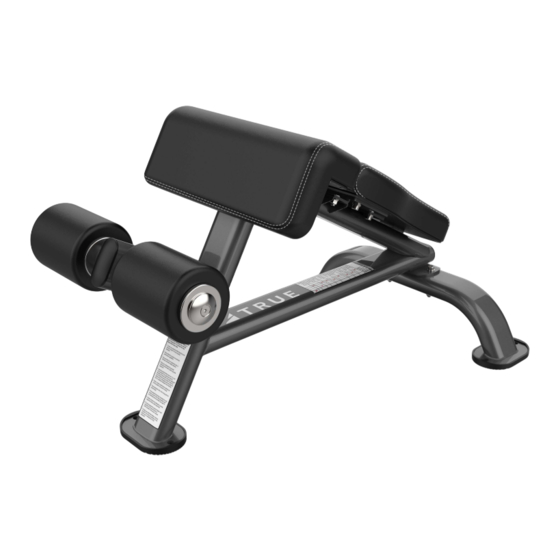

True FORCE Owner's Manual

Ab bench
Hide thumbs Also See for FORCE:

Advertisement

Quick Links

Download this manual
*Assembly Guide & Warranty Card Included
AB BENCH
OWNER'S MANUAL
Model # SF1010
Revision 071621

Advertisement

loading
Need help?

Need help?

Do you have a question about the FORCE and is the answer not in the manual?

Questions and answers

Related Manuals for True FORCE

Summary of Contents for True FORCE

  • Page 1 *Assembly Guide & Warranty Card Included AB BENCH OWNER’S MANUAL Model # SF1010 Revision 071621...
  • Page 2 FORCE STRENGTH OWNERS MANUAL IMPORTANT: All Products shown are prototype. Actual product delivered may vary. Product specifications, features & software are subject to change without notice. For the most up to date owner’s manual please visit www.truefitness.com. For documents in additional languages please visit www.truefitness.com/resources/document-library/ IMPORTANTE: Todos los productos mostrados son prototipos.
  • Page 3 The proud manufacturing tradition of quality and the culture of innovation at TRUE have given rise to a full line of truly extraordinary treadmills, indoor cycles and elliptical cross-trainers. As a result, people all over the world are benefiting from the TRUE experience.

  • Page 4: Table Of Contents

    FORCE STRENGTH OWNERS MANUAL TABLE OF CONTENTS: Chapter 1: Safety Instructions Chapter 5: Customer Service Safety Instructions Contacting Service Space Requirements Contacting Sales Working Dimensions Reporting Freight Claims or Parts Damage Warning Decals Chapter 6: Additional Information Proper Training Position...

  • Page 5: Chapter 1: Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS SAVE THESE SAFETY INSTRUCTIONS Force series strength equipment is intended for a commercial or institutional setting. This owner’s manual should be accessible to all personal trainers, staff members, and members. WARNING: All EXERCISERS MUST READ ALL INSTRUCTIONS BEFORE USING STRENGHT EQUIPMENT.
  • Page 6 • Never insert objects into any openings in this product. If an object should drop inside, carefully retrieve it. If the item cannot be reached, contact TRUE Customer Service. • Never place liquids of any type directly on the unit except in the accessory tray or bottle holders. Containers with lids are recommended.

  • Page 7: Space Requirements

    SPACE REQUIREMENTS: TRUE’s recommendation is to leave a 40” (1.0m) safety zone on all sides of the unit. Additionally for Functional Trainers there should be enough room left for full extension of all cable in all directions. (See Fig 1)

  • Page 8: Warning Decals

    WARNING DECALS: WARNING: Replace warning labels that may be worn, damaged or missing. *To replace any worn or missing warning decals contact TRUE FITNESS by one of the following: www.truefitness.com or contact customer service at 800-883-8783. FORCE Weight Stack Labels: SWLAB175 (175 lb. Regular Weight Stack) and SWLAB255 (255 lb. Heavy Weight Stack).

  • Page 9: Chapter 2: Assembly Guide

    Please use the various lists in this manual to make sure that all parts have been included in your shipment. • When ordering, use part number and description from the lists. Use only True Fitness replacement part when servicing. Failure to do so will void your warranty and could result in personal injury or damage your machine.

  • Page 10: Pre-Assembly Checklist

    CHAPTER 2: ASSEMBLY GUIDE PRE-ASSEMBLY CHECKLIST: Box One Contents: Item No. Description QTY. Main Frame Brace Frame Ankle Tube Angled Bracket Seat Pad Support Seat Pad Leg Pad Ankle Pads Hardware Pack (not pictured) is included in box one as well. Truefitness.com / 800.426.6570 / 636.272.7100...

  • Page 11: Assembly Steps

    CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS: STEP 1 Brace Frame: ITEM Description 1. Attach the Brace Frame to the Main Frame as M10x80 Socket Head Cap Screw shown below. Flat Washer 11x20x2 Nylon Lock Nut M10 Main Frame Brace Frame Truefitness.com / 800.426.6570 / 636.272.7100...
  • Page 12 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 2 Ankle Tube: ITEM Description 1. Install the Ankle Tube and secure with set M8x8 Socket Set Screw screws as shown Main Frame Ankle Tube Truefitness.com / 800.426.6570 / 636.272.7100...
  • Page 13 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 3 Angled Bracket & Seat Pad Support: ITEM Description 1. Attach the Angled Bracket and Seat M10x25 Flat Head Cap Screw Pad Support as shown below. Flat Washer 11x20x2 M10 Nylon Lock Nut M10 Main Frame Angled Bracket Seat Pad Support...
  • Page 14 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 4 Ankle Pads: ITEM Description 1. Install the Ankle Pads onto the Ankle Tube as Aluminum Shield 90x26.2x8.5 shown. Aluminum Cap 60x10.5x10.9 M10x40 Flat Head Cap Screw Ankle Pads Ankle Tube Truefitness.com / 800.426.6570 / 636.272.7100...
  • Page 15 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 5 Leg Pad: ITEM Description 1. Attach the Leg Pad onto the Angled Bracket M10x30 Socket Head Cap Screw as shown below. Flat Washer 11x20x2 Leg Pad Truefitness.com / 800.426.6570 / 636.272.7100...
  • Page 16 CHAPTER 2: ASSEMBLY GUIDE STEP 6 Seat Pad: ITEM Description 1. Attach the Seat Pad onto the Seat Pad Support M10x30 Socket Head Cap Screw as shown below. Flat Washer 11x20x2 Seat Pad Truefitness.com / 800.426.6570 / 636.272.7100...

  • Page 17: Chapter 3: Product Overview

    CHAPTER 3: PRODUCT OVERVIEW PRODUCT OVERVIEW: Leg Pad Seat Pad Ankle Pads Truefitness.com / 800.426.6570 / 636.272.7100...

  • Page 18: Chapter 4: Care & Maintenance

    The following items are critical to the safety of users and maintenance staff as well as ensuring the optimum performance of the machines. These inspections should be performed each day before the equipment is subject to use. TRUE Fitness is not responsible for performing or scheduling regular maintenance or inspections.

  • Page 19: Cleaning The Equipment

    CAUTION Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Fitness Warranty. Never pour or spray liquids on any part of the equipment. Allow the equipment to dry completely before using.

  • Page 20: Chapter 5: Customer Service

    HOURS OF OPERATION: 8:30 A.M. - 5:00 P.M. CST E-MAIL: service@truefitness.com CONTACTING SALES: Interested in TRUE Products? Please contact us with any sales or product inquires so that we may direct you to the appropriate sales representative to answer your questions. TRUE FITNESS HOME OFFICE 865 HOFF ROAD ST.

  • Page 21: Reporting Freight Claims Or Parts Damage

    Severe Damage: Obvious damage to external packaging / internal product. Please refuse the shipment and it will be returned to TRUE Fitness by the carrier. Contact the TRUE Fitness customer support team by calling 800.883.8783 or sales support team by calling 800.426.6570 Monday-Friday during normal business hours to notify us that the shipment has been refused.

  • Page 22: Chapter 6: Additional Information

    Hours of operation 8:30am - 5:00 pm CST Product. The frame is warranted for labor and freight (for parts shipped from TRUE) for one year from date of purchase. * This limited warranty on structural frame does not include paint or coatings.
  • Page 23 Warranty to be valid. 2. This Limited Warranty applies to the product only while the The Force Strength Line comes with one serial number on the Product remains in the possession of the original purchaser base of the machine. Please write down your serial number and is not transferable.

  • Page 24: Warranty Registration

    If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to TRUE Fitness within 30 days from the date of equipment installation.
