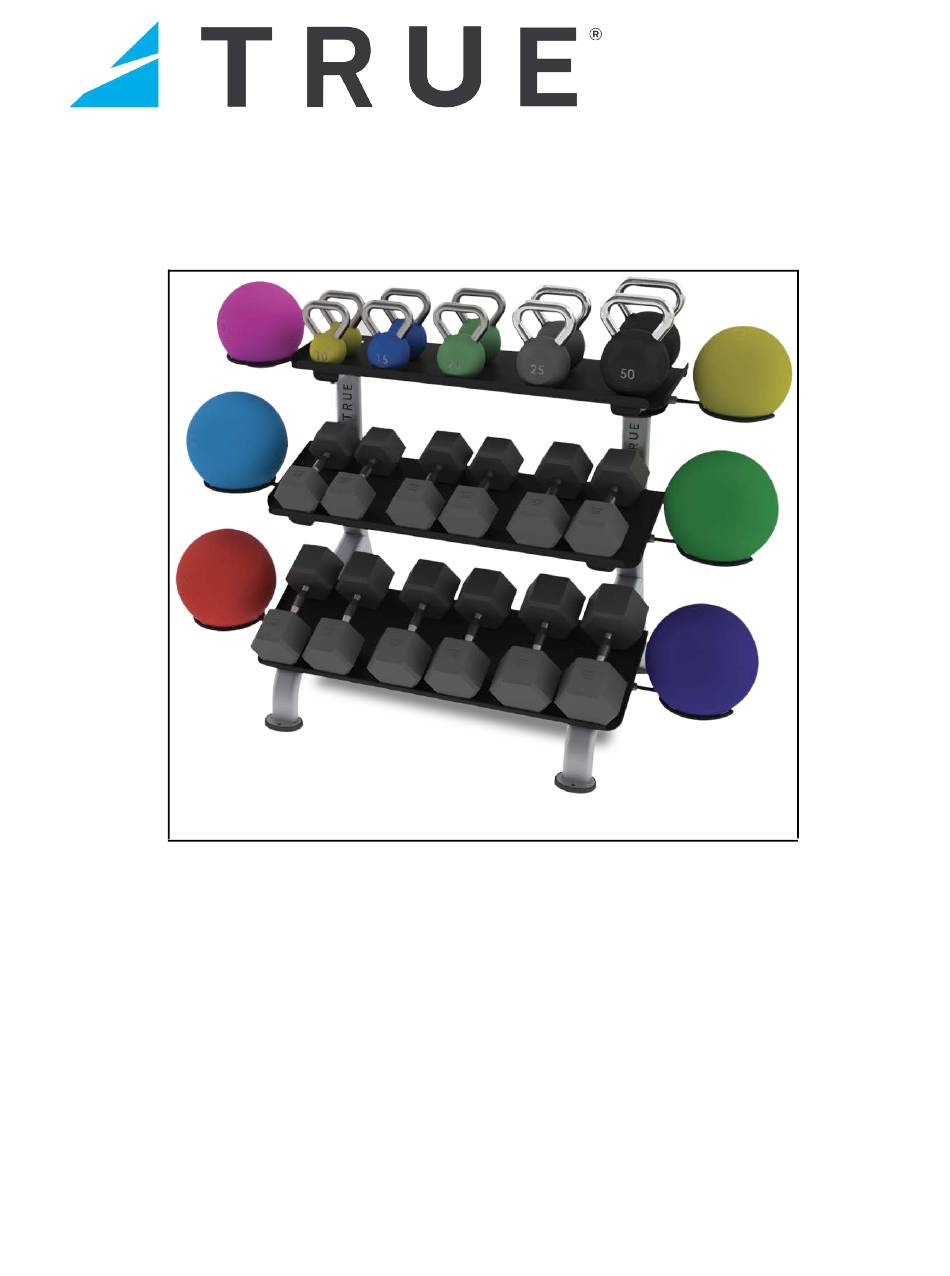

- Page 1 HOWN WITH OPTIONAL MEDICINE BALL HOLDERS FS-24 UMBBELL SSEMBLY ANUAL Model: FS-24 REV: 030620...
- Page 2 TRUE experience. Innovation across the full product line has made TRUE successful and is a trademark of the TRUE heritage. TRUE’s patented Heart Rate Control technology is just one of the remarkable ways we deliver simple and superior performance every user can enjoy, and most importantly, use to achieve personal health and fitness goals.
-
Page 3: Table Of Contents
ABLE ONTENTS ......................AFETY ..............ENERAL ARE AND AINTENANCE & W ............... ACHINE IMENSIONS EIGHTS ......................SSEMBLY ....................ARTS IAGRAMS ................. ARRANTY........ -
Page 4: Safety
9. If the machine appears damaged or inoperable, contact a facility staff member to place an “OUT OF ORDER, DO NOT USE” sign on the machine until it is repaired. Only use TRUE supplied replacement components to service this machine. - Page 5 3. Install this piece of equipment on a solid level surface that does not deviate more then 1/8” over a 10’ distance (or as defined and required by local building and architectural codes. 4. TRUE strongly recommends that all equipment be anchored to the floor to prevent movement and increase stability.
- Page 6 • Frames and Lifting Arms: Inspect weekly for integrity and function. Replace any component at first signs of wear. Use only TRUE supplied components. 4. Replace any warning label at first sign of wear. Labels and the Facility Safety Sign may be obtained from TRUE free of charge.
-
Page 7: General Care And Maintenance
Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your TRUE dealer or TRUE Fitness Corp. at (800) 883-8783 or service@truefitness.com. -
Page 8: Machine Dimensions & Weights

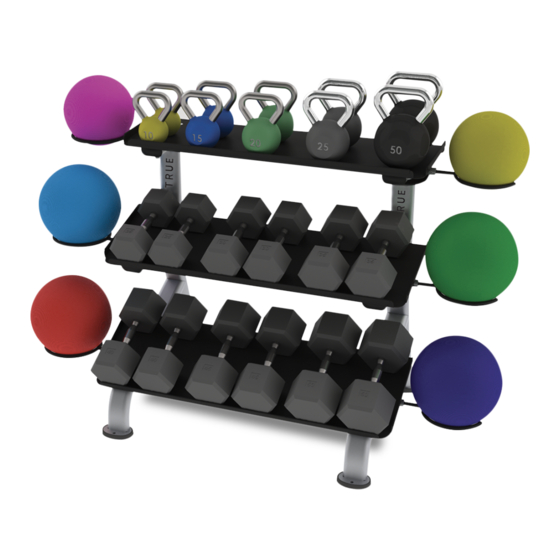

& W ACHINE IMENSIONS EIGHTS Carton Size: 51” X 32” X 8” 130 cm x 81 cm x 20 cm Carton Weight (as shipped) = 128 lbs (58 kg.) Assembled Weight (as shown) = 113 lbs (51 kg.) This dumbbell rack is designed to hold 10 pair of hex dumbbells, 5 - 50 lbs in increments of 5 lbs. The top tray can also hold kettle bells. -
Page 9: Assembly
SSEMBLY Required Tools: • (1) 7/32” [5.5 mm] allen hex wrench Loosely assemble both the frames and trays with the flat head screws. To prevent the assembly from twisting, incrementally tighten the 12 screws a little at a time. Keep rotating the tightening sequence until all of the screws are fully tightened. -
Page 10: Parts Diagrams
ARTS IAGRAMS... -
Page 11: Warranty
Hours of operation 8:30am - 5:00 pm CST workmanship for a 10 years. The frame is warranted for labor and freight (for parts shipped from TRUE) for one year from date of purchase. * This limited warranty on structural frame does not include paint or coatings. - Page 12 (if anyone other than a TRUE authorized dealer/ technician initially assembles and installs the Product, this The FS-24 comes with one serial number on the base of the Limited Warranty will be void unless the written authorization machine. Please write down your serial number below and keep of TRUE is first obtained).
- Page 13 If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to TRUE Fitness within 30 days from the date of equipment installation.
