Technical Specifications - Transition Networks E-FL-HB-0400 User Manual

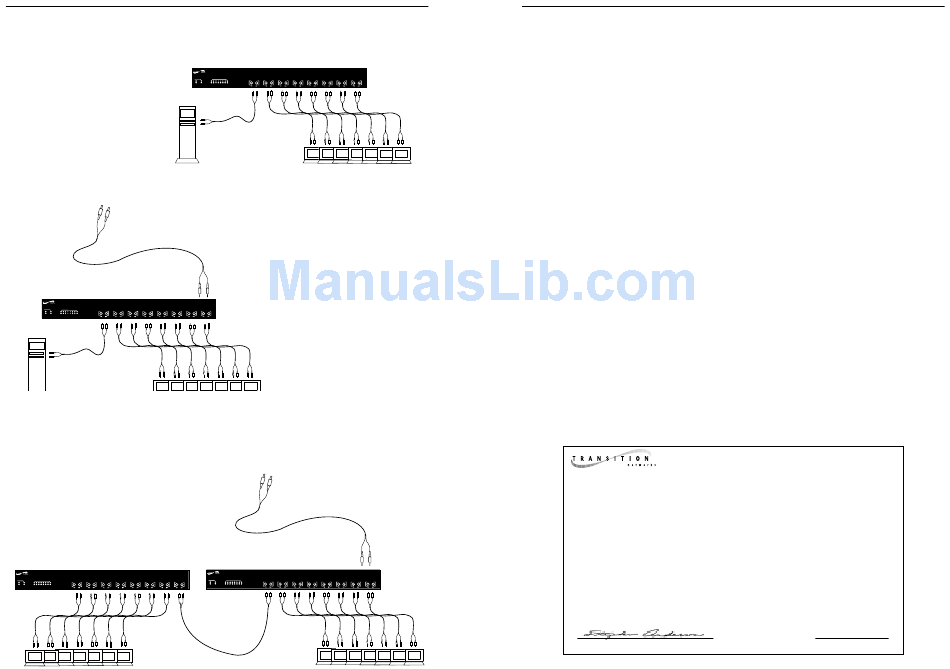

E-FL-HB-0x00 IN THE NETWORK
Install one E-FL-HB-0x00
hub and use fiber cable to
set up a workgroup by
connecting the hub to
terminal devices.
to hub, switch, or router
10BASE-FL
BB
PWR STAT
3
COL ACT 1 2 4 5 6
1 2 3 4 5 6 7 8
Cascade two repeater hubs by
connecting fiber cable from a connector
at the front of the first hub to a
connector at the front of the second
hub.
10BASE-FL
BB
PWR STAT
COL ACT 1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
10BASE-FL
BB
PWR STAT
COL ACT 1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
Install an optional backbone
uplink adaptor at the back of
the hub and use 10BASE-2,
10BASE-5, or fiber cable to
connect the workgroup to a
network backbone.
7 8
to hub, switch or router
10BASE-FL
BB
PWR STAT
COL ACT 1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8

TECHNICAL SPECIFICATIONS

Standards IEEE 802.3
Dimensions 17.25" x 8.5" x 1.7"
Power
Input Range: 100 to 240 VAC at 50 or 60 Hz, 3.0 A maximum.
Rated at 40 watts maximum.
Environment Operating Temperature:
Storage Temperature:
Humidity
Altitude
Warranty Lifetime
DECLARATION OF CONFORMITY
Name of Mfg: Transition Networks
6475 City West Parkway, Minneapolis MN 55344 USA
Model: E-FL-HB-0x00 Series Unmanaged Fiber Hub
Part Number: E-FL-HB-0800, E-FL-HB-0800(SC), E-FL-HB-0400,
E-FL-HB-0400(SC)
Regulation: EMC Directive 89/336/EEC
Purpose: To declare that the E-FL-HB-0800 or E-FL-HB-0400 to which this
declaration refers is in conformity with the following standards.
EMC-CISPR 22: 1985 Class A; EN 55022: 1988 Class A; EN 50082-1:1992;
EN 60950 A4:1997; IEC 801.2, IEC 801.3, and IEC 801.4; IEC 950
I, the undersigned, hereby declare that the equipment specified above conforms to the
above Directive(s) and Standard(s).
Stephen Anderson, Vice-President of Engineering
(437 mm x 216 mm x 43 mm)
0° to 50°C (32° to 122° F )
-15° to 65°C (5° to 149° F )
5% to 95%, non condensing
0 to 10,000 feet
_November 10, 1999_____
Date
