dropout systems
yeti tips
Make sure your tools are in good condition.
A worn allen key can round the hex on a bolt
not allowing for proper torque.
Torque settings are listed throughout the
instructions. It is also import to prep all bolt
threads. The instructions denote whether to
use a blue loctite compound or grease.
Warning: service on Yeti bicycles requires special knowledge
and tools. Yeti cycles recommends that all service and
repairs be performed by an authorized Yeti dealer
16.

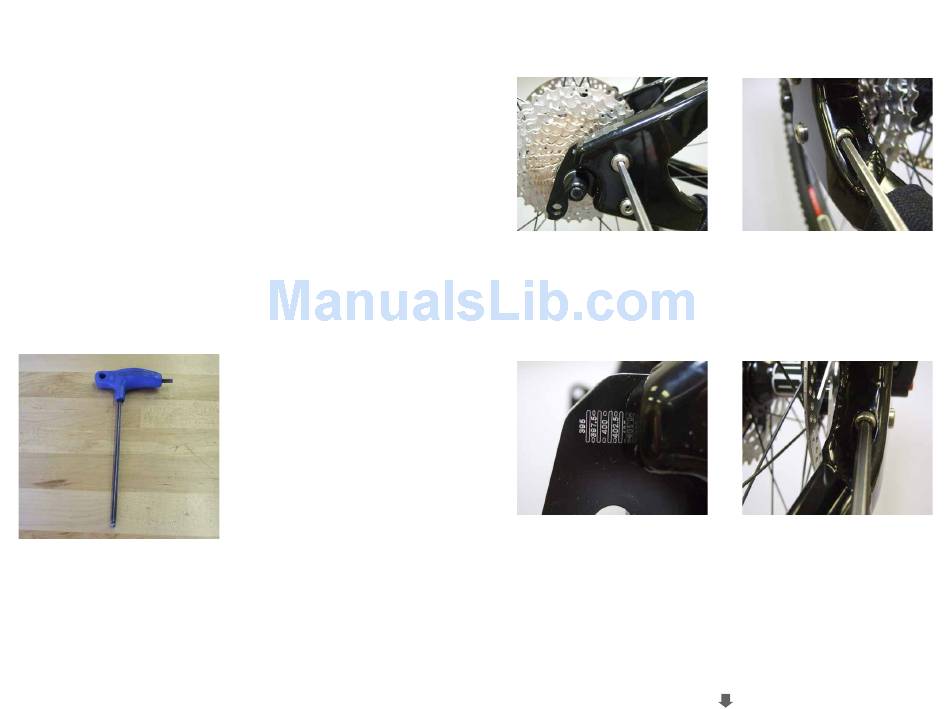

tools needed
• 5mm allen key
01. dropout adjustment
loosen the two M8x22mm dropout bolts located
at each chain stay and seat stay junction with a
5mm allen key.
03. dropout adjustment
Slide the dropouts to the desired chain stay
length. use the hash marks on the dropouts to
ensure both dropouts are square and the rear
wheel is centered in the frame.
02. dropout adjustment
loosen the M6x34mm tension bolt located on the
top of the each chain stay with a 5mm allen key.
04. dropout adjustment
Tighten the two M6x34mm tension bolts on the
frame with a 5mm allen key to make the finite
adjustments for the desired chain stay length
and to achieve proper chain tension. Ensure both
sides are tightened equally and the rear wheel
stays centered in the frame.
Torque to 10-15 in/lb.
