Expolite tourled 36 cw/ww User Manual page 8

Example:
2 INSTALLATION
DMX Addr.1 DMX Addr.1
ID Addr.1 ID Addr.2
DMX512
CONTROLLER
DMX Addr.1 DMX Addr.7 DMX Addr.7
ID Addr.3 ID Addr.1 ID Addr.2

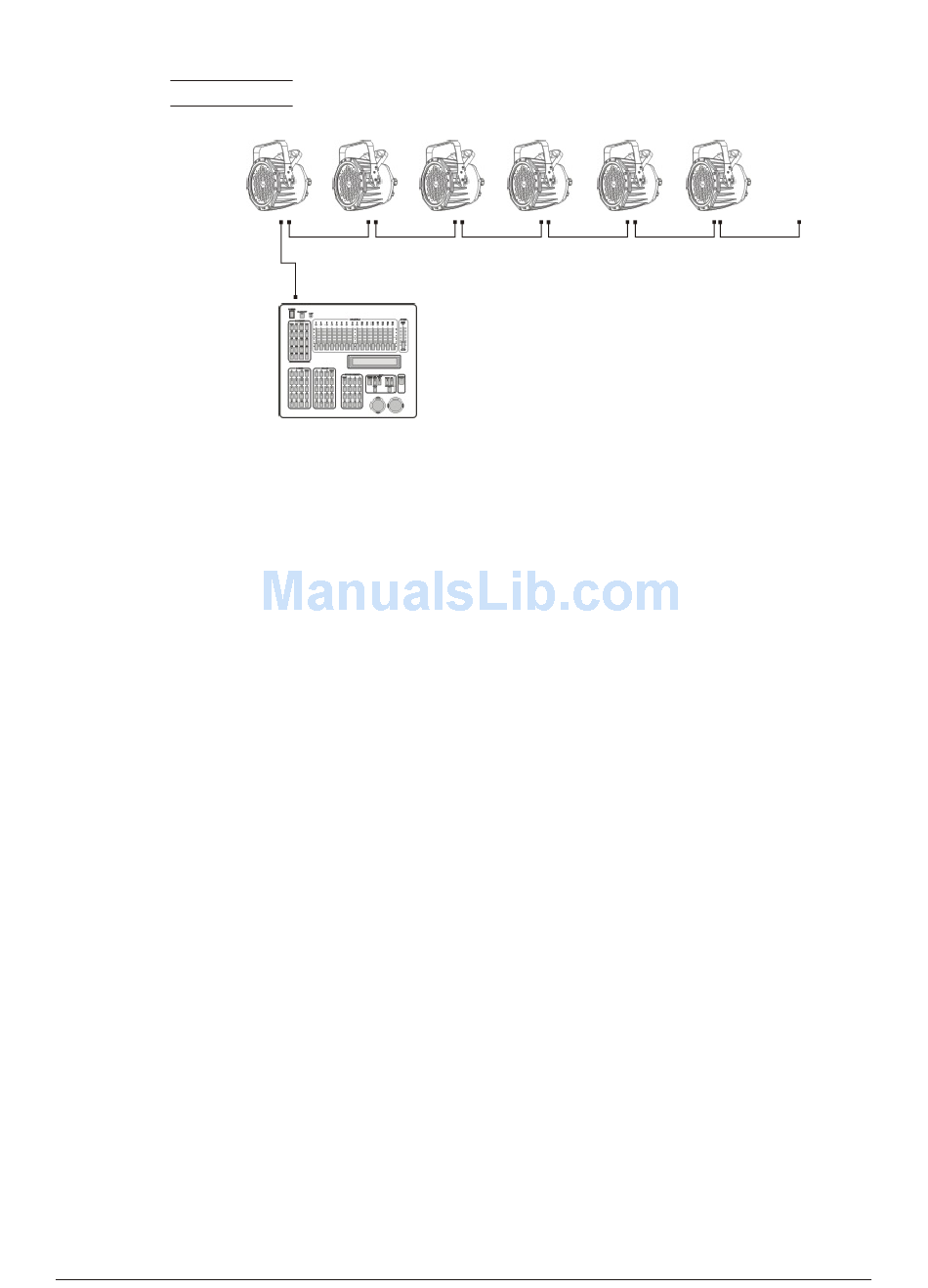

The figure above shows a simple DMX layout
which has used three units at each DMX address.
The three units have different ID addresses which
allows the user to collectively control the whole
group of units at that DMX address by setting
CH6 to 0, or to control each unit independently by
first selecting the DMX address and then by using
Ch6 to locate the target ID address.
6
DMX Addr.7
ID Addr.3
. . . . . . . . . . . .
2008.9.19
