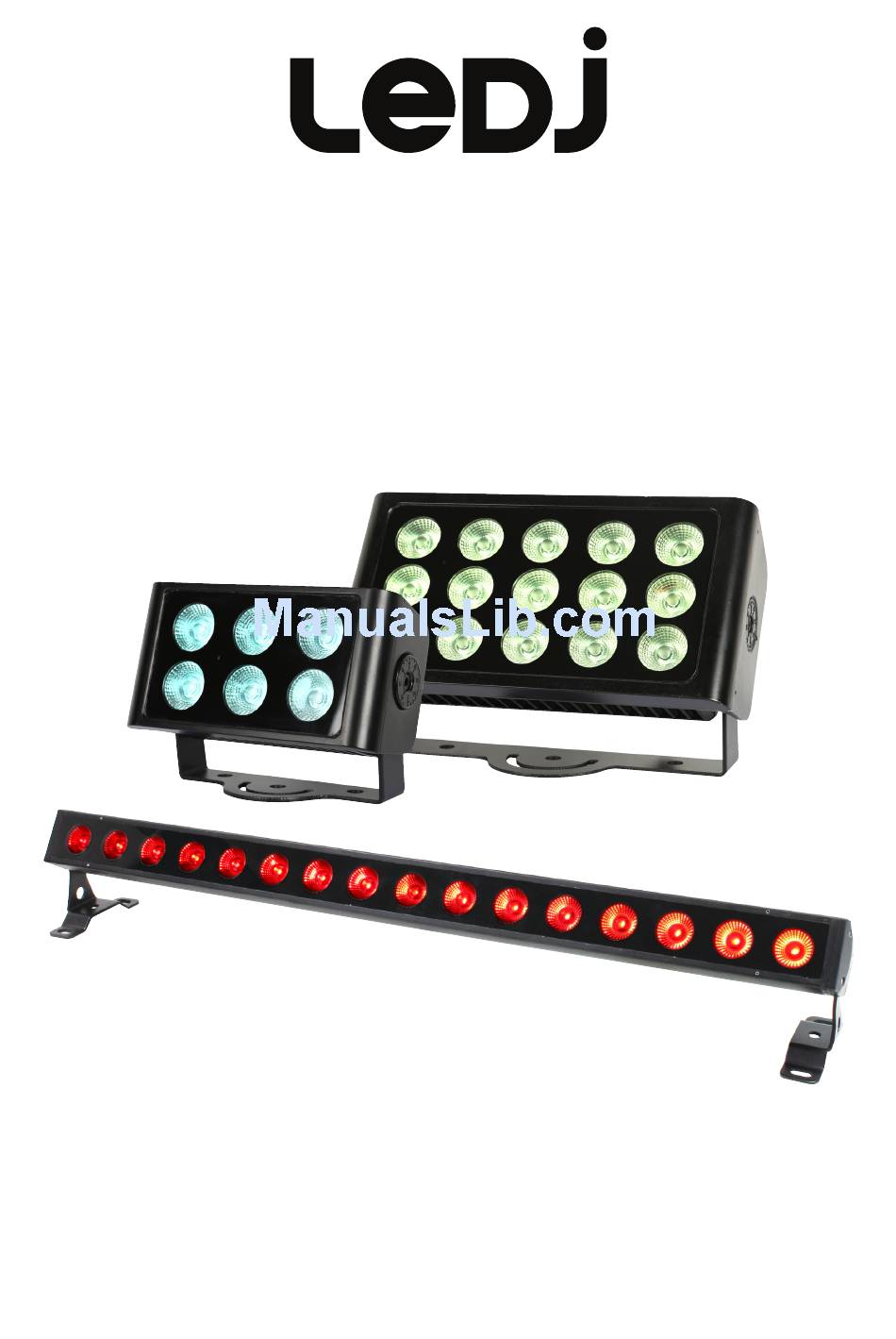

- Page 1 Spectra Q Series Exterior Fixtures User Manual Order code: LEDJ286 - Spectra Flood Q6 LEDJ287 - Spectra Flood Q15 LEDJ288 - Spectra Batten Q16...
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! TAKE CARE USING THIS EQUIPMENT! HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!! IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. - Page 3 Product overview & technical specifications Spectra Q Series The LEDJ IP65 rated Spectra Q series bathes architectural details in constantly IP65 changing colours from its high output LEDs. The 45° beam angle smoothly washes facades and features in deep rich colours or warm pastel tones. The rugged aluminium exterior ensures years of use in all weather conditions while the integral mounting brackets complete the fixtures sleek, modern appearance. The LED menu display with 4 touch button control panel and OLED display facilitates control over colour mixing, colour fades, chases and DMX. • 6 x 5W quad-colour LEDs (RGBW) - LEDJ286 15 x 5W quad-colour LEDs (RGBW) - LEDJ287 16 x 5W quad-colour LEDs (RGBW) - LEDJ288 • Beam angle: 45° • 675 Lux @ 2m (full on) - LEDJ286 1,746 Lux @ 2m (full on) - LEDJ287 2,429 Lux @ 2m (full on) - LEDJ288 • 12kHz refresh rate - LEDJ286 & LEDJ288 4kHz refresh rate - LEDJ287 Specifications Spectra Flood Q6 Spectra Flood Q15 Spectra Batten Q16 • DMX channels: 4, 6 or 9 selectable...
-
Page 4: Technical Specifications
Technical specifications SPECTRA DMX INPUT DMX OUTPUT FLOOD Q6 POWER INPUT POWER OUTPUT www.prolight.co.uk 100-240V~50/60Hz 100-240V~50/60Hz DMX INPUT DMX OUTPUT SPECTRA FLOOD Q15 www.prolight.co.uk POWER INPUT: POWER OUTPUT: 100-240V~50/60Hz 100-240V~50/60Hz SPECTRA BATTEN Q16 www.prolight.co.uk 01 - Bracket 05 - IP rated power trailing output In the box: 1 x fixture, 02 - OLED display 06 - IP rated 3-Pin DMX trailing input 1 x power cable &... -
Page 5: Operating Instructions
Operating instructions IMPORTANT! PLEASE NOTE: The OLED display for this fixture has a menu locking function where after 20 seconds of inactivity it will lock. To unlock the menu hold the “MODE” and “SET” buttons for 3 seconds. Main Menu Sub Menu Options/Values Description 1) Address: 001-512 DMX Address Setting 04 (4 channel mode) 1:DMX 2) Channels: 06 (6 channel mode) DMX Channel Setting 09 (9 channel mode) 2:Slave Slave Mode Setting 3:Auto Auto Mode 1) Mode: 01-14 2) Color: (mode 1) 00-15 4:Program Built-in Programs 2) Speed: (mode 2-14) 001-100 3) Strobe 00-99 1) Red 000-255 2) Green 000-255 5:Dimmer Manual Dimming Mode... - Page 6 Operating instructions DMX channel modes: Channel Value Function 000-255 Master dimmer (0-100%) 000-255 Red (0-100%) 000-255 Green (0-100%) 000-255 Blue (0-100%) 000-255 White (0-100%) 000-015 No function 016-031 032-047 Green 048-063 Blue 064-079 White 080-095 Amber 096-111 Orange 112-127 Yellow Colour Presets 128-143 Purple 144-159 Pink 160-175 Cyan 176-191 Pastel Red 192-207...
- Page 7 Operating instructions RDM (Remote Device Management): The LEDJ Spectra Q Series supports RDM communication protocol. RDM supports 2-way traffic in the standard DMX-512 protocol. RDM can control devices, configurations, detect fixtures and allows the changing of DMX address, DMX mode etc. Each RDM compatible fixture can be identified by the built-in unique UID code. To display the UID go to 7:Information in the menu and the UID will be displayed. Parameter ID Discovery command Set command Get command DISC_UNIQUE_BRANCH DISC_MUTE DISC_UN_MUTE DEVICE_INFO SOFTWARE_VERSION_LABEL DMX_START_ADDRESS IDENTIFY_DEVICE SUPPORTED_PARAMETERS SENSOR_DEFINITION SENSOR_VALUE DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION RESET_DEVICE FACTORY_DEFAULTS www.prolight.co.uk Spectra Q Series User Manual...
-
Page 8: Dmx Setup
DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. For example, a fixture that occupies or uses 7 channels of DMX and was addressed to start on DMX channel 100, would read data from channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in the chain starts at 107. DMX 512: DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a data “out” terminal). DMX linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. - Page 9 DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. Special note: Line termination: When longer runs of cable are used, Termination reduces signal transmission you may need to use a terminator on problems and interferance. it is always advisable to connect a DMX terminal, the last unit to avoid erratic behaviour. (resistance 120 Ohm 1/4 W) between pin 2 Using a cable terminator will decrease (DMX-) and pin 3 (DMX+) of the last fixture. the possibilities of erratic behaviour. (3-pin - Order ref: CABL9O, 5-pin - Order ref: CABL89) 5-pin XLR DMX connectors: Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion.
-
Page 10: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Spectra Q Series User Manual... - Page 11 www.prolight.co.uk Spectra Q Series User Manual...
- Page 12 www.prolight.co.uk Spectra Q Series User Manual...
