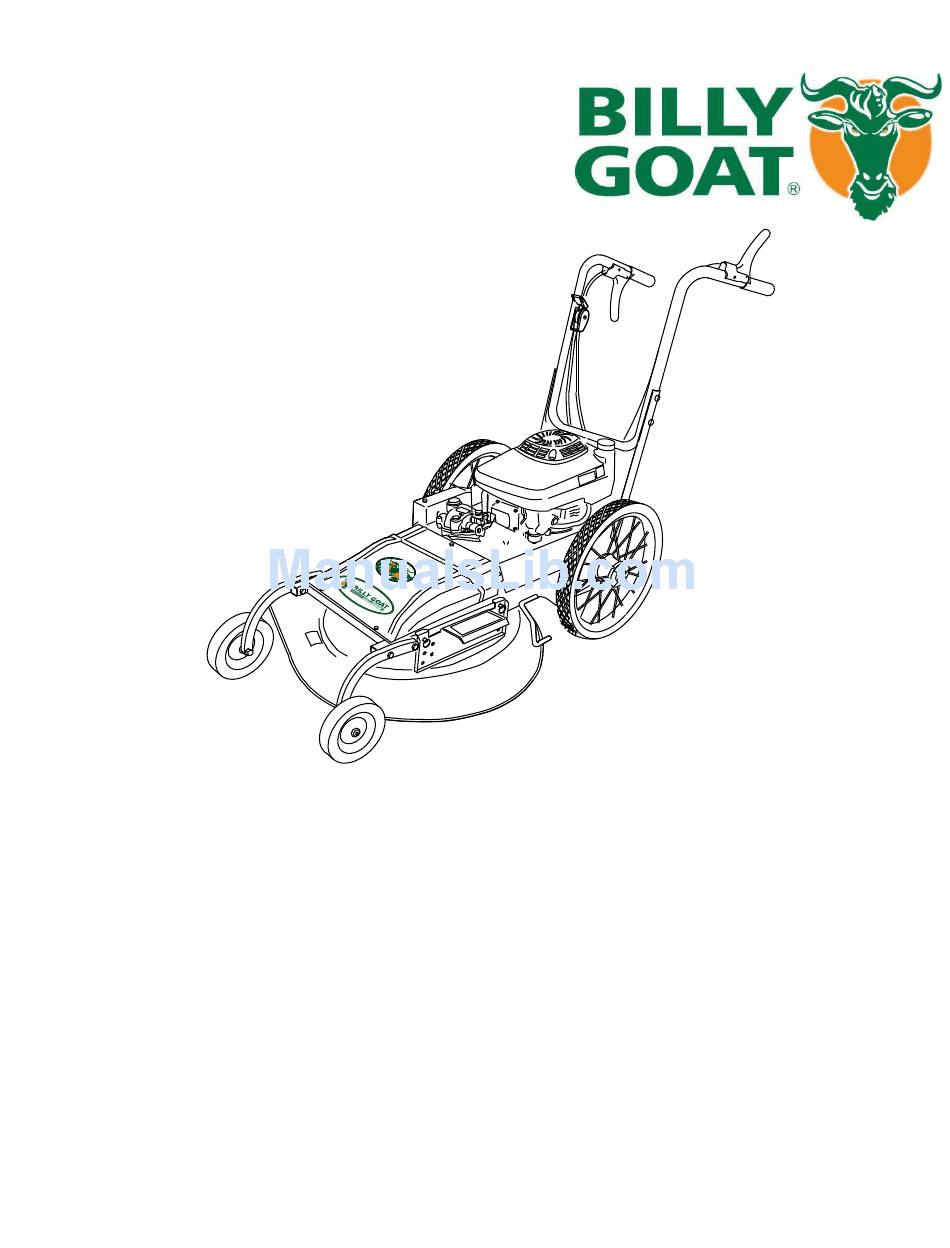

HW Owner's Manual
BILLY GOAT HIGH WHEEL MOWER
Owner's Manual
HW651SP & HW651HSP
Accessories
Part No 510282
Form No F111711A
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HW651SP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Billy Goat HW651SP

Summary of Contents for Billy Goat HW651SP

  • Page 1 HW Owner’s Manual BILLY GOAT HIGH WHEEL MOWER Owner's Manual HW651SP & HW651HSP Accessories Part No 510282 Form No F111711A...

  • Page 2: Table Of Contents

    HW Owner’s Manual CONTENTS SPECIFICATIONS AND SOUND/VIBRATION INSTRUCTION LABELS PACKING CHECKLIST & ASSEMBLY OPERATION _ 6-7 MAINTENANCE _8-9 TROUBLESHOOTING AND WARRANTY PROCEDURE ILLUSTRATED PARTS & PARTS LIST 11-12 Part No 510282 Form No F111711A...

  • Page 3: Specifications

    HW Owner’s Manual Specifications HW651SP HW651HSP Engine: HP 6.0 (4.5 kW) 6.5 (4.85 kW) Engine: Model FJ180V GSV190 Engine: Type Kawasaki OHV HONDA OHV Engine: Fuel Capacity 2.1 qt (2.0 L) 1.6 qt (1.5 L) Engine: Oil Capacity 0.63 qt. (0.6 L) 0.69 qt (0.65L)

  • Page 4: Instruction Labels

    INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT HW Mower. If any labels are damaged or missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels. The correct position for each label may be determined by referring to the Figure and Item numbers shown.

  • Page 5: Packing Checklist & Assembly

    HW Owner’s Manual PACKING CHECKLIST Your Billy Goat HW Mower is shipped from the factory in one carton, completely assembled except for the upper handle. READ all safety instructions before assembling unit. TAKE CAUTION when removing the unit from the box the Handle Assembly is attached and...

  • Page 6: Operation

    HW Owner’s Manual OPERATION Like all mechanical tools, reasonable care must be used when operating machine. Inspect machine work area and machine before operating. Make sure that all operators of this equipment are trained in general machine use and safety. PUT OIL IN ENGINE BEFORE STARTING Do not operate if excessive vibration occurs.
  • Page 7 HW Owner’s Manual Fig. 3 PROPULSION This unit is self-propelled, and is controlled by a lever control. To engage the wheel drive, pull up and squeeze it against operator's handle. The drive is disengaged by releasing this lever.(See Fig. 3 & 3.1) GROUND SPEED can be varied by selecting a higher or lower gear using the gearshift lever on top of the handle (See Fig.

  • Page 8: Maintenance

    Use only original equipment belts for replacement. Billy Goat uses only premium quality, Kevlar corded and coated belts in your unit. Substitute belts do not meet the design and performance requirements for your unit, and will greatly reduce machine performance and belt life.
  • Page 9 HW Owner’s Manual BELT REPLACEMENT continued Drive Belt Tools required: 3/8 inch socket, 1/2 inch socket, 3/8" torque wrench. 1. Follow steps 1 through 5 above to remove the blade drive belt. 2. Set the unit on its side to allow access to both pulley and the blade. Note: When tipping the unit on its side, keep the air cleaner side of engine up.

  • Page 10: Troubleshooting

    HW Owner’s Manual Troubleshooting Problem Possible Cause Solution Engine will not start. Operator presence control lever is not Engage operator presence control lever. engaged. Engine not properly primed. Out of Prime to choke. Check Gasoline. gasoline, bad or old gas. Spark plug wire Check for spark with an approved disconnected.
  • Page 11 HW Owner’s Manual PARTS DRAWING HW TO TRANS SHIFT LEVER TO DRIVE CLUTCH TO ENGINE BRAKE/ KILL SWITCH 69 86 64 106 Part No 510282 Form No F111711A...

  • Page 12: Part No 510282

    HW Owner’s Manual PARTS LIST ITEM HW651SP HW651HSP ITEM HW651SP HW651HSP DESCRIPTION DESCRIPTION PART NO. PART NO. PART NO. PART NO. LEVER DRIVE CLUTCH W/CABLE 510263 510263 LABEL CUTTING HEIGHT 510147 510147 LABEL INSTRUCTION 510207 510207 LEVER ENGINE BRAKE W/CABLE...

This manual is also suitable for:

Hw651hsp
