Summary of Contents for Billy Goat 510223

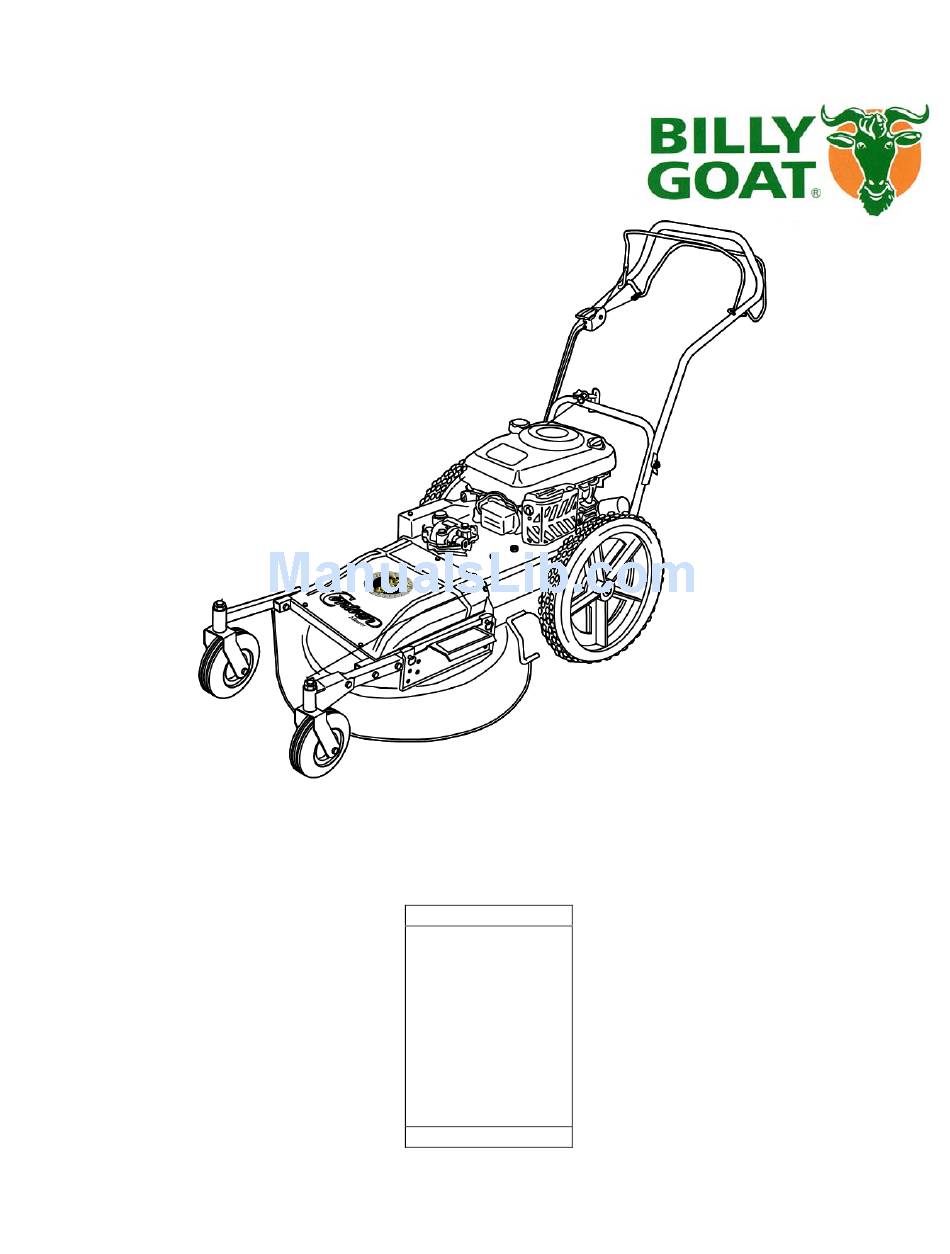

- Page 1 HW Owner’s Manual BILLY GOAT HIGH WHEEL MOWER Owner's Manual Accessories Grass Catcher Kit Easily convert your mower to bag grass and leaves. P/N 510223 Part No 510267 Form No F070506A...
-
Page 2: Table Of Contents
HW Owner’s Manual ABOUT THIS MANUAL ® THANK YOU for purchasing a BILLY GOAT High Wheel Mower. Your new machine has been carefully designed and manufactured to provide years of reliable and productive service. This manual provides complete operating and maintenance instructions that will help to maintain your machine in top running order. -
Page 3: Serial Plate Data And Specifications
HW Owner’s Manual SERIAL PLATE DATA Record the model number, serial number, date of purchase, and where purchased. Purchase Date: Purchased From: Specifications HW651SP Engine: HP 6.0 (4.5 kW) Engine: Model FJ180V Engine: Type Kawasaki OHV Engine: Fuel Capacity 2.1 qt (2.0 L) Engine: Oil Capacity 0.63 qt. -
Page 4: General Safety Instructions And Symbols
This symbol indicates that this manual and the engine manufacturer’s manual should be read carefully before assembling, operation, or servicing this equipment. ® This symbol indicates important information that will prevent damage to your BILLY GOAT HW Mower. This symbol indicates the engine oil level should be checked before operating this equipment. - Page 5 HW Owner’s Manual DO NOT run this equipment indoors or in any poorly ventilated area. Refueling outdoors is recommended. DO NOT refuel this equipment while the engine is running. Allow engine to cool for at least two minutes before refueling. DO NOT store gasoline near an open flame.
-
Page 6: Sound And Vibration
HW Owner’s Manual SOUND SOUND LEVEL 80 dB(a) at Operator Position Sound tests were conducted in accordance with 2000/14/EEC, and were performed on 2-21-2002 under the conditions listed below. Sound power level listed is the highest value for any model covered in this manual. Please refer to serial plate on the unit for the sound power level for your model. -
Page 7: Instruction Labels
INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT HW Mower. If any labels are damaged or missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels. The correct position for each label may be determined by referring to the Figure and Item numbers shown. -
Page 8: Packing Checklist & Assembly
HW Owner’s Manual PACKING CHECKLIST Your Billy Goat HW Mower is shipped from the factory in one carton, completely assembled except for the upper handle. READ all safety instructions before assembling unit. TAKE CAUTION when removing the unit from the box the Handle Assembly is attached and... -
Page 9: Operation
HW Owner’s Manual OPERATION Like all mechanical tools, reasonable care must be used when operating machine. Inspect machine work area and machine before operating. Make sure that all operators of this equipment are trained in general machine use and safety. PUT OIL IN ENGINE BEFORE STARTING Do not operate if excessive vibration occurs. - Page 10 HW Owner’s Manual Fig. 3 PROPULSION This unit is self-propelled, and is controlled by a lever control. To engage the wheel drive, pull up and squeeze it against operator's handle. The drive is disengaged by releasing this lever.(See Fig. 3 & 3.1) GROUND SPEED can be varied by selecting a higher or lower gear using the gearshift lever on top of the handle (See Fig.
-
Page 11: Maintenance
Use only original equipment belts for replacement. Billy Goat uses only premium quality, Kevlar corded and coated belts in your unit. Substitute belts do not meet the design and performance requirements for your unit, and will greatly reduce machine performance and belt life. - Page 12 HW Owner’s Manual BELT REPLACEMENT continued Drive Belt Tools required: 3/8 inch socket, 1/2 inch socket, 3/8" torque wrench. 1. Follow steps 1 through 5 above to remove the blade drive belt. 2. Set the unit on its side to allow access to both pulley and the blade. Note: When tipping the unit on its side, keep the air cleaner side of engine up.
-
Page 13: Troubleshooting And Warranty Procedure
• The machine must be taken to the dealer from whom it was purchased or to an authorized Servicing BILLY GOAT Dealer. •... -
Page 14: Illustrated Parts & Parts Lists
HW Owner’s Manual PARTS DRAWING HW Part No 510267 Form No F070506A... -
Page 15: Parts List
HW Owner’s Manual PARTS LIST ITEM PART ITEM PART DESCRIPTION DESCRIPTION 510263 LEVER DRIVE CLUTCH W/CABLE 510147 LABEL CUTTING HEIGHT 510262 LEVER ENGINE BRAKE W/CABLE 510207 LABEL INSTRUCTION 510206 LABEL WARNING MOWER 900407 TY WRAP 400424 LABEL OPEI 510274 GRIP HANDLE 1” ID X 5” BLACK 830502 LABEL OIL CHAIN 510127... -
Page 16: Maintenance Record
HW Owner’s Manual MAINTENANCE RECORD Date Service Performed Part No 510267 Form No F070506A...
