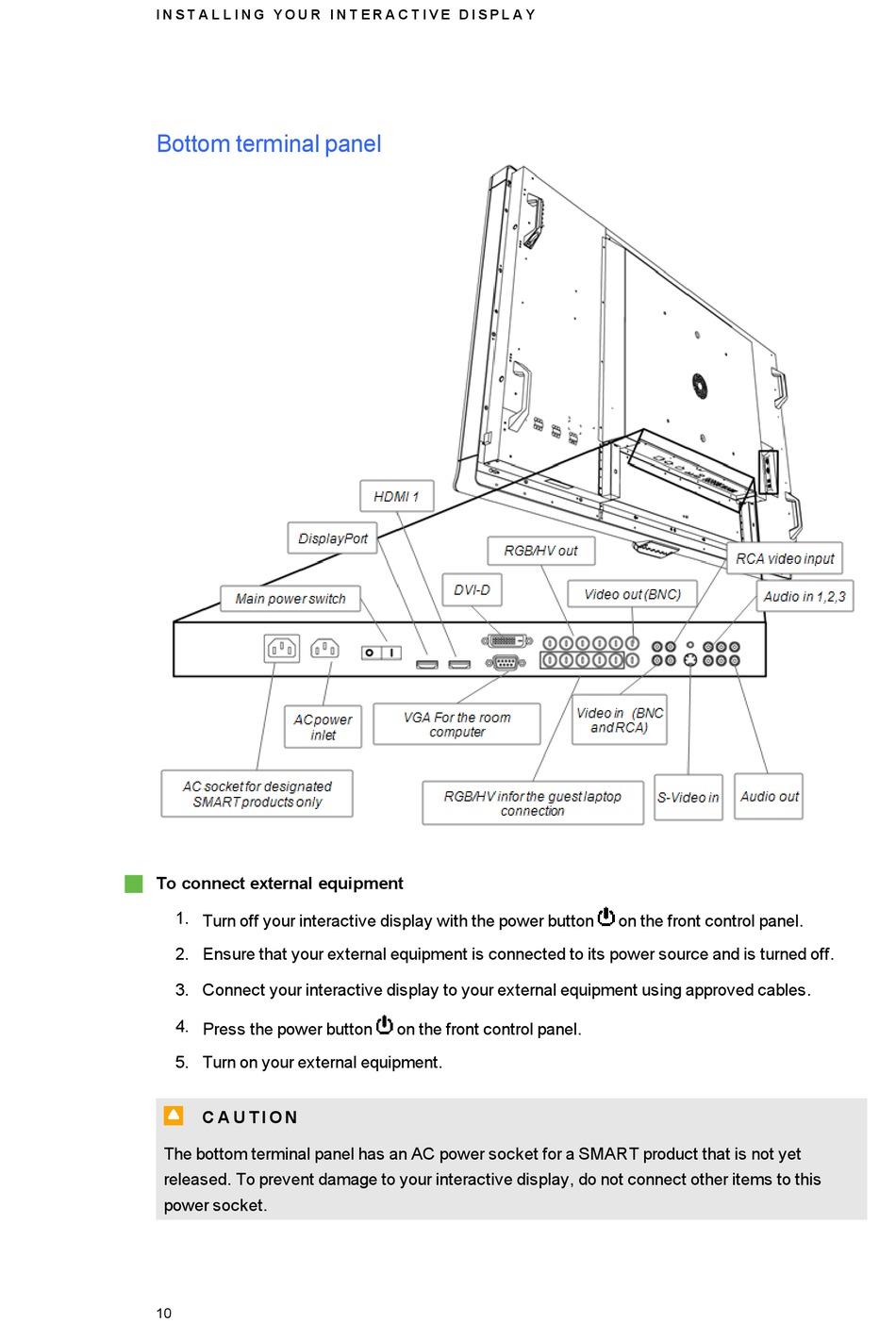

Bottom terminal panel

g
To connect external equipment
1. Turn off your interactive display with the power button
2. Ensure that your external equipment is connected to its power source and is turned off.
3. Connect your interactive display to your external equipment using approved cables.
4. Press the power button
5. Turn on your external equipment.
C
C A U T I O N
The bottom terminal panel has an AC power socket for a SMART product that is not yet
released. To prevent damage to your interactive display, do not connect other items to this
power socket.
