SMART Board 8070i Installation Manual page 12

I N S T A L L I N G Y O U R I N T E R A C T I V E D I S P L A Y

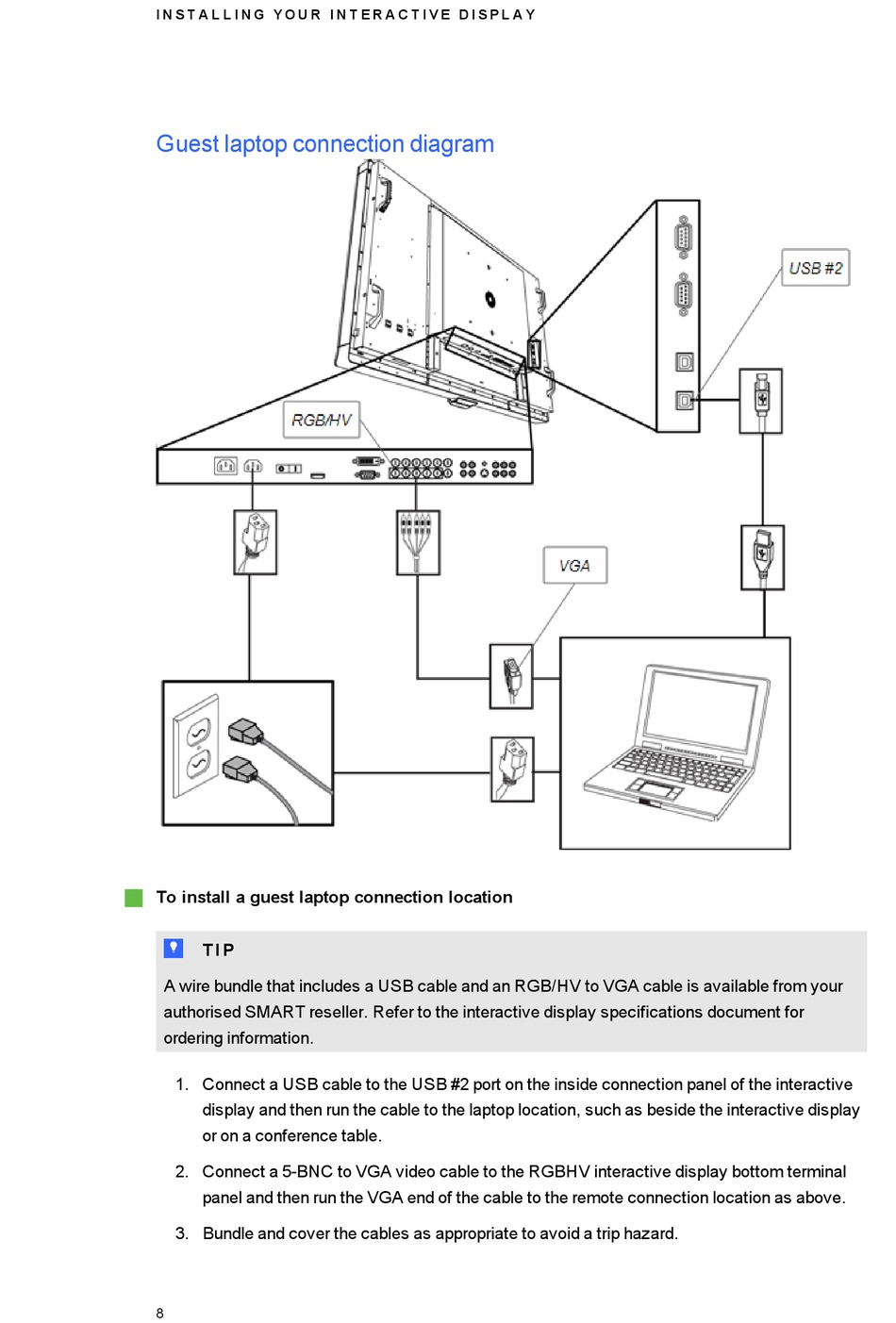

Guest laptop connection diagram
g
To install a guest laptop connection location
T
T I P
A wire bundle that includes a USB cable and an RGB/HV to VGA cable is available from your
authorised SMART reseller. Refer to the interactive display specifications document for
ordering information.
1. Connect a USB cable to the USB #2 port on the inside connection panel of the interactive
display and then run the cable to the laptop location, such as beside the interactive display
or on a conference table.
2. Connect a 5-BNC to VGA video cable to the RGBHV interactive display bottom terminal
panel and then run the VGA end of the cable to the remote connection location as above.
3. Bundle and cover the cables as appropriate to avoid a trip hazard.
8
