I N S T A L L I N G Y O U R I N T E R A C T I V E D I S P L A Y
A guest laptop cable bundle connected to the USB #2 and RGB/HV connectors. The
l
cabling can be installed running to a remote location, such as a conference table. This
cabling is optional.
A wire bundle of these two connectors is not included with your interactive display, but is
available from your authorised SMART reseller. Refer to the interactive display
specifications document for ordering information.
You can switch inputs between your room computer and the guest laptop connection with the
input button in the front control panel or with the input button on the infrared remote control.
Connecting to power and to your room
computer
Your room computer is the default computer for your interactive display. Connect a VGA cable
and a USB cable from this computer to the VGA connector and USB #1 connector on your
interactive display.

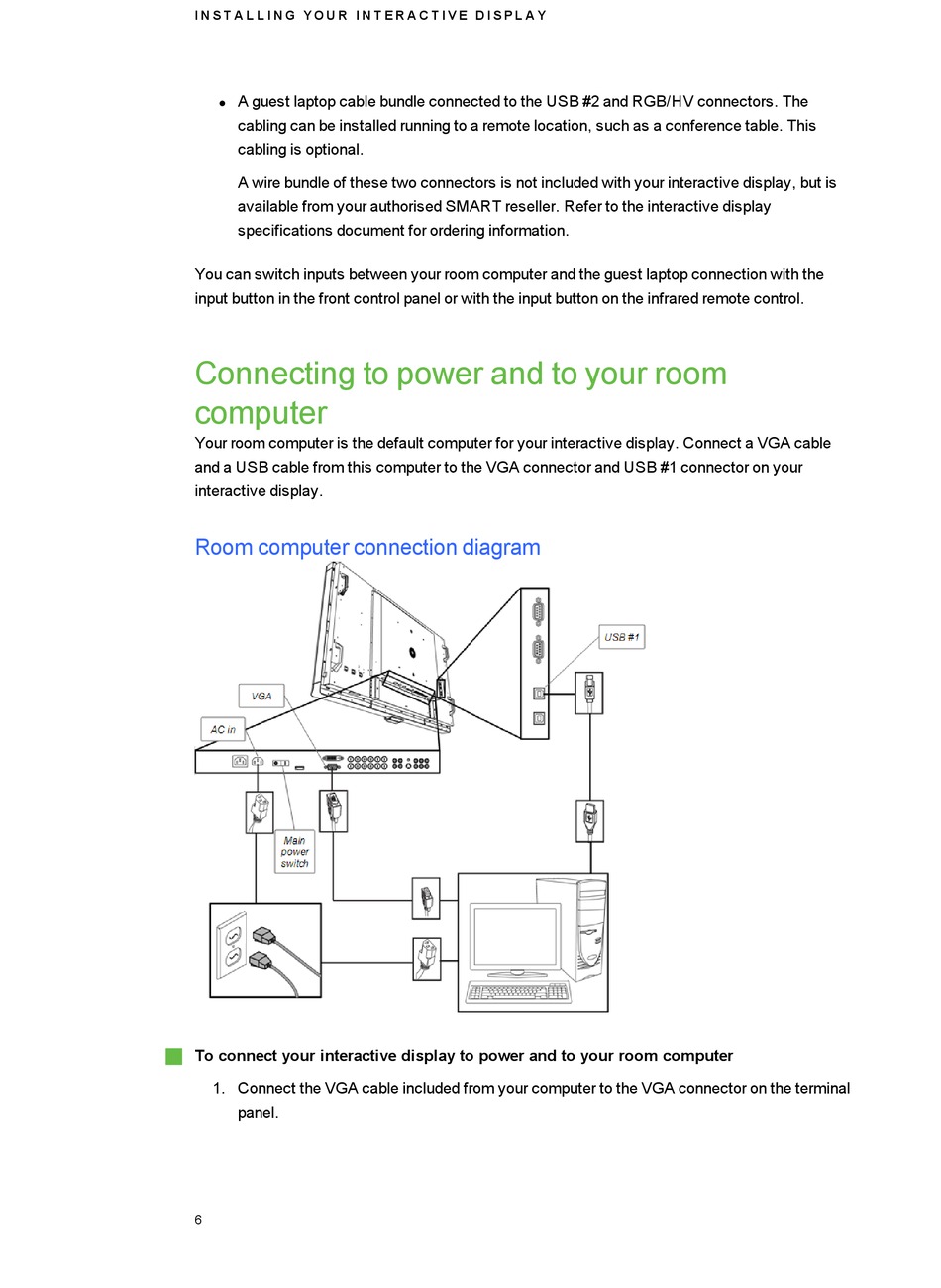

Room computer connection diagram
g
To connect your interactive display to power and to your room computer
1. Connect the VGA cable included from your computer to the VGA connector on the terminal
panel.
