Summary of Contents for First Degree Fitness fluid e820 Fitness UBE

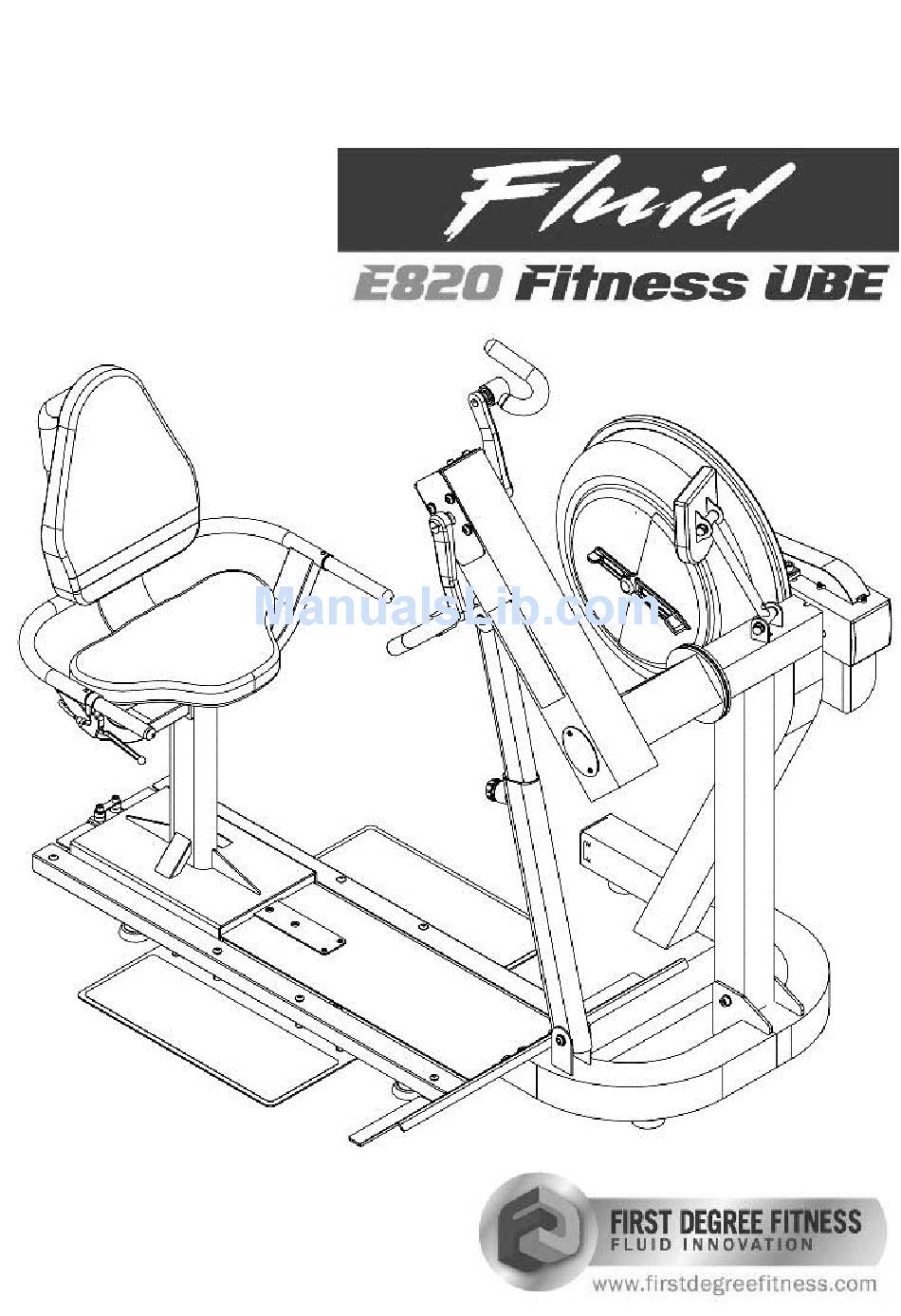

  • Page 1 Owners Manual...
  • Page 2 Training with the E820 As with any piece of fitness equipment, consult a physician before begin- ning your E820 exercise program. CAUTION Use two hands and follow all safety instructions whenever raising or low- ering the E820 control arm. Warning Do not remove hands while crank is in motion.
  • Page 3 E820 Box Contents 1x Main Frame with Telescoping Tube and Internal Gas Assist Shock 1x Seat and Base...
  • Page 4 E820 Assembly Instructions 4x 8x15mm bolts and 4x M8 spring washers Adjuster knob Step 1: Remove contents from box. Attach telescoping tube to the underside of the control arm using 4x M8x15mm bolts and 4x M8 spring washers. CAUTION The control arm is heavy and may swing freely during this stage of assembly.
  • Page 5 E820 Assembly Instructions Note: Allow 15 minutes for the thread locker to activate before first time use. Check pedal tightness periodically thereafter with a 15mm wrench. Step 4: Secure right pedal onto Crank arm. The pedal threads have a blue coating which will feel very tight when threaded onto the crank arm.
  • Page 6 E820 Baseplate Assembly T-Track Bolt pack Channel Channel Right Left Footplate Foot- Contents: 1x T-Track 2x Footplate 1x Channel Right 1x Bolt Pack (for both baseplate/seat) 1x Channel Left...
  • Page 7 Install the Footplates/Channels: Footplate T-Track Step One: Tilt the T-Channel slightly to allow the footplate (with pre-installed bolts) to slide underneath as shown. Left Channel Channel Slot 4x 8x45mm Slide Channel bolts forward Step Two: Mount the Left Channel over the top of the footplate dome bolts and then slide forward.
  • Page 8 Install Baseplate to Mainframe Completed Baseplate Foot leveler Step One: Stand Baseplate upright to install 4x Foot levelers as shown. Once foot levelers are installed, the completed baseplate can be installed onto the mainframe of the E820. Mounting pins on E820 Mainframe Step Two: Mount the baseplate on- to the Mainframe using mounting...
  • Page 9 Install Seat onto Baseplate Seat Stop: Must be lowered to al- low seat onto Baseplate track. Must ALWAYS be in the LOCKED position when seat is occupied on Baseplate. Must be lowered to allow seat re- moval. To LOCK, raise and locate. To UNLOCK, lift and drop rearward.
  • Page 10 Seat Assembly: Seat Main Frame Armrest Assembly Upper Seat back Bolt Pack Seat CONTENTS: 1x Seat Main Frame 1x Lower Seat 1x Armrest Assembly 1x Upper Seat back 1x Bolt Pack (Note Bolts/Washers/Nuts are for both Seat and Footplate)
  • Page 11 Attaching Armrest to Lower frame You will need the Lower Frame, Armrest Assembly and the following bolts/ washers/nuts from the bolt Pack: 1x M8x70mm Bolt 3x M8 Nylock Nut 1x M8x25mm Bolt 1x M8 Washer 2x M8x45mm Bolt Plastic tie Step One: Mount the Armrest onto the Lower frame from behind as shown.
  • Page 12 Attaching Armrest to Lower frame: Step One: Secure Armrest with M8x70mm Bolt, M8 Nylock Nut and M8 Step Three: 2x M8x45mm Bolt,2x Nylock Nut Step Two: M8x25mm and 2x M8 Washer Bolt and M8 Washer...
  • Page 13 Attaching Armrest cable to Cable Pivot: Cable Pivot Cable Pivot Step One: Locate plastic tie, then depress Cable Pivot forward to allow plastic tie to be pulled through the hole in front. Once the cable end is through the hole, slide it forward as shown upper right to prevent cable end from slipping back through.
  • Page 14 Seat Assembly Attaching Upper/Lower Seat Pad: Seat Frame, Upper/Lower Seat Install Lower Seat Pad Using 4x Install Upper Seat Pad with as shown with 4x M6x20mm Bolt/Washer. Once seat pads are installed the assem- bly will be complete. Check to be sure that all bolts are securely tightened and that the cable lever is functioning normal- To mount the seat onto the completed...
  • Page 15 The E820 Control Arm Chain tensioning bolts: Allows for tightening the chain or adjustment from side to side. Make sure when tightening only to adjust the same amount for both bolts, otherwise the sprocket will be misaligned. Note: Tightening the right bolt only will pull the right side of the crank assembly toward you, tightening the left will pull the left side toward you.

  • Page 16: Tank Filling And Water Treatment

    Tank Filling and Water Treatment Note: A large bucket is required for filling (Not included) In areas where tap water quality is known to be poor, FDF recommends the use of distilled water. Open the rear upper yellow tank plug and insert hose into tank (rotating the impeller slightly may be necessary to allow the...
  • Page 17 Long term water treatment: Do not use any water treatment other than the tablets supplied with this machine. For replacement tablets, contact your local First Degree Fitness distributor. Water treatment schedules for the E820 will vary according to the fluid tanks exposure to sunlight, but expect 8-12 months near a bright, sunlit window and 2 years or more for a darker location.
  • Page 18 E820 Ergometer. Note: For complete operation- Quick start provides instant workout al instructions, please refer to information. Just start training to acti- the computer manual, which is vate. You can choose to change included with your E820. UNITS displayed. UNITS displays WATTS, RPM,...
  • Page 19 Using the First Degree Fitness USB Interface Description: The USB connectivity now built in to all new models of FDF Console and IPM allow you to enhance your exercise experience by connecting to your home PC or Laptop. Using FDF's own sample applications you can exercise while enjoying your favorite movies.
  • Page 20 Maintenance Chart. Item Timeframe Instructions Notes Seat and Frame. Weekly. Wipe down weekly with lint free cloth or more often with heavy club use. PK belt tension. Monthly. Check monthly for signs of slippage. Adjust/tighten as required. Tank and water 12 months to 2 years.

  • Page 21: Troubleshooting Guide

    Troubleshooting Guide: Fault Probable Solution Cause Water changes color Rower is in direct Change rower location to reduce direct or becomes cloudy. sunlight or has not exposure to sunlight. Add water treat- had water treatment. ment or change tank water as directed in the water treatment section of this manual.
  • Page 22 Tank Belt Adjustment Step 1: Remove large metal inspection plate as shown above right. Step 2: Using a long tool, push out the rear end cap as pictured above right. This will give you access to the tank tensioning bolt (shown bottom right).
  • Page 23 Metal Frame – 10 Year Limited Warranty First Degree Fitness will repair or replace the metal Main Frame should it fail due to any defect in materials or workmanship within 10 years of the original purchase. Warranty does not apply to frame coating.
