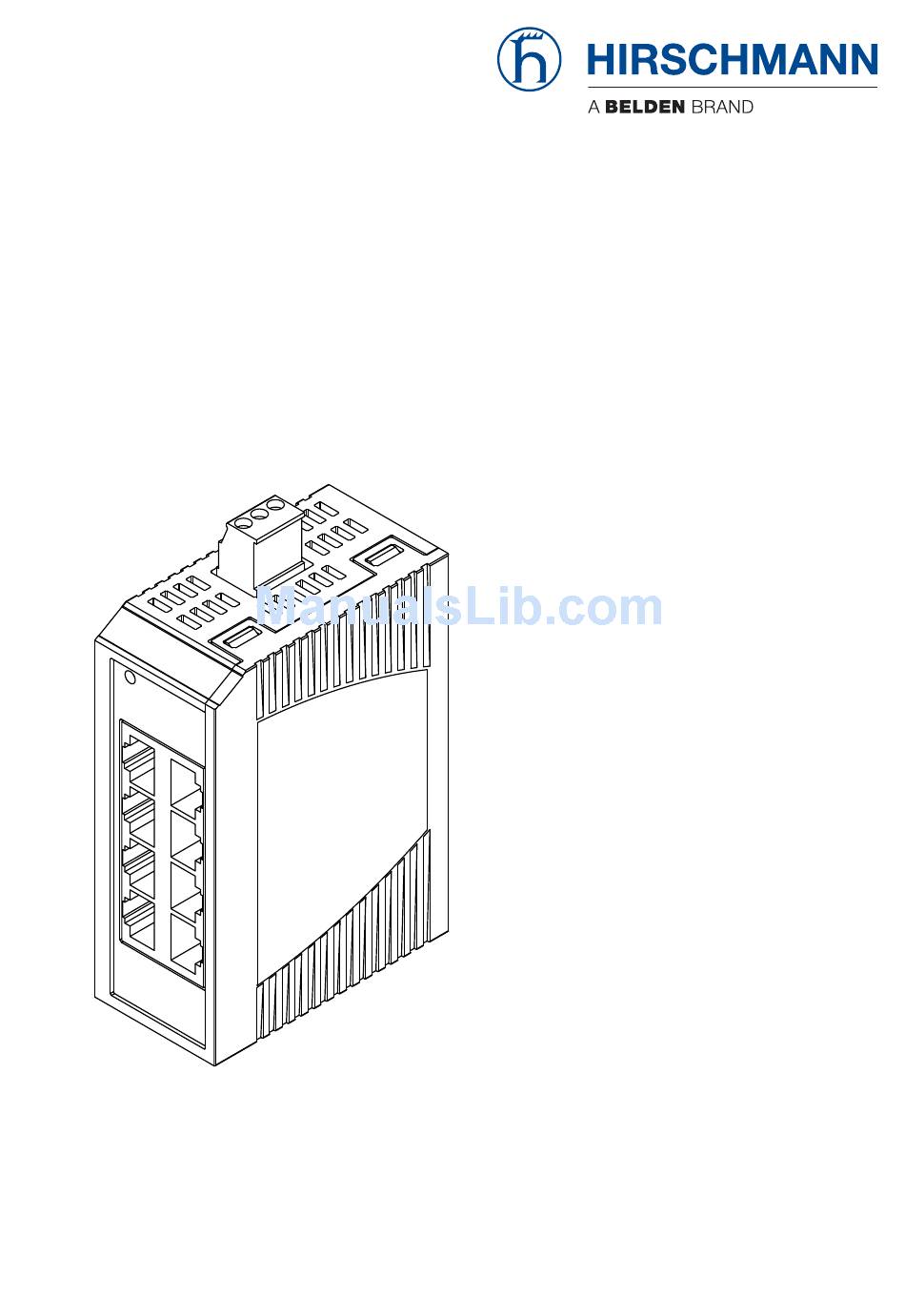

    User Manual Installation Industrial Ethernet Rail Switch SPIDER-SL-40-08T1 Installation SPIDER-SL-40-08T1 Technical support Release 01 08/2015 https://hirschmann-support.belden.eu.com...
  • Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com). Hirschmann Automation and Control GmbH Stuttgarter Str.
  • Page 3: Table Of Contents

    Checking the package contents Mounting the device Wiring the terminal block for the supply voltage and the grounding Operating the device Connecting data cables Monitoring the ambient air temperature Maintenance and service Disassembly Technical data Further Support Installation SPIDER-SL-40-08T1 Release 01 08/2015...
  • Page 4: Safety Instructions

    Certified usage   Use the product only for the application cases described in the Hirschmann product information, including this manual.  Operate the product only according to the technical specifications. See “Technical data” on page 22.  Connect to the product only components suitable for the requirements of the specific application case.
  • Page 5: Grounding The Device

    Shielding ground  The shielding ground of the connectable twisted pair cables is connected to the ground connection as a conductor.  Beware of possible short circuits when connecting a cable section with conductive shielding braiding. Installation SPIDER-SL-40-08T1 Release 01 08/2015...
  • Page 6  The power supply cable is suitable for the voltage, the current and the physical load. Hirschmann recommends a wire diameter of 0.5 mm² (AWG20).  The cross-section of the ground conductor is the same size as or bigger than the cross- section of the power supply cables.
  • Page 7 In accordance with the above-named EU directive(s), the EU conformity declaration will be available to the relevant authorities at the following address: Hirschmann Automation and Control GmbH Stuttgarter Str. 45-51 72654 Neckartenzlingen Germany Tel.: +49 1805 141538 The device can be used in the industrial sector.
  • Page 8 Recycling note  After usage, this device must be disposed of properly as electronic waste, in accordance with the current disposal regulations of your county, state, and country. Installation SPIDER-SL-40-08T1 Release 01 08/2015...
  • Page 9: About This Manual

    The “Installation User Manual” document contains a device description, safety instructions, a display description and further information that you require to install the device. Legend The symbols used in this manual have the following meanings:  Listing Work step   Subheading Installation SPIDER-SL-40-08T1 Release 01 08/2015...
  • Page 10: Description

    Description General device description The SPIDER-SL-40-08T1 devices are designed for the special requirements of industrial automation. They meet the relevant industry standards, provide very high operational reliability, even under extreme conditions, and also long-term reliability and flexibility. You have the ability to connect end devices or other segments to the ports of the device via twisted-pair cables.
  • Page 11: Device Name And Product Code

    (+32 °F ... +140 °F) 25 ... 26 Certificates and declarations Z9 CE, FCC, EN 61131-2, EN 60950-1 27 ... 28 Customer-specific version Hirschmann Standard 29 ... 30 Configuration Hirschmann Standard Table 1: Device name and product code Installation SPIDER-SL-40-08T1 Release 01 08/2015...
  • Page 12: Device View

    Rail lock gate for DIN rail mounting Power supply For the power supply of the device, a 3-pin terminal block is available. For further information see “Wiring the terminal block for the supply voltage and the grounding” on page Installation SPIDER-SL-40-08T1 Release 01 08/2015...
  • Page 13: 10/100/1000 Mbit/S Twisted Pair Port

    100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode  10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode Pin assignments RJ45 10/100 Mbit/s 1000 Mbit/s BI_DA+ TX− BI_DA− BI_DB+ — BI_DC+ — BI_DC− RX− BI_DB− — BI_DD+ — BI_DD− Installation SPIDER-SL-40-08T1 Release 01 08/2015...
  • Page 14: Display Elements

    Device is not ready for operation 1.7.2 Port state This LED shows port-related information. Color Activity Meaning Green Lights up Device detects a valid link Flashing Device is transmitting and/or receiving data None Device detects an invalid or missing link Installation SPIDER-SL-40-08T1 Release 01 08/2015...
  • Page 15: Installation

    Operating the device  Connecting data cables Checking the package contents  Check whether the package includes all items named in the section “Scope of delivery” on page  Check the individual parts for transport damage. Installation SPIDER-SL-40-08T1 Release 01 08/2015...
  • Page 16: Mounting The Device

    DIN EN 60715, proceed as follows:  Slide the upper snap-in guide of the device into the DIN rail.  Press the media module downwards onto the clip-in bar.  Snap in the device. Installation SPIDER-SL-40-08T1 Release 01 08/2015...
  • Page 17: Wiring The Terminal Block For The Supply Voltage And The Grounding

    Voltage range DC incl. maximum Minus terminal of the supply tolerances voltage 9.6 V ... 32 V Functional ground connection Table 2: Type and specification of the supply voltage and pin assignment on the device Installation SPIDER-SL-40-08T1 Release 01 08/2015...
  • Page 18: Operating The Device

    90° angle.  Use shielded cables (SF/UTP cables as per ISO/IEC 11801:2002).  Beware of possible short circuits when connecting a cable section with conductive shielding braiding.  Connect the data cables according to your requirements. Installation SPIDER-SL-40-08T1 Release 01 08/2015...
  • Page 19: Monitoring The Ambient Air Temperature

    The ambient air temperature is the temperature of the air at a distance of 2 in (5 cm) from the device. It depends on the installation conditions of the device, e.g. the distance from other devices or other objects, and the output of neighboring devices. Installation SPIDER-SL-40-08T1 Release 01 08/2015...
  • Page 20: Maintenance And Service

    Maintenance and service When designing this device, Hirschmann largely avoided using high-wear parts. The parts subject to wear and tear are dimensioned to last longer than the lifetime of the product when it is operated normally. Operate this device according to the specifications.
  • Page 21: Disassembly

     Disconnect the data cables.  Disable the supply voltage.  Remove the power connector from the device.  Use a screwdriver to pull the rail lock gate downwards.  Pull the device downwards from the DIN rail module. Installation SPIDER-SL-40-08T1 Release 01 08/2015...
  • Page 22: Technical Data

    Air pressure minimum 700 hPa (+9842 ft; +3000 m) Pollution degree Protection classes Degree of protection IP 30 a. Temperature of the ambient air at a distance of 2 inches (5 cm) from the device Installation SPIDER-SL-40-08T1 Release 01 08/2015...
  • Page 23: Dimension Drawings

    Dimension drawings  Installation SPIDER-SL-40-08T1 Release 01 08/2015...
  • Page 24 8.4 Hz ... 150 Hz with 1 g IEC 60068-2-27, test Ea Shock 15 g at 11 ms Network range  10/100/1000 Mbit/s twisted pair port Length of a twisted pair segment max. 100 m (for cat5e cable) Installation SPIDER-SL-40-08T1 Release 01 08/2015...
  • Page 25: Scope Of Delivery

    Order number 3-pin Low Voltage Interlock terminal block (50 pcs.) 943 845-005 Rail Power Supply RPS 30 943 662-003 Rail Power Supply RPS 80 EEC 943 662-080 Rail Power Supply RPS 120 EEC (CC) 943 662-121 Installation SPIDER-SL-40-08T1 Release 01 08/2015...
  • Page 26 List of the technical standards The device has an approval based on a specific standard only if the approval indicator appears on the device casing. The device generally fulfills the technical standards named in their current versions. Installation SPIDER-SL-40-08T1 Release 01 08/2015...
  • Page 27: A Further Support

    Further Support Technical Questions  For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You will find the addresses of our partners on the Internet at http://www.hirschmann.com Contact our support at https://hirschmann-support.belden.eu.com You can contact us in the EMEA region at ...
