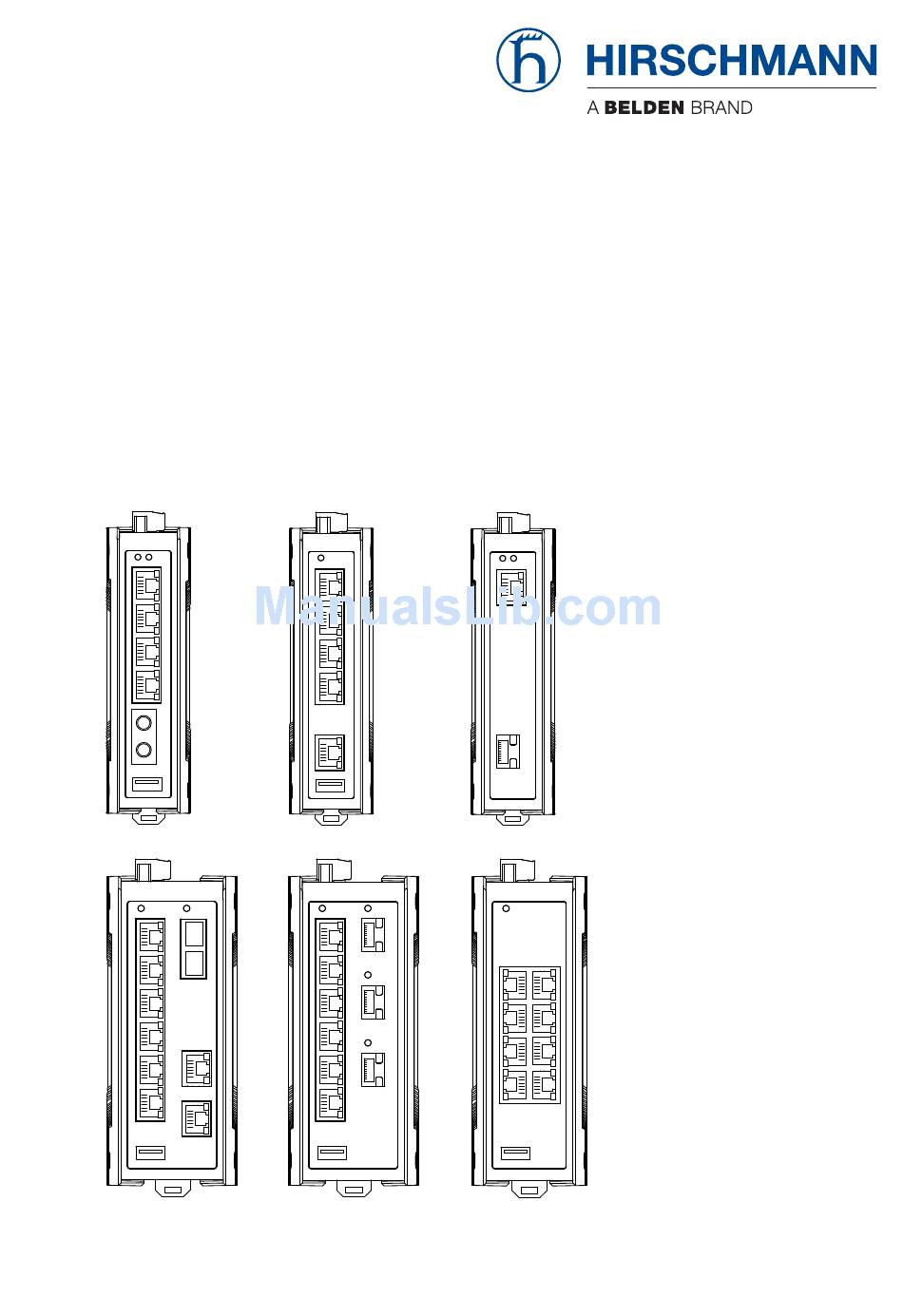

Page 1: User Manual
User Manual Installation Industrial Ethernet Rail Switch SPIDER Premium Line Installation SPIDER-PL Technical support Release 03 08/2016 https://hirschmann-support.belden.eu.com... - Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com). Hirschmann Automation and Control GmbH Stuttgarter Str.
-
Page 3: Table Of Contents
Contents Safety instructions About this Manual Description General device description Device name and product code Device view 1.3.1 Front view Power supply Ethernet ports 1.5.1 Pin assignments Display elements 1.6.1 Device state 1.6.2 Port state Configuration interface USB interface Signal contact Installation Checking the package contents Mounting the device... - Page 4 Configuration (optional) Configuration readout Monitoring the ambient air temperature Maintenance and service Disassembly Removing an SFP transceiver (optional) Removing the device Technical data Further Support Installation SPIDER-PL Release 03 08/2016...
-
Page 5: Safety Instructions
Hirschmann for inspection. Certified usage Use the device solely for the application cases described in the Hirschmann product information, including this manual. Operate the device solely according to the technical specifications. See “Technical data” on page 38. Installation site requirements ... - Page 6 Device casing Only technicians authorized by the manufacturer are permitted to open the housing. Never insert pointed objects (narrow screwdrivers, wires, etc.) into the device or into the connection terminals for electric conductors. Do not touch the connection terminals. ...
- Page 7 The power supply cable is suitable for the voltage, the current and the physical load. Hirschmann recommends a wire diameter of 0.5 mm² to 0.75 mm² (AWG20 up to AWG18). The following requirements apply alternatively: Relevant when the device is supplied via 1 voltage input:...
- Page 8 In accordance with the above-named EU directive(s), the EU conformity declaration will be at the disposal of the relevant authorities at the following address: Hirschmann Automation and Control GmbH Stuttgarter Str. 45-51 72654 Neckartenzlingen Tel.: +49 1805 141538 The device can be used in the industrial sector.
- Page 9 FCC note: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; (2) this device must accept any interference received, including interference that may cause undesired operation. Appropriate testing has established that this device fulfills the requirements of a class A digital device in line with part 15 of the FCC regulations.
-
Page 10: About This Manual
About this Manual The “Installation” user manual contains a device description, safety instructions, a description of the display, and the other information that you need to install the device. The symbols used in this manual have the following meanings: Listing Work step ... -
Page 11: Description
Description General device description The SPIDER-PL devices are designed for the special requirements of industrial automation. They meet the relevant industry standards, provide very high operational reliability, even under extreme conditions, and also long-term reliability and flexibility. The devices allow you to set up switched industrial Ethernet networks that conform to the IEEE 802.3 standard. -
Page 12: Device Name And Product Code
The characteristic values stand for specific product properties. Item Characteristic Characteri Description stic value 1 ... 9 Product SPIDER-PL SPIDER Premium Line (hyphen) – Data rate 10/100 Mbit/s 10/100/1000 Mbit/s Power over Ethernet without PoE support (PoE) (hyphen) –... - Page 13 CE, FCC, EN61131 declarations Z9 + cUL61010 WU + EN50121-4 + E1 WU + IEC61850, IEEE1613 + EN50121-4 27 ... 28 Customer-specific Hirschmann standard version Voltage terminal with spring 29 ... 30 Configuration Hirschmann standard Extended voltage range (48 V DC, 24 V AC)
-
Page 14: Device View
Device view 1.3.1 Front view 11 11 SPIDER-PL-40-08T1... SPIDER-PL-40-05T1... SPIDER-PL-40-01T1... Front view using example of device variants SPIDER-PL-40... SPIDER-PL-40-08T1... LED display elements for device status 6-pin, pluggable terminal block for power supply and signal contact 3 ... 6 4 × RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections USB interface Rail lock gate for DIN rail mounting 9 ... - Page 15 SPIDER-PL-20-08T1... SPIDER-PL-20-06T1... SPIDER-PL-20-04T1 Front view using example of device variants SPIDER-PL-20... SPIDER-PL-20-08T1... (depending on the device variant) LED display elements for device status 6-pin, pluggable terminal block for power supply and signal contact LED display elements for port status depending on device variant ...
-
Page 16: Power Supply
Power supply You have the following options to supply your device with voltage: Power supply via a 6-pin terminal block A 6-pin terminal block is available for the power supply to the device. You will find more information here: See “Installing terminal blocks, switching on the supply voltage”... -
Page 17: Pin Assignments
100/1000 Mbit/s F/O port This port is an SFP slot. The 100/1000 Mbit/s F/O port offers you the ability to connect network components according to the IEEE 802.3 100BASE-FX/1000BASE- SX/1000BASE-LX standard. This port supports: 1000 Mbit/s full duplex when using a Gigabit Ethernet SFP transceiver ... -
Page 18: Display Elements
Display elements After the supply voltage is switched on, the device performs a self-test. During this process, various LEDs light up. 1.6.1 Device state These LEDs provide information about conditions which affect the operation of the whole device. Display Color Activity Meaning Power Supply voltage —... -
Page 19: Port State
1.6.2 Port state These LEDs display port-related information. LS/DA LS/DA Color Activity Meaning (data rate) — None Device detects an invalid or missing link Yellow Flashes 1 time a period 10 Mbit/s connection Yellow Flashing 2 times a 100 Mbit/s connection period Yellow Flashes 3 times a... -
Page 20: Configuration Interface
Configuration interface USB interface The USB interface allows you to connect the a storage medium. This is for transfering configuration data. The USB interface has the following properties: Connectors: type A Supports the USB master mode Supports USB 2.0 ... -
Page 21: Signal Contact
Signal contact The potential-free signal contact (relay contact, closed circuit) reports through a break in contact: The failure of at least one supply voltage. The device is not operational. Connection failure to at least one port. The link state can be masked for each port using the configuration. In the state of delivery, link monitoring is inactive. -
Page 22: Installation
Installation The devices have been developed for practical application in a harsh industrial environment. On delivery, the device is ready for operation. Perform the following steps to install and configure the device: Checking the package contents Mounting the device ... -
Page 23: Mounting The Device
Mounting the device You have the following options for mounting your device: Installing the device onto the DIN rail Mounting on a flat surface 4.2.1 Installing the device onto the DIN rail Prerequisite: The device is for mounting on a 35 mm DIN rail in accordance with DIN EN 60715. -
Page 24: Mounting On A Flat Surface
4.2.2 Mounting on a flat surface inch 57,5 2.26 1.65 24,25 0.95 35,75 1.41 inch 87,5 3.44 2.83 54,25 2.14 65,75 2.59 Proceed as follows: Attach the wall mounting plate to a flat surface of the wall using screws. You will find the dimensions necessary for mounting the device in the illustration. -
Page 25: Grounding The Device
Grounding the device Prerequisite: Use a wire diameter for the ground conductor that is no smaller than the diameter of the supply voltage connection, however of at least 0.5 mm² (AWG20). Proceed as follows: Ground the device via the ground screw. The grounding screw is located on the topside as shown in the illustration. -
Page 26: Installing An Sfp Transceiver (Optional)
Installing an SFP transceiver (optional) Prerequisite: Use only Hirschmann SFP transceivers which are suitable for usage with the device. See “Accessories” on page 48. Proceed as follows: Remove the protection cap from the SFP transceiver. Push the transceiver with the lock closed into the slot until it latches in. -
Page 27: Connecting The Terminal Block
Connecting the terminal block The supply voltage can be connected redundantly. Both inputs are uncoupled. There is no distributed load. With redundant supply, the power supply unit with the higher output voltage supplies the device on its own. The supply voltage is electrically isolated from the housing. WARNING ELECTRIC SHOCK Connect only a supply voltage that corresponds to the type plate of your... -
Page 28: Operating The Device
Operating the device Perform the following steps to start up the device: Installing terminal blocks, switching on the supply voltage Connecting data cables 4.6.1 Installing terminal blocks, switching on the supply voltage By connecting the supply voltage via the terminal block, you start the operation of the device. - Page 29 See table 2 on page 31. Prerequisite: Install the Switch Programming Tool on your computer. You can download the software for free on the internet from the Hirschmann product pages: www.hirschmann.com/en/QR/SPIDER-PL-Downloads . Proceed as follows: Connect a storage medium to your PC.
- Page 30 Modify the parameters in the highlighted areas according to your requirements. Save the configuration file to the storage medium. Disconnect the storage medium from your PC. You have changed the settings according to your requirements. Transfer the configuration data to your device by following these steps: ...
- Page 31 Parameter Values Default values Comment global PSU alarm PSU 1/2 enabled / disabled PSU 1 / 2 enabled Aging time Aging time in s 300 s QoS 802.1p mapping VLAN Priority 0 ... 7 VLAN Priority Traffic Class Traffic Class 0 ... 3 QoS DSCP mapping DSCP value 0 ...
- Page 32 per TP port Autonegotiation enabled / disabled enabled Speed 100 Mbit/s, 10 Mbit/s 100 Mbit/s Only if autonegotiation is disabled, no forced mode 1000 Mbit/s Duplex mode FDX / HDX Only if autonegotiation is disabled Autocrossing enabled / disabled enabled Only if autonegotiation is disabled MDI state MDI-X...
- Page 33 Configuration readout You have the option to read out the configuration using a storage medium. Proceed as follows: Create a text file in the root directory of the storage medium. Rename the text file to “ShowRunningConfiguration.txt”. Connect the storage medium to the device. ...
- Page 34 Monitoring the ambient air temperature Operate the device below the specified maximum ambient air temperature exclusively. See “General technical data” on page 38. The ambient air temperature is the temperature of the air at a distance of 2 in (5 cm) from the device. It depends on the installation conditions of the device, e.g.
- Page 35 Maintenance and service When designing this device, Hirschmann largely avoided using high-wear parts. The parts subject to wear and tear are dimensioned to last longer than the lifetime of the product when it is operated normally. Operate this device according to the specifications.
- Page 36 Disassembly Removing an SFP transceiver (optional) Proceed as follows: Pull the SFP transceiver out of the slot by means of the opened lock. Close the SFP transceiver with the protective cap. Installation SPIDER-PL Release 03 08/2016...
- Page 37 Removing the device WARNING ELECTRIC SHOCK Disconnect the grounding only after disconnecting all other cables. Failure to follow these instructions can result in death, serious injury, or equipment damage. Proceed as follows: Disconnect the data cables. Disable the supply voltage. ...
-
Page 38: Technical Data
Technical data General technical data Dimensions SPIDER-PL-20... See “Dimension drawings” on W × H × D page 39. SPIDER-PL-40... Power supply Rated voltage range DC 9.6 V DC ... 32 V DC 9.6 V DC ... 60 V DC Rated voltage range AC 18 V AC ... - Page 39 Dimension drawings inch SPIDER-PL-20-08T1... SPIDER-PL-20-04T1... SPIDER-PL-20-06T1... Figure 1: Dimensions of device variants SPIDER-PL-20... Installation SPIDER-PL Release 03 08/2016...
- Page 40 inch SPIDER-PL-40-01T1... SPIDER-PL-40-08T1... SPIDER-PL-40-05T1... Figure 2: Dimensions of device variants SPIDER-PL-40... Installation SPIDER-PL Release 03 08/2016...
- Page 41 EMC interference emission Standard Merchant Navy Railway Sub-station applications applications applications (trackside) Radiated emission EN 55022 Class A Class A Class A Class A GL Guidelines — EMC 1 — — FCC 47 CFR Part 15 Class A Class A Class A Class A EN 61000-6-4...
- Page 42 EMC interference immunity Standard Marine Railway Sub-station applications applications applications applications (trackside) Electromagnetic field EN 61000-4-3 10 V/m 10 V/m 20 V/m 10 V/m IEEE 1613 — — — 35 V/m Fast transients (burst) EN 61000-4-4 Supply connection ± 2 kV ±...
- Page 43 Stability Standard Marine Railway Sub-station applications applications applications applications (trackside) IEC 60068-2-6, test Fc Vibration 5 Hz ... 8.4 Hz with 2 Hz ... 13.2 Hz — 2 Hz ... 9 Hz with 0.14 in. (3.5 mm) with 0.12 in. (3 mm) amplitude 0.04 in.
- Page 44 Network range Note: The line lengths specified for the transceivers apply for the respective fiber data (fiber attenuation and BLP/dispersion). Product Wave Fiber System Example Fiber code length attenuatio for F/O attenuatio dispersion M-SFP-... line length -SX/LC... MM 850 nm 50/125 µm 0-7.5 dB 0-550 m...
- Page 45 Product Wave Fiber System Example Fiber BLP/ code length attenuatio for F/O line attenuation dispersion M-FAST- length SFP-... -MM/LC... MM 1310 nm 50/125 µm 0-8 dB 0-5 km 1.0 dB/km 800 MHz×km -MM/LC... MM 1310 nm 62.5/125 µm 0-11 dB 0-4 km 1.0 dB/km 500 MHz×km...
-
Page 46: Scope Of Delivery
Power consumption/power output Device name Maximum power Maximum power consumption output SPIDER-PL-20-01.....HH-.. 3.8 W 13.1 BTU(IT)/h SPIDER-PL-20-01.....HV-.. 4.4 W 15.1 BTU(IT)/h SPIDER-PL-20-04.....HH-.. 4.3 W 14.7 BTU(IT)/h SPIDER-PL-20-04.....HV-.. 4.9 W 16.7 BTU(IT)/h SPIDER-PL-20-05.....HH-.. 2.4 W 8.0 BTU(IT)/h SPIDER-PL-20-05.....HV-.. 3.0 W 10.4 BTU(IT)/h SPIDER-PL-20-06.....HH-.. - Page 47 Order number Device Order number SPIDER-PL-20-01T1M29999TZ9HHHH 942-141-022 SPIDER-PL-20-01T1S29999TZ9HHHH 942-141-023 SPIDER-PL-20-04T1M29999TZ9HHHH 942-141-024 SPIDER-PL-20-04T1M49999TZ9HHHH 942-141-025 SPIDER-PL-20-04T1S29999TZ9HHHH 942-141-026 SPIDER-PL-20-05T1999999TZ9HHHH 942-141-016 SPIDER-PL-20-06T1Z6Z6Z6TZ9HHHH 942-141-027 SPIDER-PL-20-07T1M2M299TZ9HHHH 942-141-030 SPIDER-PL-20-07T1S2S299TZ9HHHH 942-141-031 SPIDER-PL-20-08T1M29999TZ9HHHH 942-141-028 SPIDER-PL-20-08T1999999TZ9HHHH 942-141-017 SPIDER-PL-20-08T1S29999TZ9HHHH 942-141-029 SPIDER-PL-40-01T1O69999TZ9HHHH 942-141-033 SPIDER-PL-40-04T1O69999TZ9HHHH 942-141-034 SPIDER-PL-40-05T1999999TZ9HHHH 942-141-019 SPIDER-PL-40-08T1999999TZ9HHHH 942-141-020 Installation SPIDER-PL Release 03 08/2016...
- Page 48 942 194-002 SFP-FAST-SM/LC 942 195-001 SFP-FAST-SM/LC EEC 942 195-002 a. You will find further information on the certificates on the Internet on the Hirschmann product pages (www.hirschmann.com). Bidirectional Gigabit Ethernet SFP transceiver Order number M-SFP-BIDI Type A LX/LC EEC 943 974-001...
- Page 49 M-SFP-LH/LC 943 042-001 M-SFP-LH/LC EEC 943 898-001 M-SFP-LH+/LC 943 049-001 SFP-GIG-LX/LC 942 196-001 SFP-GIG-LX/LC EEC 942 196-002 a. You will find further information on the certificates on the Internet on the Hirschmann product pages (www.hirschmann.com). Installation SPIDER-PL Release 03 08/2016...
- Page 50 If your device has a shipping approval according to Germanischer Lloyd, you find the approval mark printed on the device label. You will find out whether your device has other shipping approvals on the Hirschmann website under www.hirschmann.com in the product information.
- Page 51 Further Support Technical Questions For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You will find the addresses of our partners on the Internet at http://www.hirschmann.com. A list of local telephone numbers and email addresses for technical support directly from Hirschmann is available at https://hirschmann-support.belden.eu.com.
