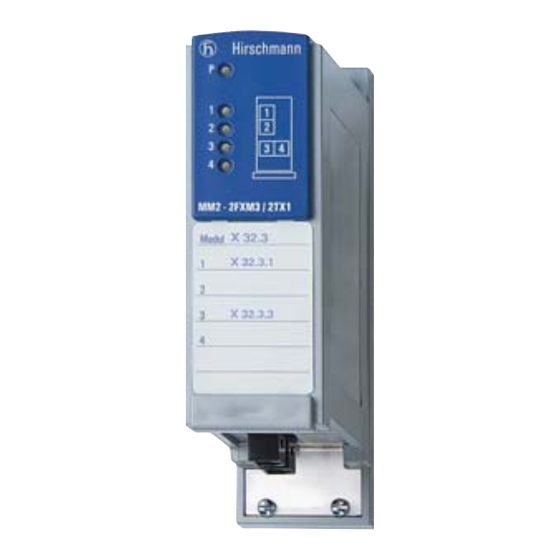

Hirschmann MM2-2FXM3/2TX1 Description And Operating Instructions

Description and Operating Instructions
Industrial ETHERNET Modular Industrial
Communication Equipment
MM2-2FXM3/2TX1 MM2-4TX1
MM3-2AUI MM3-2FXM4/2TX1
MM3-2FXS2/2TX1
MM3-2FXM2/2TX1
MB-2T expansion module
Hirschmann. Simply a good Connection.
MM4-4TX/SFP MM2-2FLM4
MM2-2FXP4
MM3-1FXM2/3TX1 MM2-4FXM3
MM3-1FXL2/3TX1
MM3-1FXS2/3TX1
MM3-4TX5 MM2-2FXM2
MM2-2FXS2
MM3-4FXM2 MM3-4FXM4
MM3-4FXS2 MM3-4FLM4
MM3-4FXP4
MICE

Media modules

The Modular Industrial Communication
Equipment, MICE, is a modular network
component. It was developed particularly
for use in an industrial environment.
The media modules described in this
instructions are the interface of the device
to the LAN and can be plugged onto the fol-
lowing basic modules of the MICE switch:
– MS2108-2 (MICE 2000)
– MS3124-4 (MICE 3000)
– MS4128-5 (MICE 4000 / Power MICE)
– MS20-... and MS30-...
The MB-2T expansion module allows you to
add 2 slots to the MS20-1600, MS30-1602,
MS3124-4, MS4128-5 MICE switch basic
module for installing media modules.
MICE allows you to construct switched
Industrial ETHERNET networks that con-
form to the IEEE 802. and 802.3u standard
using copper wires or optical fibers in a bus
or ring topology.
In the
– User manual „Installation"
– User manual „Basic configuration"
– User manual „Redundancy configuration"
– Reference manual „Web-based Interface"
– Reference manual „Command Line
Interface"
you will find a detailled description of the
MICE and further information.
